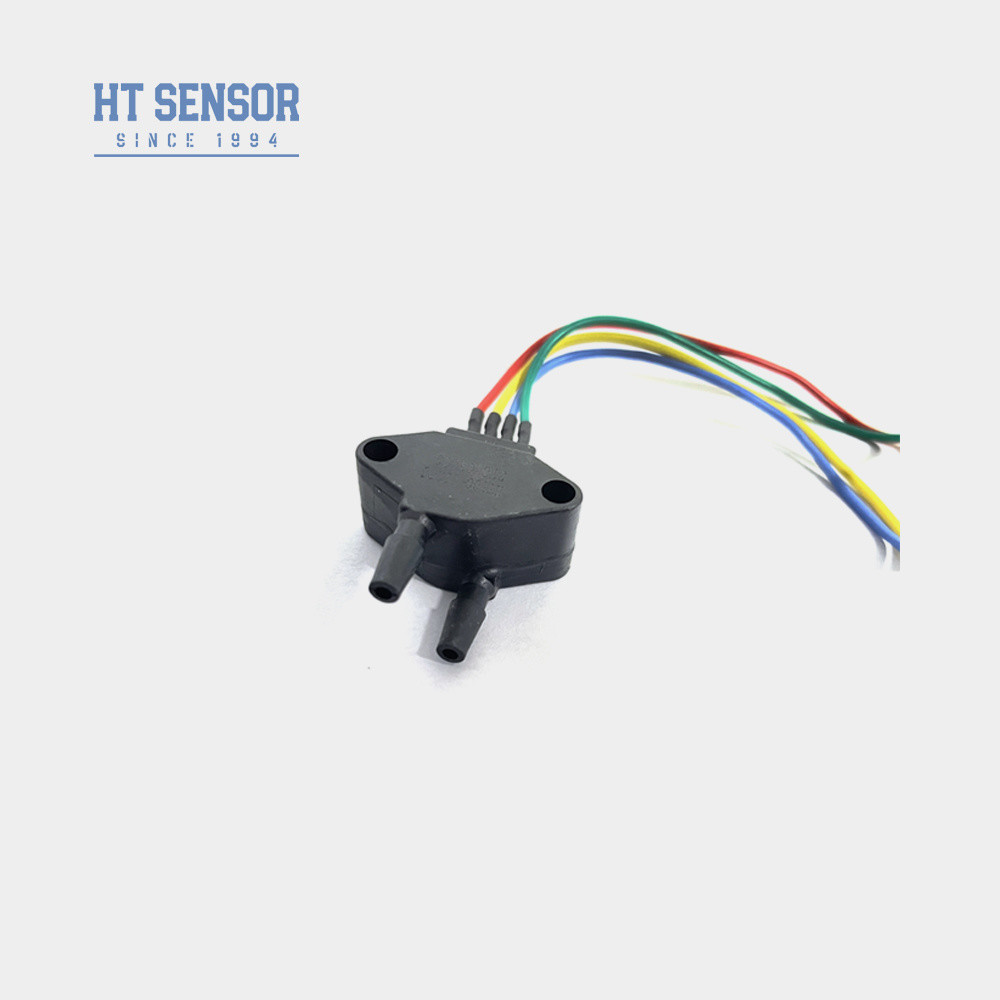

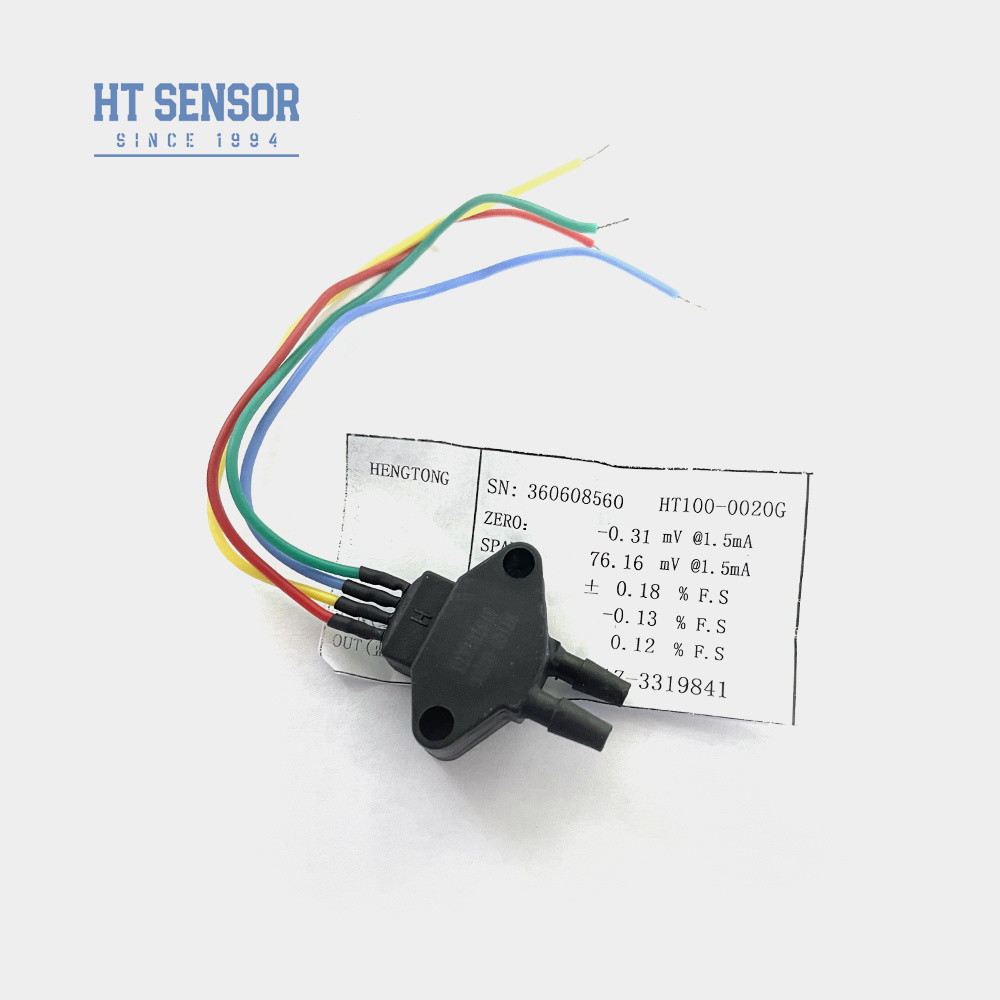

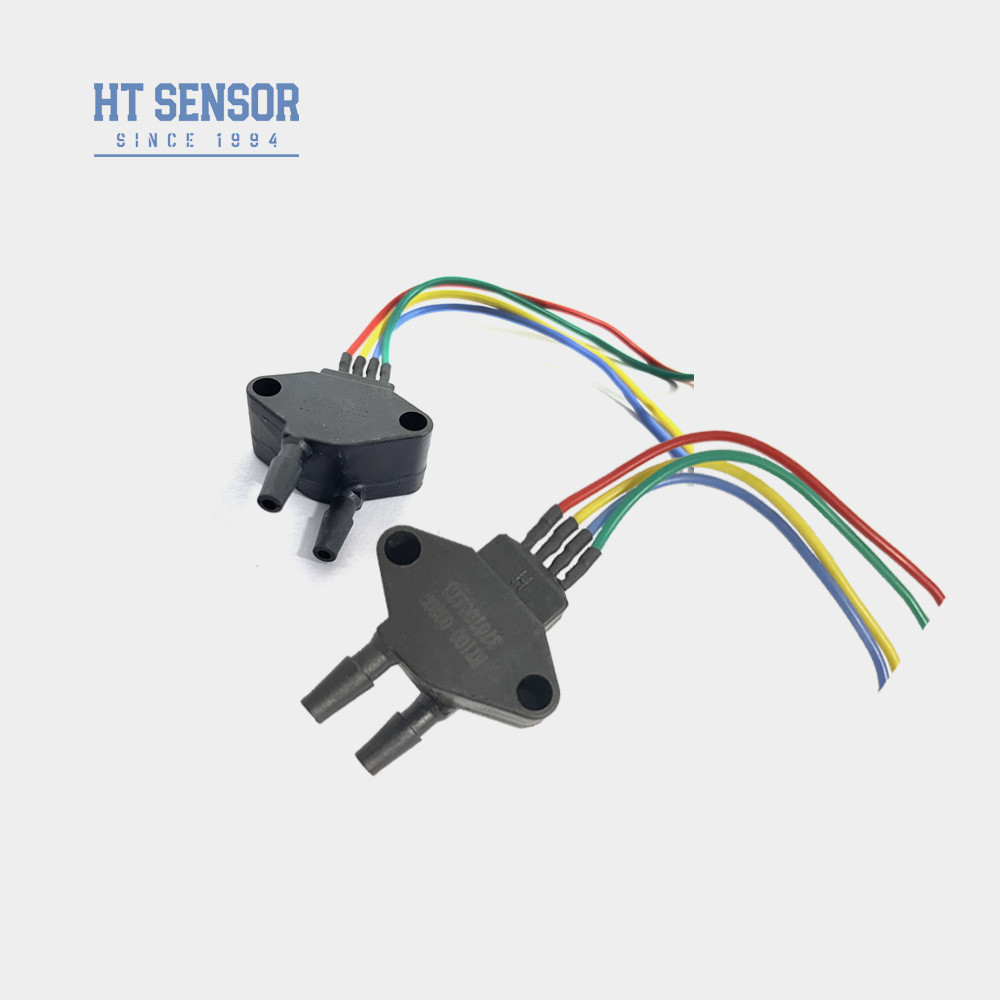

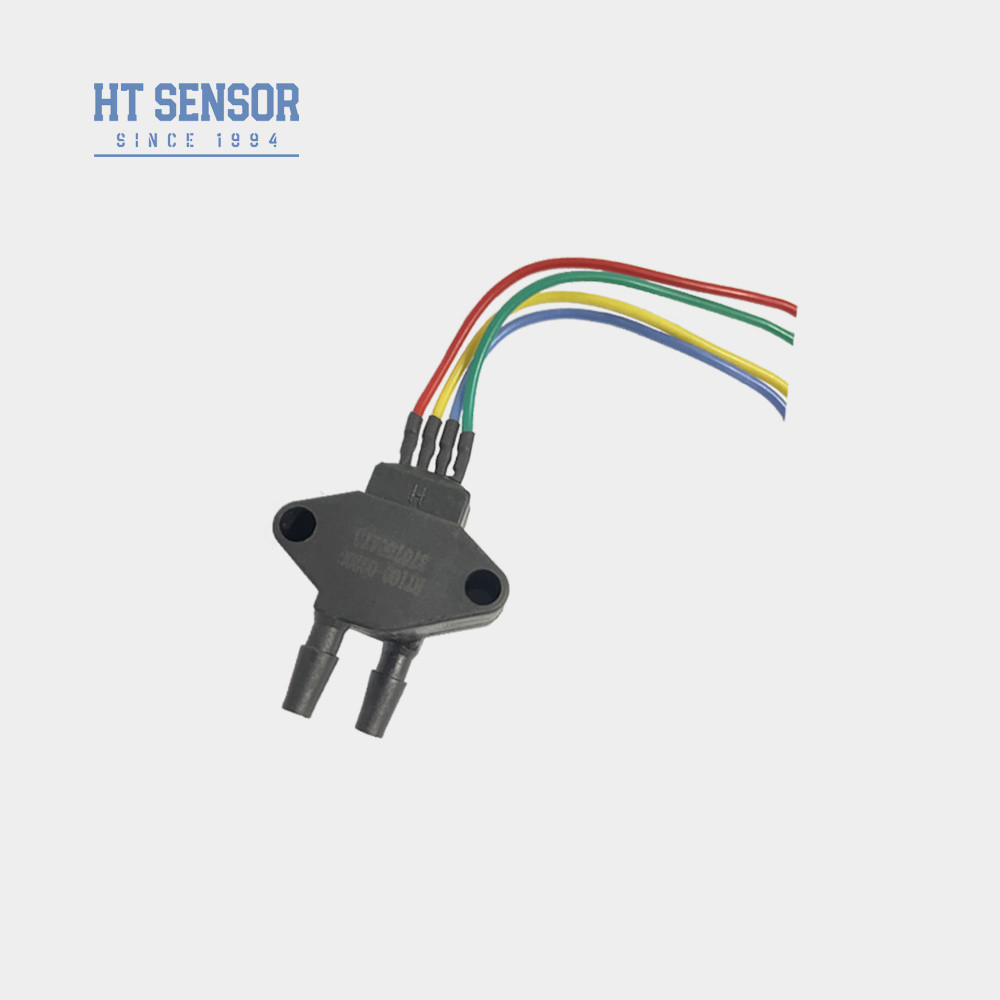

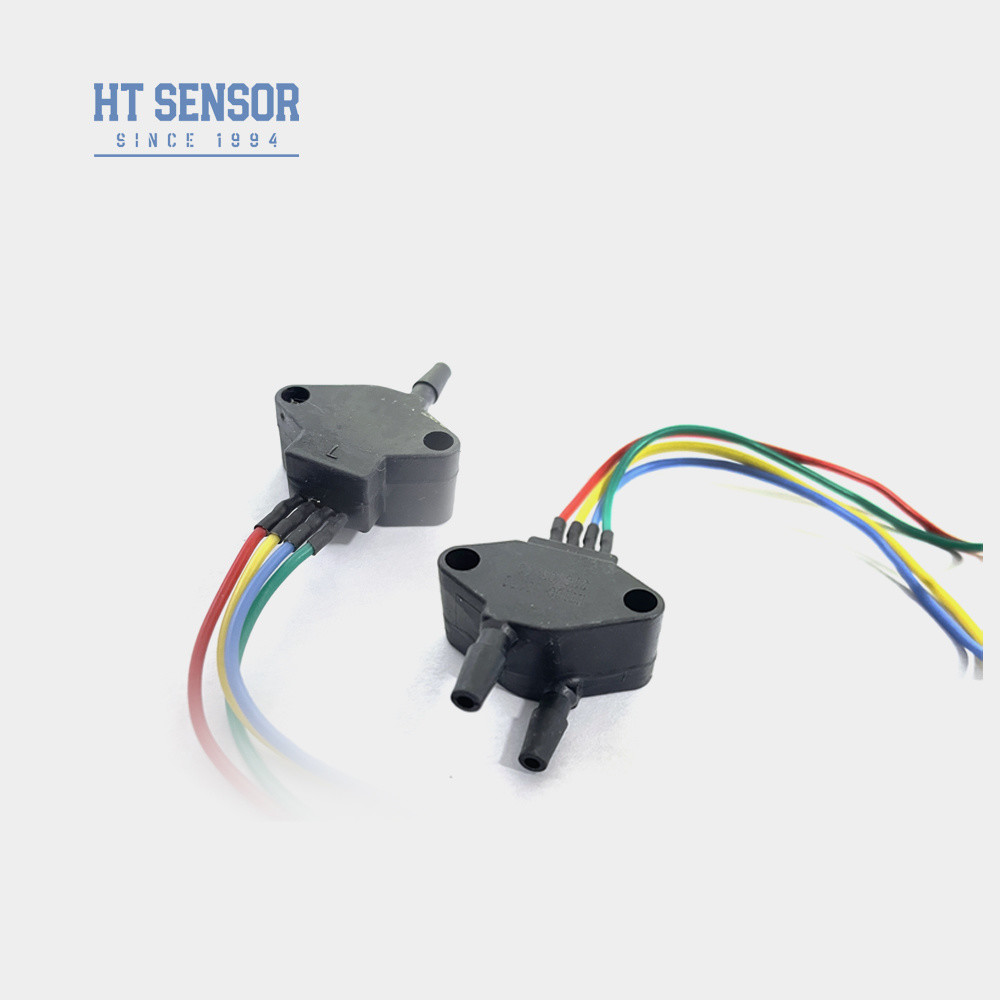

Sensor Tekanan Diferensial Plastik Bertenaga 1.5mA Sensor Level Diferensial
Product Details
| Model NO.: | HT100 | Jenis kabel: | Empat Kawat |
|---|---|---|---|
| Media pengukur: | Gas dan udara | klor: | Hitam |
| ACC: | 0,2%FS | Output: | sinyal mv |
| Memasok: | 1,5mA | Merek dagang: | HENGTONG |
| Kode Hs: | 9026209090 | Jenis: | Sensor Tekanan Piezoresistif |
| Jenis sinyal keluaran: | Tipe Analog | Bahan: | Baja tahan karat |
| Menyoroti |
1.5mA plastic differential pressure sensor,differential level sensor with warranty,pressure transmitter sensor low power |
||
Product Description
Deskripsi Produk
HT100 adalah perangkat penginderaan tekanan berkinerja tinggi berdasarkan teknologi silikon difusi canggih, yang menampilkan desain enkapsulasi plastik yang kuat.Sensor ini memberikan akurasi pengukuran yang luar biasa dan stabilitas jangka panjang, dirancang khusus untuk pemantauan yang tepat dari gas kering, non-korosif.
Fitur Produk:
- Jangkauan pengukuran yang luas, 0~10KPa~2Mpa
- Keandalan tinggi dan stabilitas yang sangat baik
- Teknologi enkapsulasi TO8
- Aplikasi di bidang kedirgantaraan
Aplikasi:
- Pengukuran tekanan gas kering, tidak korosif
- Sistem kontrol pneumatik
- Teknik Biomedis untuk aplikasi medis
- HVAC (Pemanasan, Ventilasi, dan AC)
- Pengujian ruang angkasa untuk tujuan terkait penerbangan
- Sumber Daya: ≤2mA DC (Biasa 1,5mA DC)
- Impedansi masukan:3KΩ~6KΩ
- Impedansi output:2.5KΩ~6KΩ
- Koneksi Listrik:Pin Kovar berlapis emas atau kabel suhu tinggi 100 mm
| Parameter kinerja: | ||||||
| Jangkauan pengukuran | Gauge ((G) | 10KPa, 20KPa | ||||
| Jenis | Maksimal | Satuan | ||||
| Linearitas | ± 0.15 | ± 0.3 | % F.S | |||
| Kemungkinan diulang | 0.05 | 0.1 | % F.S | |||
| Hysteresis | 0.05 | 0.1 | % F.S | |||
| Zero Offset Output | 0±1 | 0 ± 2 | mV | |||
| Output Skala Penuh | ≤ 20KPa | 50 ± 10 | 50 ± 30 | mV | ||
| ≥35kPa | 100 ± 10 | 100 ± 30 | mV | |||
| Zero Offset Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | ||
| ≥35kPa | ± 0.5 | ± 1 | % F.S | |||
| Skala penuh Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | ||
| ≥35kPa | ± 0.5 | ± 1 | % F.S | |||
| Temp Kompensasi. | ≤ 20KPa | 0 ~ 50 | oC | |||
| ≥35kPa | 0 ~ 70 | oC | ||||
| Suhu operasi | -20 ~ 80 | oC | ||||
| Suhu penyimpanan | -40 ~ 125 | oC | ||||
| Beban Terlalu Diizinkan | Ambil nilai yang lebih kecil antara 3 kali skala penuh atau 4MPa | |||||
| Tekanan ledakan | 5X skala penuh | |||||
| Stabilitas jangka panjang | 0.2 % | F.S./Tahun | ||||
| Bahan diafragma | 316L | |||||
| Resistensi Isolasi | ≥ 200MΩ 100VDC | |||||
| Getaran | Tidak ada perubahan dalam kondisi 10gRMS, 20Hz hingga 2000Hz | |||||
| Kejutan | 100 g, 11 ms | |||||
| Waktu Tanggapan | ≤1ms | |||||
| Berat badan | ~ 12,5 g | |||||
| Parameter diuji dalam kondisi berikut: arus konstan 1,5mA dan suhu lingkungan 25°C | ||||||
| Tips pemesanan |
- 1Saat digunakan, perhatikan masalah penyegelan pada koneksi sendi keran.
- 2Media yang akan diuji adalah gas kering dan tidak korosif dan tidak boleh digunakan untuk menguji cairan.
- 3Jika ada perubahan pada pin, silakan lihat label pada kabel inti yang sebenarnya.
