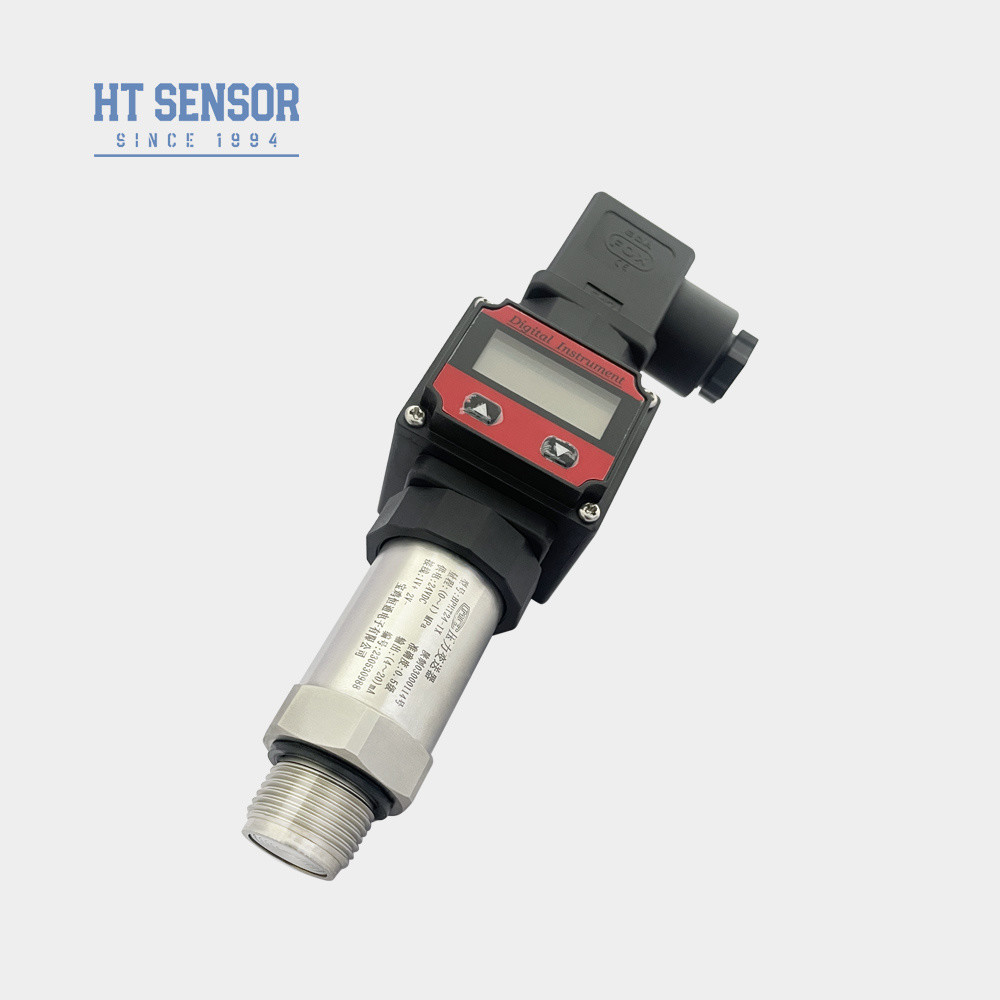

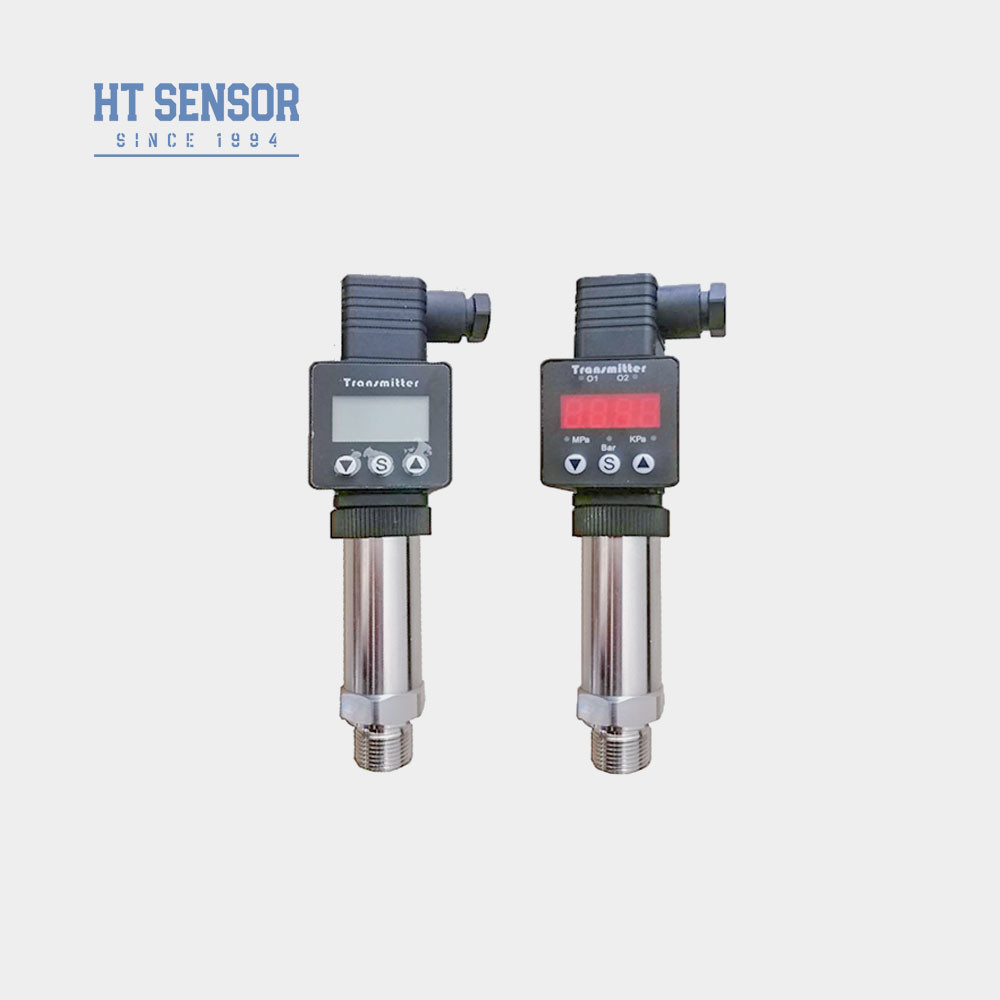

Led Lcd Display Flush Diaphragm Pressure Sensor Smart Type Pressure Transmitter
Product Details
| Nomor model.: | BPHT24-IX | Tingkat akurasi: | 0,5%FS |
|---|---|---|---|
| Rentang Tekanan: | -100kpa...0kpa ~10kpa...35MPa | Berat badan: | ~0,2kg |
| Bahan Perumahan: | 304 SS | Jenis tekanan: | Gauge/Absolute/Dengan segel |
| Media pengukur: | Udara dan Cairan | Peringkat IP: | IP65 |
| Pengaturan khusus: | <i>Available |</i> <b>Tersedia |</b> <i>Customized Request</i> <b>Permintaan Disesuaikan</b> | Jenis sinyal keluaran: | Analog/Digital |
| Menyoroti |
Lcd Display Flush Sensor Tekanan Diafragma RoHs,Led Display Smart Type Pressure Transmitter RoHs,Lcd Display Smart Type Pressure Transmitter |
||
Product Description
Led Lcd Display Flush Diaphragm Tekanan Sensor Smart Tekanan Transmitter
BPHT24-IX PresureTPengirim uang
Pengenalan Smart Pressure Transmitter:
BPHT24-IX Pressure Transmitter Sirkuit pengolahan sinyal terletak di dalam rumah baja tahan karat, mengubah sinyal sensor menjadi sinyal output standar.Transmitter tekanan ini terutama digunakan di tempat-tempat di mana kondisi sanitasi yang tinggi diperlukan, memastikan pengukuran tekanan yang dapat diandalkan dan akurat di lingkungan higienis. Sensor tekanan diafragma flush dilengkapi dengan layar tampilan kristal cair,yang dapat menampilkan secara visual nilai tekanan yang diukur saat ini, yang nyaman bagi pengguna untuk mendapatkan informasi tekanan real-time
Fitur produk:
1. Berbagai pilihan antarmuka tekanan
2. Dirancang untuk aplikasi higienis untuk mencegah skala menengah
3. Keakuratan tinggi dengan struktur stainless steel sepenuhnya
4Mudah dibersihkan.
Aplikasi:
1. Cocok untuk pengukuran gas dan cairan tidak korosif dengan 316L
2. Ideal untuk perlindungan lingkungan dan industri kimia
3. Digunakan dalam industri maritim dan penerbangan
| Parameter Kinerja | |
| Jangkauan pengukuran | 0~35Kpa...~20MPa |
| Jenis Tekanan | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Overload | ≤ 1,5 kali dari kisaran nominal |
| Keakuratan @ 25oC | ±0,25% (Biasa) ±0,5% (Maximum) |
| Repeatability& Hysteresis | 0.02% F.S. (Typical) 0.05% F.S. (Max.) |
| Stabilitas Jangka Panjang | ± 0,1% F.S./Tahun (Typical) ± 0,2% F.S./Tahun (Max.) |
| Pergeseran suhu titik nol | ± 0,02% F.S/oC ((≤ 100KPa) ± 0,01% F.S/oC ((> 100KPa) |
| Pergeseran Suhu Skala Penuh | ± 0,02% F.S/oC ((≤ 100KPa) ± 0,01% F.S/oC ((> 100KPa) |
| Tanggapan Frekuensi | 2.4Khz |
| Suhu Kompensasi | 0-70oC ((≤10mpa, dapat disesuaikan) |
| Suhu operasi | -20oC ~ 80oC |
| Suhu penyimpanan | -40oC ~ 120oC |
| Getaran | 10g,55Hz ~ 2kHz |
| Bahan perumahan | 304, 316L |
| Bahan diafragma | 316L |
| Resistensi Isolasi | 100MΩ 100VDC |
| Klasifikasi tahan ledakan | Ex db IIC T6 Gb |
| Peringkat Perlindungan | IP65 |
| Segel O-Ring | Karet fluoro |
| Berat badan | ~0,2kg |
|
Sinyal output |
Tegangan Pasokan | Jenis output |
| 4 ~ 20mA | 12 ~ 30VDC | 2/3/4wIre |
| 0/1 ~ 5V | ||
| 0/1~ 10V |
| Utline Konstruksi | |
| Dimensi |  |
| Perintah Panduan | ||||||||
| BP93420XX | Transmitter Tekanan | |||||||
| Kode | Desain Konstruksi | |||||||
| IX (dalam bahasa Inggris) | Tampilan Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| Jangkauan pengukuran | 0~35Kpa...~20MPa | |||||||
| (0-X) Kpa atau MPa | X: Menunjukkan rentang pengukuran yang sebenarnya | |||||||
| Kode | Sumber Daya | |||||||
| D1 | 24VDC | |||||||
| D3 | lainnya | |||||||
| Kode | Sinyal output | |||||||
| S1 | 4 ~ 20mADC | |||||||
| S2 | 1 ~ 5VDC | S6 | 0 ~ 10VDC | |||||
| Kode | Koneksi Tekanan | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | 1/2NPT | |||||||
| Kode | Koneksi Listrik | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Output Kabel yang Disegel | |||||||
| B4 | 2088 Casing industri | |||||||
| B5 | 2088 Casing industri dengan tampilan | |||||||
| B6 | lainnya | |||||||
| Kode | Jenis Tekanan | |||||||
| G | Tekanan pengukur | |||||||
| A | Tekanan mutlak | |||||||
| S | Tekanan referensi tertutup | |||||||
