Multiple Type Input Electronic Pressure Switch Electronic Pressure Gauge Suhu
Product Details
| Nomor model.: | BPK-IIIN | Aplikasi: | Industri |
|---|---|---|---|
| Struktur: | Pengukur Tampilan | Jenis koneksi: | Tidak. |
| fungsi: | Tipe indikasi lokal, dikendalikan oleh sinyal listrik | Struktur Instalasi: | Tidak. |
| Fitur Medium Pengukuran: | Tidak. | Menunjukkan tekanan referensi: | Pengukur Tampilan |
| Paket Pengangkutan: | Pengemasan Ekspor Standar dengan Karton | Spesifikasi: | Sensor tekanan silikon |
| Merek dagang: | sensor HT | Asal usul: | Baoji, Tiongkok |
| Kode HS: | 9026209090 | Menyediakan kemampuan: | 2000 pcs/bulan |
| Layanan purna jual: | on line | Jaminan: | 2 tahun |
| Rentang pengukuran: | Pengukur Tekanan Menengah | Jenis: | Tampilan digital |
| Ketepatan: | 1 | Tampilan: | digital |
| Sampel: | <i>US$ 60/Piece 1 Piece(Min.Order) |</i> <b>US$ 60/Potongan 1 Buah(Pesanan Minimal) |</b> <i>Request | Pengaturan khusus: | <i>Available |</i> <b>Tersedia |</b> <i>Customized Request</i> <b>Permintaan Disesuaikan</b> |
| Model: | 1 | ||
| Menyoroti |
Multiple Type Input Electronic Pressure Switch (Switch Tekanan Elektronik Masing-masing Tipe),RoHs penukar tekanan elektronik,Suhu alat pengukur tekanan elektronik |
||
Product Description
Multiple Type Input Pressure Display Gauge Pengukur Suhu
Deskripsi Produk
Bahan plastik hitam menampilkan instrumen dengan kontrol

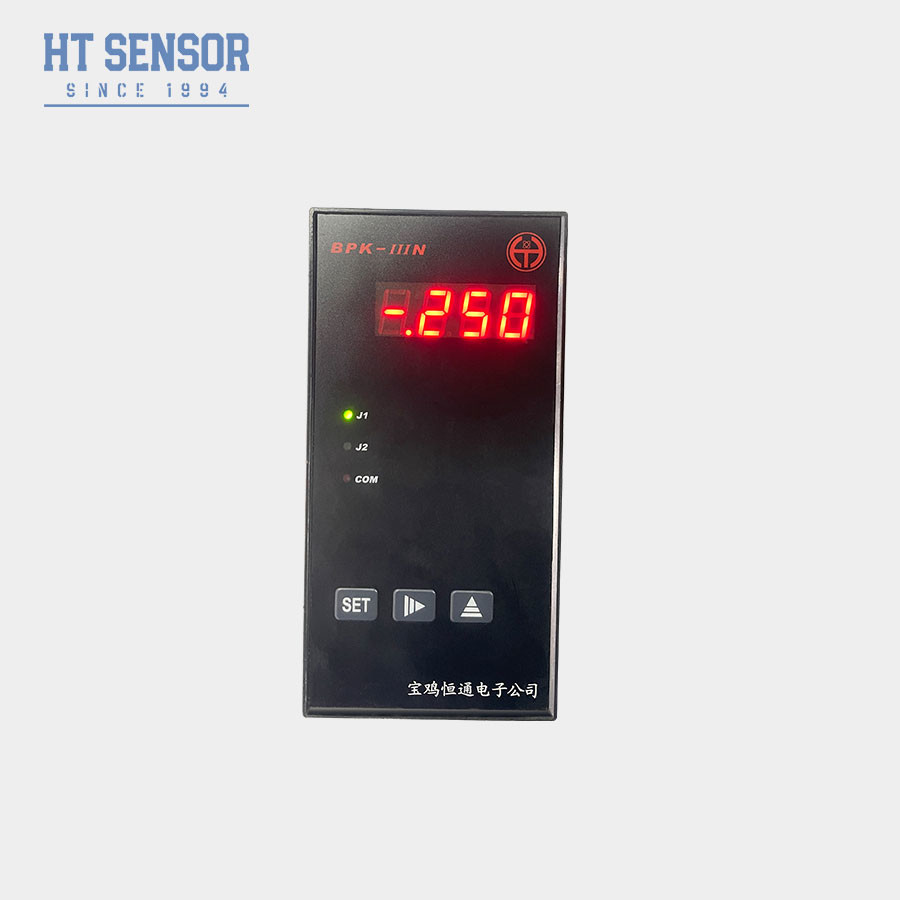

BPK-IIIN Pressure Gauge/Switch
Pengantar:
1. Berbagai RTD, Thermocouple atau sinyal input standar (lihat Tabel) dapat dipilih.
2. output transmisi terisolasi adalah resolusi 12 bit. lingkupnya dapat diatur.
3. Dua output relay, itu dapat diatur untuk tinggi / rendah, tipe tindakan alarm tinggi/tinggi-tinggi atau rendah/rendah-rendah.
Spesifikasi
1. Tegangan pasokan:220VAC /24VDC(±10%);
2. suhu lingkungan: 0 ~ 50oC; kelembaban relatif: ≤ 85% gas non korosif;
3. Sinyal masukan, ruang lingkup tampilan dan parameter yang relevan: (lihat Tabel1)
Tabel 1
| Kode sinyal masukan | Sinyal masukan | Jangkauan Tampilan | Resolusi | Keakuratan | Impedansi masukan |
| 00 | T TC | 0 ~ 400oC | 1oC | 00,2% | 100 ribu |
| 01 | R TC | 0~1600oC | 1oC | 00,2% | 100 ribu |
| 02 | J TC | 0 ~ 1200oC | 1oC | 00,2% | 100 ribu |
| 03 | WRe3-WRe25 TC | 0 ~ 2300oC | 1oC | 00,2% | 100 ribu |
| 04 | B TC | 350 ~ 1800oC | 1oC | 00,2% | 100 ribu |
| 05 | S TC | 0~1600oC | 1oC | 00,2% | 100 ribu |
| 06 | K TC | 0~1300oC | 1oC | 00,2% | 100 ribu |
| 07 | E TC | 0 ~ 900oC | 1oC | 00,2% | 100 ribu |
| 08 | Pt100 RTD | -200 ~ 600,0oC | 0.1oC | 00,2% | (0,2mA) |
| 09 | Cu50 RTD | -50,0 ~ 150,0oC | 0.1oC | 00,2% | (0,2mA) |
| 10 | 0~375Ω tekanan jarak jauh | Batas cakupan rendah dan tinggi dapat ditetapkan dari -1999 sampai 9999 | Jangkauan tampilan adalah terus menerus dari -1999 sampai 9999 menggunakan sampel A/D 16bit | 00,2% | (0,2mA) |
| 11 | 0 ~ 75mV pemisah arus | 00,1% | 100 ribu | ||
| 12 | 0 ~ 30mV | 00,1% | 100 ribu | ||
| 13 | Sinyal standar 0 ~ 5V | 00,1% | 100 ribu | ||
| 14 | Sinyal standar 1 ~ 5V | 00,1% | 100 ribu | ||
| 15 | 0~10V sinyal standar | 00,1% | 100 ribu | ||
| 16 | 0 ~ 10 mA sinyal standar | 00,1% | 20Ω | ||
| 17 | Sinyal standar 0 ~ 20 mA | 00,1% | 20Ω | ||
| 18 | Sinyal standar 4 ~ 20 mA | 00,1% | 20Ω |
Tabel 2
| Transmisi sinyal output | Output saat ini | Ruang lingkup pengiriman | Tegangan terisolasi | Max. Apa yang terjadi? resolusi |
Keakuratan | Kapasitas beban | Tegangan sirkuit terbuka |
| 00 | 4 ~ 20 mA | Mengirim data dalam jangkauan ke sinyal arus standar | 1500V | 12 bit | 00,3% | ≤ 500Ω | 15V |
| 01 | 0 ~ 20mA |
Produk ini diproduksi dalam hanya 4 ~ 20 mA atau 0 sampai dua 20mA output sinyal arus.dapat disesuaikan dari produsen atau diri terhubung dengan 250 atau 500 ohm resistor untuk 1 ~ 5V atau 0 ~ 5V, 0 ~ 10V tegangan dan resistor (Catatan: presisi resistor secara langsung mempengaruhi presisi tegangan output transmisi).
5.Relay kapasitas kontak output:(lihat Tabel 3)
Tabel 3
| 250V/120V | 120V/48V | < 48V | Waktu hidup relay | ||||
| AC | DC | AC | DC | AC | DC | >100000 kali |
|
| Maks. arus (Resisi beban) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Maks. arus (Intuksi beban) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A | |
6. Dandaya eksternal DC24V/30mA. Ini dapat memasok daya ke pemancar
7. denganfungsi kompensasi suhu otomatisuntukSensor termokopel.
8. denganfungsi perlindungan pemutusan
| Model | Dimensi garis besar | Dimensi output panel ((mm) | Catatan |
| BPK-IIIS1 | 160×80×80 ((Horizontal)) | 152+0.8× 76+0.7 | |
| BPK-IIIS2 | 96×48×112 (horisontal) | 92+0.7×44+0.5 | |
| BPK-IIIN1 | 80×160×80 ((vertikal) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112 ((vertikal) | 44+0.5×92+0.7 | |
| BPK-IIIF1 | 96×96×112 (seperempat) | 92+0.7×92+0.7 | |
| BPK-IIIF2 | 48×48×108 (seperempat) | 44+0.5×44+0.5 | Dengan lampu alarm J2 tanpa relay J2 |
| BPK-IIIF3 | 72×72×112 | 67+0.7× 67+0.7 |
