Pengirim Indikator Suhu Hengtong 4 hingga 20 MA Pengirim Untuk Otomasi Industri
Product Details
| Nomor model.: | BT2Pengelolaan | Media pengukur: | Suhu |
|---|---|---|---|
| Peringkat IP: | IP65 | Disesuaikan: | Disesuaikan |
| Stabilitas: | ±0,2%FS/Tahun | suhu penyimpanan: | -40~100℃ |
| Suhu: | Disesuaikan | Paket Pengangkutan: | Kotak |
| Merek dagang: | HENGTONG | Asal usul: | Cina |
| Kode HS: | 9032100000 | Menyediakan kemampuan: | 2000 pcs/bulan |
| Kontak: | Kontak | Jenis sinyal keluaran: | Tipe Analog |
| Bahan Perumahan: | Alumina | Pengaturan khusus: | <i>Available |</i> <b>Tersedia |</b> <i>Customized Request</i> <b>Permintaan Disesuaikan</b> |
| Menyoroti |
Pengirim indikator suhu Hengtong,Transmitter Indikator Suhu 4Ma,4 sampai 20 Ma Transmitter Untuk Otomasi Industri |
||
Product Description

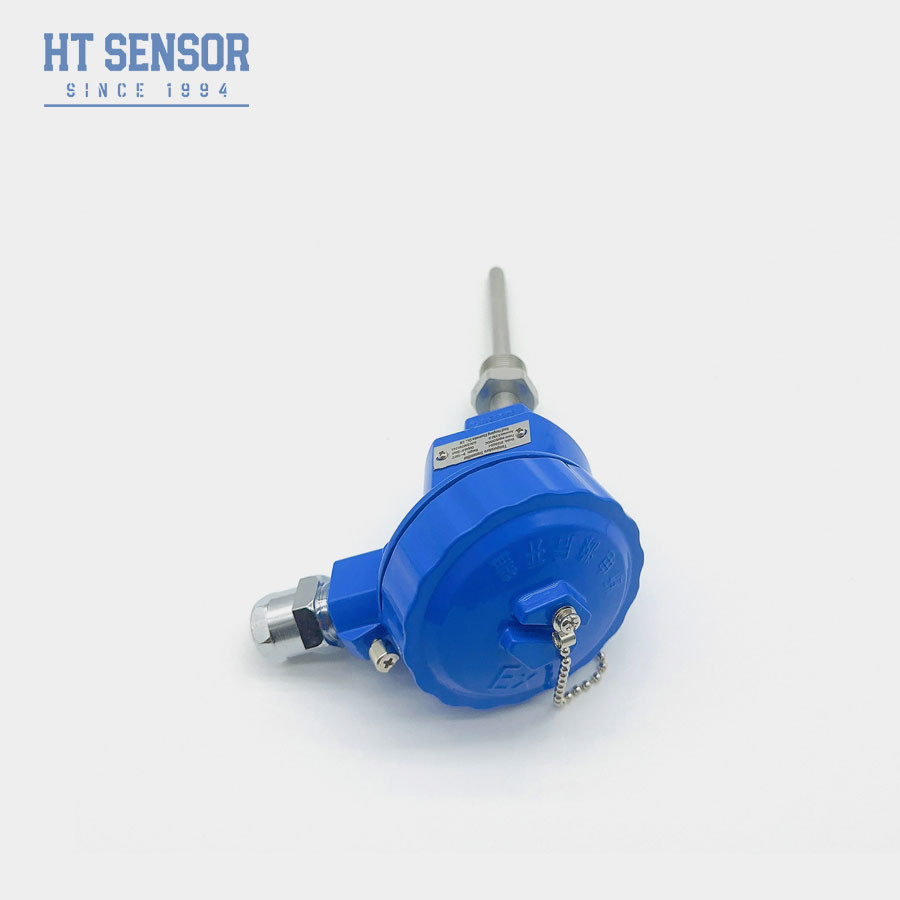

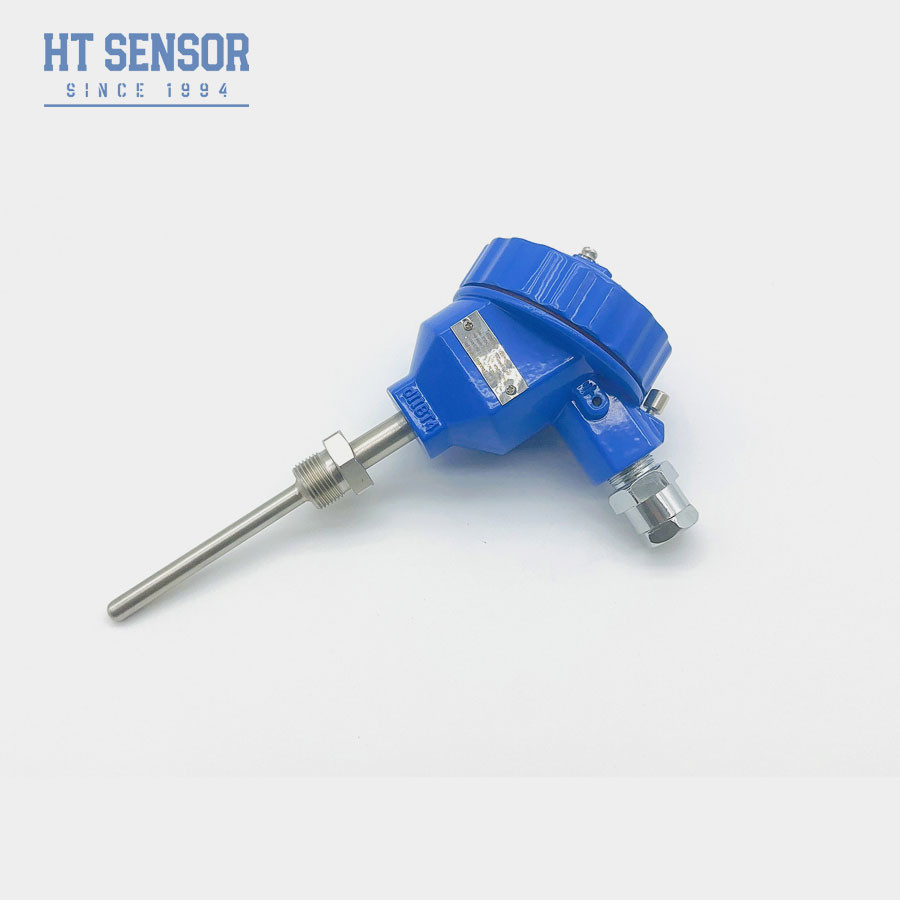

Hengtong 4-20mA PT100 Transmitter Sensor Suhu Untuk Otomasi Industri
BT1perdagangan Transmitter Indikator Suhu
Pengantar:
BT2Pengelolaan limbahadalah pemancar modul yang digunakan untuk mengubah sinyal dari sensor suhu PT100 menjadi sinyal output standar.
PT100 pemancar modul suhu adalah alat pengukuran dan kontrol suhu yang sangat berguna untuk berbagai aplikasi yang berbeda
Fitur Produk:
- Struktur baja tahan karat penuh, ketahanan korosi yang baik
- Output analog dan output digital keduanya tersedia untuk pemilihan
- Kotak terminal, 2088 LCD, atau tampilan LED tersedia untuk pemilihan
Aplikasi:
Otomatisasi industri:
Sistem HVAC:
Pengolahan makanan:
Peralatan medis:
Pesawat ruang angkasa:
| Parameter Kinerja | |
| Jangkauan pengukuran | -55 ~ 1200oC |
| Keakuratan @ 25oC | ± 0,5% (Typical) ± 1% (Max.) |
| Kemungkinan diulang | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Hysteresis | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Stabilitas Jangka Panjang | ± 0,2% F.S/tahun (Max.) |
| Suhu operasi | -30 ~ 80oC |
| Suhu penyimpanan | -40 ~ 100oC |
| Bahan perumahan | 1Cr18Ni9Ti |
| Bahan diafragma | 316L Baja tahan karat |
| Resistensi Isolasi | >=100MΩ@100VDC |
| Suhu maksimum | 120% dari kisaran suhu nominal |
| Peringkat Perlindungan | IP65 |
| Berat badan | ~ 0,5Kg |
| Desain Konstruksi | |
| Kotak terminal | |
| Perintah Panduan | |||||||
| BT1perdagangan | Transmitter Indikator Suhu | ||||||
| Kode | Desain Konstruksi | ||||||
| Aku | Kotak Terminal Biru | ||||||
| II | 2088 perumahan | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Jangkauan pengukuran | -55 ~ 1200oC | ||||||
| Kode | Sumber Daya | ||||||
| D1 | 24VDC | ||||||
| D2 | lainnya | ||||||
| Kode | Sinyal output | ||||||
| S1 | 4 ~ 20mADC | S4 | 0 ~ 10mADC | ||||
| S2 | 1 ~ 5VDC | S5 | 0 ~ 20mADC | ||||
| S3 | 0 ~ 5VDC | S6 | 0 ~ 10VDC | ||||
| Kode | Koneksi Tekanan | ||||||
| J1 | M27X2 Pria | ||||||
| J2 | lainnya | ||||||
| Kode | kedalaman penyisipan | ||||||
| L | Kedalaman penempatan yang sebenarnya | ||||||
