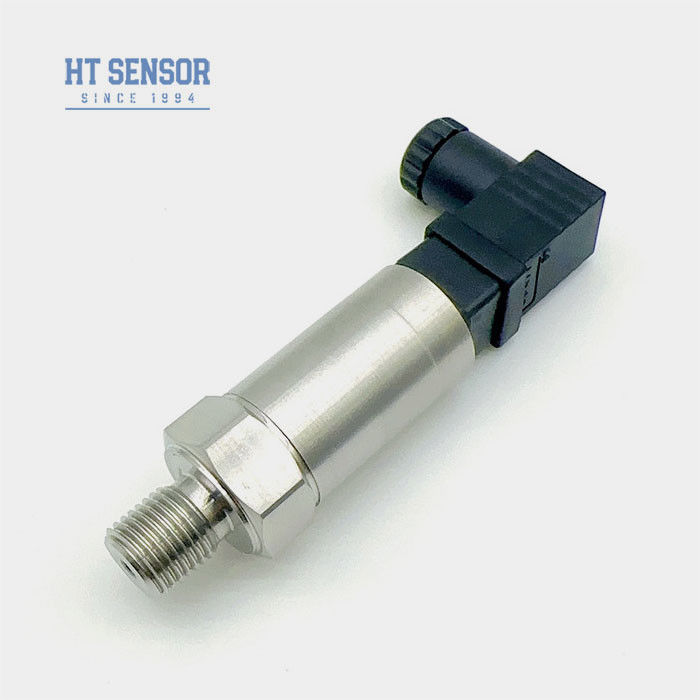

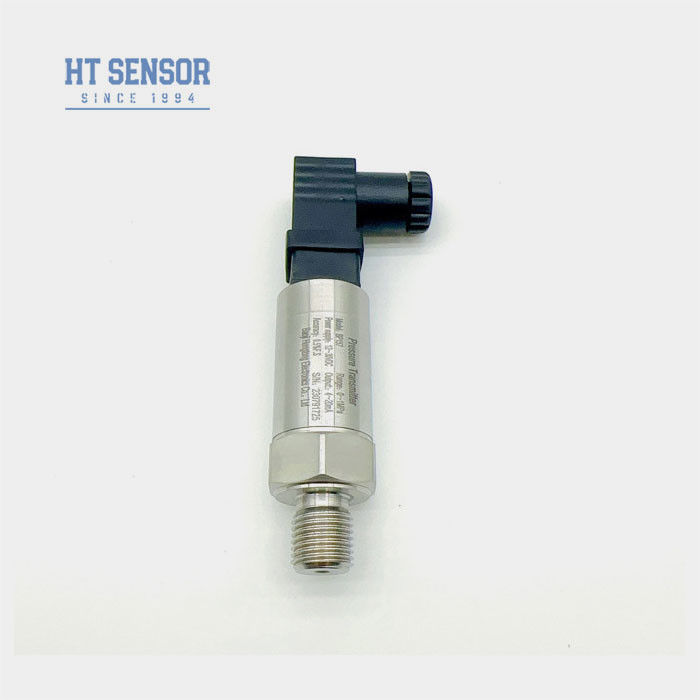

1/8NPT Silicon Pressure Transmitter Sensor Tekanan Tingkat Air Untuk Uji Tekanan Saluran
Product Details
| Nomor model.: | BP157 | Ketepatan: | ±0,5% |
|---|---|---|---|
| Jenis koneksi: | G1/4,1/4NPT, 1/8NPT | Sinyal Keluaran: | 4-20mA,0.5-4.5VDC |
| Sumber Daya: | 24VDC,5VDC | Jenis tekanan: | Tekanan pengukur,tekanan absolut,tekanan tertutup |
| Suhu proses: | -20 ℃ ~ 80 ℃ | Nama produk: | Sensor Pemancar Tekanan |
| Tingkat Perlindungan: | IP65 | Berat badan: | 0,2KG |
| Menyoroti |
1/8NPT Silicon Pressure Transmitter,Transmitter Tekanan Silikon untuk Pipeline,Sensor Tekanan Tingkat Air Untuk Saluran Pipa |
||
Product Description
Sensor Transmitter Tekanan Silikon Sensor Tingkat Air Untuk Uji Tekanan Saluran
BP157 pemancar tekanan
Pemasangan sensor pemancar tekanan:
BP15 seri pemancar tekanan menggunakan seri HT silikon tahan tekanan isolasi membran minyak-diisi inti sebagai elemen pengukuran sinyal.Sirkuit pemrosesan sinyal terletak di dalam rumah stainless steelproduk telah menjalani pengujian ketat dan penuaan screening komponen, produk setengah jadi,dan produk jadi untuk memastikan kinerja yang stabil dan andal.
Fitur produk:
- Desain yang kompak dan kuat
- Interferensi anti-elektromagnetik.
- Seluruhnya dilas tertutup
- Perlindungan IP65
- Sinyal output ganda
Aplikasi:
- Kompatibel dengan 316L stainless steel, gas dan cairan yang tidak korosif
- Bidang petrokimia dan industri lainnya
- Kompresor udara, peralatan vakum
- Sistem kontrol hidraulik dan pneumatik
Parameter kinerja:
| Jangkauan pengukuran | 0kPa 10kPa... 10MPa |
| Jenis Tekanan | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Tekanan Overload | ≤ 1,5 kali dari kisaran nominal |
| Keakuratan @ 25°C | ±0,25% (Typical), ±0,5% (Max.) |
| Repeatability& Hysteresis | 0.02% F.S. (Typical) 0.05% F.S. (Max.) |
| Stabilitas Jangka Panjang | ± 0,1% F.S./Tahun (Typical) ± 0,2% F.S./Tahun (Max.) |
| Kesalahan suhu - nol | ± 0,02% F.S/°C ((≤ 100KPa) ± 0,01% F.S/°C ((> 100KPa) |
| Kesalahan suhu -Span | ± 0,02% F.S/°C ((≤ 100KPa) ± 0,01% F.S/°C ((> 100KPa) |
| Suhu Kompensasi | 0-50 °C ((<35KPa), 0-70 °C ((standar)) -10~70 ((bisa disesuaikan) |
| Suhu operasi | -20°C~80°C |
| Suhu penyimpanan | -40°C~120°C |
| Bahan perumahan | 304 SS |
| Bahan diafragma | 316L SS |
| Resistensi Isolasi | 100MΩ 100VDC |
| Klasifikasi tahan ledakan | Ex db IIC T6 Gb |
| Peringkat Perlindungan | IP65 |
| Bahan penyegelan | Karet fluoro atau segel las penuh |
| Timbang | ~0,20kg |
| Sinyal output | Tegangan Pasokan | Jenis output |
| 4×20mA | 1230VDC | 2/3/4 kawat |
| 010/20mA |
3 kawat |
|
| 0/1 ¢5V | ||
| 0/1V10V | ||
| 0.5 ∙ 4.5V | 5VDC |
Panduan pesanan:
| BP15X | Transmitter Tekanan | ||||||||
| Kode | Desain Konstruksi | ||||||||
| 5 | Packard plug | 6 | Kabel Output Langsung tertutup 1,0 meter | ||||||
| 7 | Konektor Mini DIN | 8 | Konektor Hirschmann | ||||||
| Jangkauan pengukuran | 0kPa 10kPa... 10MPa | ||||||||
|
(0-X) Kpa atau MPa |
X: Menunjukkan rentang pengukuran yang sebenarnya | ||||||||
| Kode | Sumber Daya | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | lainnya | ||||||||
| Kode | Sinyal output | ||||||||
| S1 | 4×20mADC | S5 | 020mADC | ||||||
| S2 | 1 ′5VDC | S6 | 0 ′10VDC | ||||||
| S3 | 0 ′5VDC | S7 | 0.5·4.5VDC | ||||||
| S4 | 010mADC | ||||||||
| Kode | Koneksi Tekanan | ||||||||
| J1 | G1/4 | ||||||||
| J2 | G1/8 | ||||||||
| J3 | 1/4 NPT | ||||||||
| J4 | 1/8NPT | ||||||||
| J5 | 7/16-20UNF | ||||||||
| Kode | Jenis Tekanan | ||||||||
| G | Tekanan pengukur | ||||||||
| A | Tekanan mutlak | ||||||||
| S | Tekanan referensi tertutup | ||||||||
