Aluminium Alloy Air Level Transmitter 4 20ma Liquid Water Tank Sensor
Product Details
| Nomor model.: | Pemancar Tingkat BH93420-III | Jangkauan: | 0-1m~400m |
|---|---|---|---|
| Bahan Diafragma: | 316L stainless steel | Output: | 0,5-4,5V /4-20mA |
| Jaminan: | 2 tahun | Tingkat akurasi: | 0.25% F.S,00,5% F.S. |
| Peringkat IP: | IP68 | Suhu Operasi: | -20~80℃ |
| Sumber Daya: | 12~36V, Standar 24V | Media pengukur: | Cairan, Air, Minyak |
| Menyoroti |
Aluminium Alloy Air Level Transmitter,Air Level Transmitter 4 20ma,4 20ma sensor tangki air cair |
||
Product Description

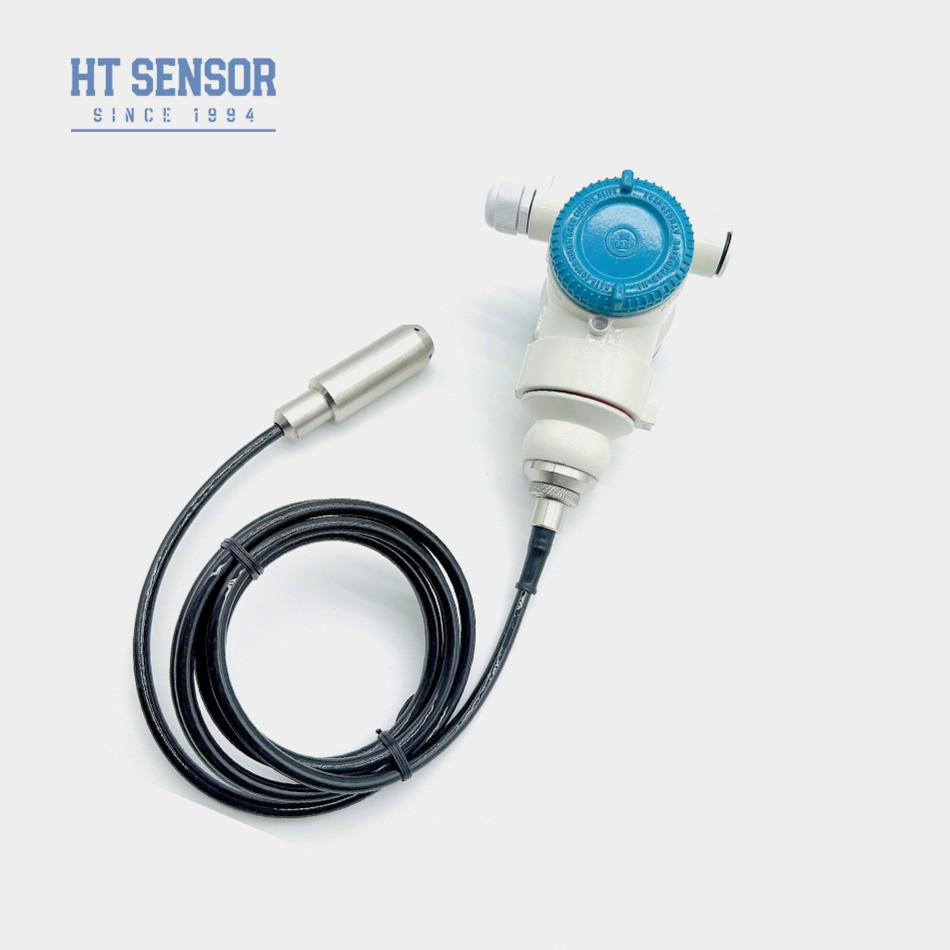

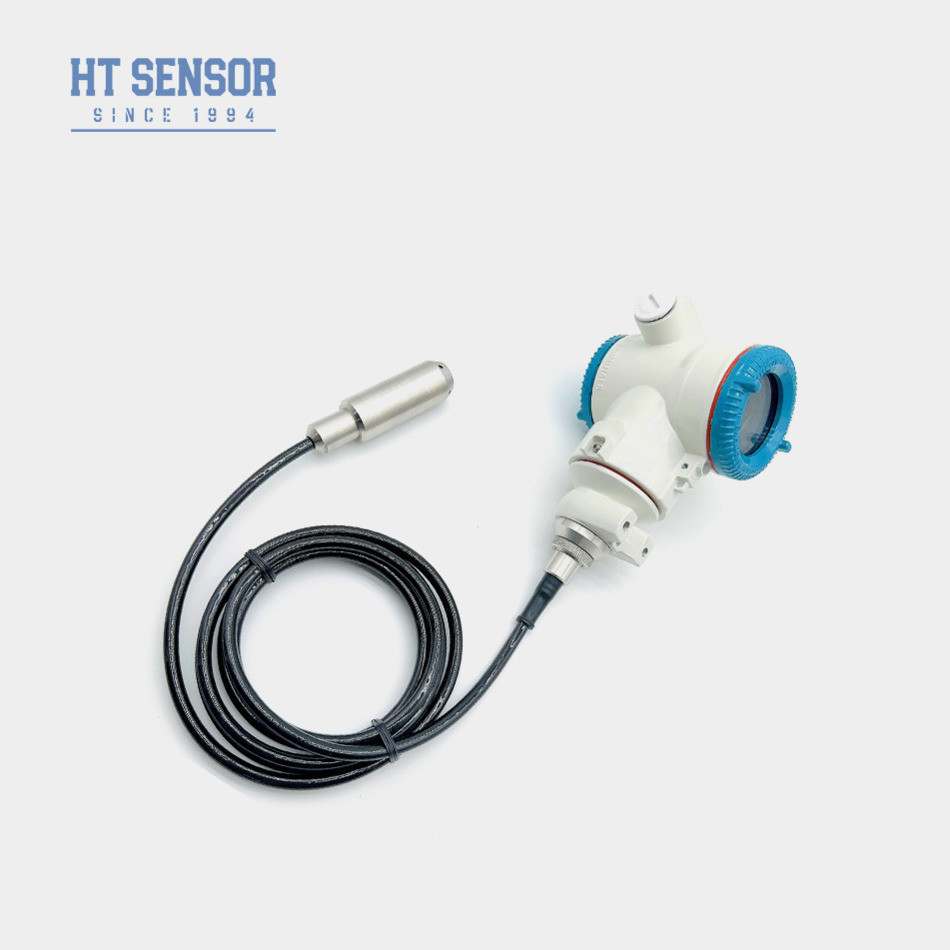

BH93420-III OEM Cast Aluminium Alloy Submersible Liquid Level Transmitter Untuk Tangki Air
BH93420III Transmitter tingkat cair yang dapat ditanam
Pengenalan Transmitter Tingkat Cairan:
BH93420-I Transmitter tingkat cairan yang dapat ditanam yang diproduksi dengan komponen asli dari sensor tekanan SENSE Jerman,yang terutama digunakan untuk pengukuran tingkat cairan pasokan air perkotaan dan drainase, pabrik pengolahan air, waduk, sungai, lautan, tangki penyimpanan minyak, serta minyak bumi, kimia, tenaga listrik dan departemen lainnya.Cairan alkali dan kentalInstrumen output kabel ganda 4 ~ 20mADC sinyal arus standar, dengan teknologi canggih, presisi tinggi, kualitas yang stabil dan dapat diandalkan, mudah dipasang dan digunakan, dlladalah instrumen tingkat cair yang ideal dalam sistem deteksi dan kontrol proses
Fitur Produkdari Transmitter tingkat cair:
1. Semua cangkang stainless steel, cocok untuk semua jenis lingkungan pengujian.
2Pengukuran probe perendaman, pemasangan mudah.
3. Berbagai pilihan sinyal output.
4Tanda tahan ledakan: ExiaIICT6.
5. IP68.
6Kabel PE atau PU.
Aplikasidari Transmitter tingkat cair:
1. Kompatibel dengan 316LSS, cairan tidak korosif
2. Pemantauan tingkat air dalam berbagai aplikasi seperti air limbah, air industri dan kota, tangki air, sumur, sungai, air laut, danau, dll
3. Pengukuran kadar bahan bakar di tangki diesel dan bahan bakar
| Parameter Kinerja | |
| Jangkauan pengukuran | 0 ~ 10m... 400m |
| Jenis Tekanan | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Overload | ≤ 2X rentang nominal |
| Keakuratan @ 25oC | ± 0,1% (Biasa) ± 0,2% (Max.) |
| Kemungkinan diulang | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Hysteresis | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Stabilitas Jangka Panjang | ± 0,15% F.S/tahun (Max.) |
| Pergeseran Suhu Nol | ± 0,01% FS/oC ((> 100KPa), ± 0,02% FS/oC (≤ 100Kpa) |
| Pergeseran Suhu Span | ± 0,01% FS/oC ((> 100KPa), ± 0,02% FS/oC (≤ 100Kpa) |
| Suhu Kompensasi | 0-50oC (0-1m. 0-2m); 0-70oC |
| Suhu operasi | -20 ~ 80oC |
| Suhu penyimpanan | -30 ~ 100oC |
| Getaran | 10g,55Hz ~ 2kHz |
| Kejutan | 100 g |
| Bahan perumahan | Aluminium tuang, stainless steel 1Cr18Ni9Ti |
| Bahan diafragma | 316L Baja tahan karat |
| Resistensi Isolasi | >=100MΩ@100VDC |
| Klasifikasi tahan ledakan | ExiaIICT6 |
| Peringkat Perlindungan | IP68 |
| Segel O-Ring | Karet fluoro |
| Berat badan | ~1,6Kg (tanpa kabel) |
| Bahan Kabel | Kabel polietilen, poliuretan, PTFE |
| Sinyal output | Tegangan Pasokan | Jenis output |
| 4 ~ 20mA dengan Hart | 15 ~ 30VDC | 2 kawat |
| Koneksi Listrik | ||||
|
4-20mA (HART) |
1 | V+ | Merah |
| 2 | V- | Kuning | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Merah |
| 2 | V- | Kuning | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Merah |
| 2 | V- | Kuning | ||
| 3 | GND | |||
| 4 | NC | |||
| Perintah Panduan | ||||||||||
| BHZ93420 | Kode | Desain Konstruksi | ||||||||
| III | Transmitter tingkat cairan cerdas | |||||||||
| Jangkauan pengukuran | 0 ~ 10m... 400m | |||||||||
| Kode | Sumber Daya | |||||||||
| D1 | 24VDC | |||||||||
| Kode | Sinyal output | |||||||||
| S1 | 4 ~ 20mADC | S2 | 4 ~ 20mADCdenganHseni | |||||||
| Kode | Koneksi Listrik | |||||||||
| B4 | 2088 tampilan | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Kode | Jenis Tekanan | |||||||||
| G | Tekanan pengukur | |||||||||
| A | Tekanan mutlak | |||||||||
| S | Tekanan referensi tertutup | |||||||||
| Kode | Bahan Kabel | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
