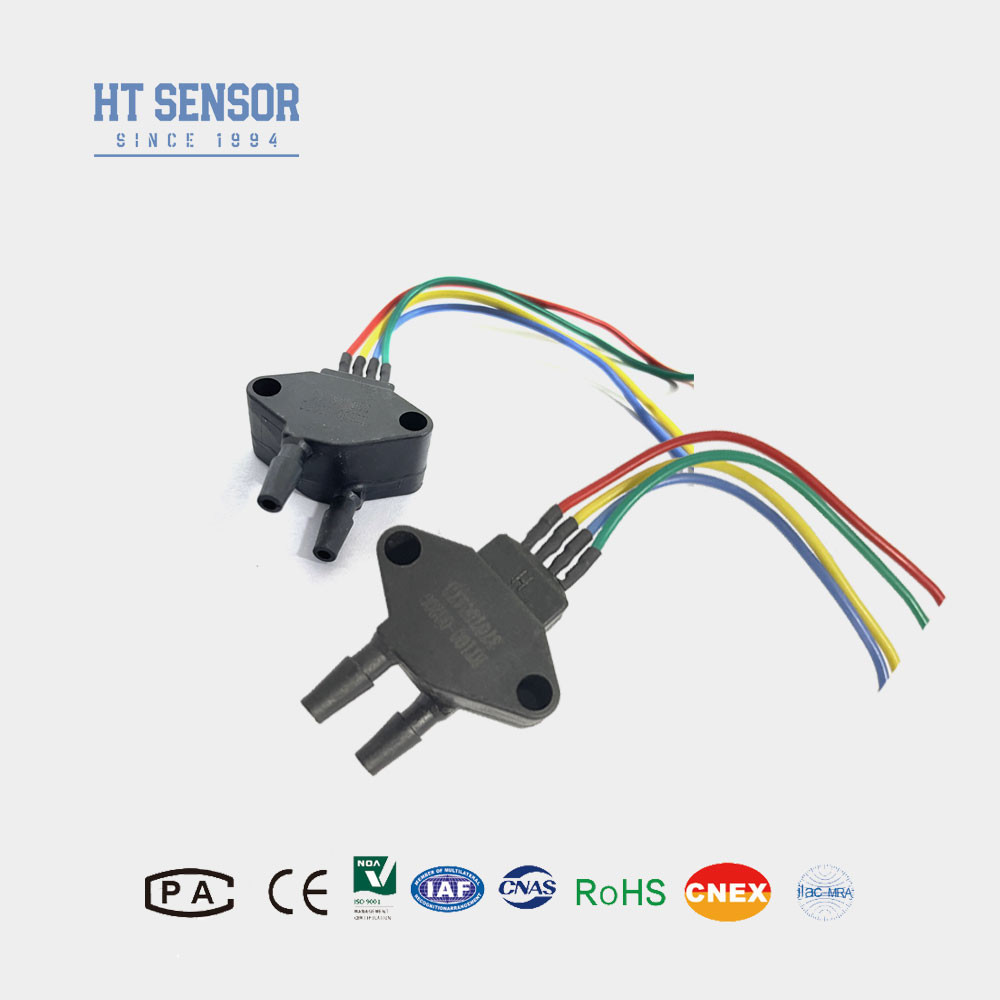

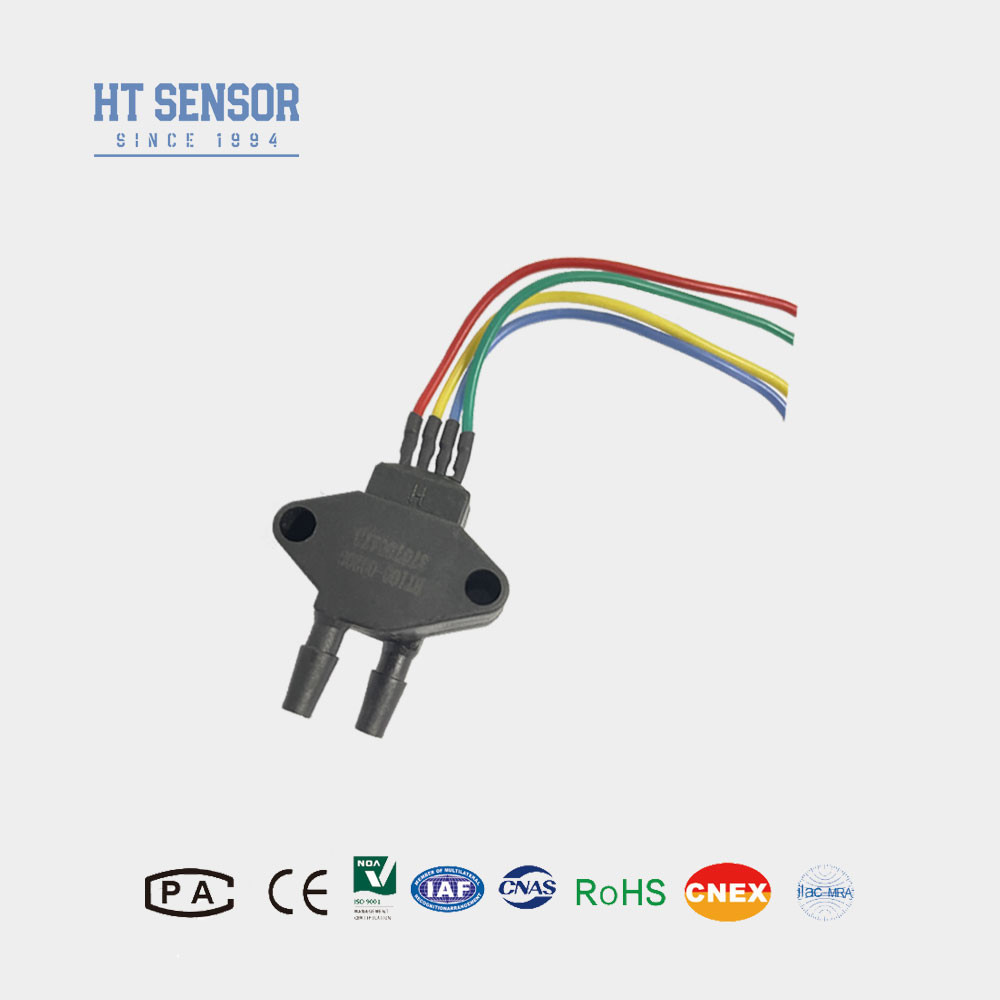

HT100 20kpa Black Plastic Shell Differential Silicon Pressure Sensor untuk Pengukuran Gas
Product Details
| Model NO.: | HT101 | Jenis: | Tekanan diferensial |
|---|---|---|---|
| Jenis kabel: | Tiga Kawat | Media pengukur: | Udara gas |
| Kekuatan: | 5VDC | Keakuratan: | 0,2%FS |
| Output: | 0,5-4,5VDC | Jangkauan: | 0-10kpa~20kpa |
| Menghubung: | φ4.8 | Pengaturan khusus: | Tersedia dapat berupa Permintaan Khusus OEM |
| Menyoroti |
HT100 Sensor Tekanan Silikon Diferensial,Sensor tekanan diferensial silikon 20kpa,Sensor Tekanan Silikon Diferensial Pengukuran Gas |
||
Product Description
HT100 20kpa Black Plastic Shell Differential Silicon Pressure Sensor Untuk Pengukuran Gas
HT100Silicon Piezoresistive Pressure Sensor
Pengenalan sensor tekanan silikon flush:
Fitur Produkdari sensor tekanan diferensial silikon:
- Jangkauan pengukuran yang luas, 0 ~ 10KPa ~ 20kpa.
- Keandalan tinggi dan stabilitas yang sangat baik.
- Teknologi enkapsulasi TO8.
- Aplikasi kedirgantaraan.
- Pengukuran tekanan gas kering yang tidak korosif.
- Sistem kontrol pneumatik.
- Teknik biomedis untuk aplikasi medis.
- HVAC (Pemanasan, Ventilasi, dan AC) kontrol.
- Pengujian ruang angkasa untuk tujuan terkait penerbangan.
- Sumber Daya: 5V DC
- Output:0.5-4.5V DC
- Koneksi Listrik: Pin Kovar berlapis emas atau kabel suhu tinggi 100 mm.
-
Parameter Kinerja Jangkauan pengukuran 0kPa 10kPa... 20kPa Jenis Tekanan Tekanan Diferensial Overload ≤ 1,5 kali dari kisaran nominal Keakuratan @ 25°C ±0,25% (Biasa) ±0,5% (Maximum) Repeatability& Hysteresis 0.02% F.S. (Typical) 0.05% F.S. (Max.) Stabilitas Jangka Panjang ± 0,1% F.S./Tahun (Typical) ± 0,2% F.S./Tahun (Max.) Pergeseran suhu titik nol ± 0,02% F.S/°C ((≤ 100KPa) ± 0,01% F.S/°C ((> 100KPa) Pergeseran Suhu Skala Penuh ± 0,02% F.S/°C ((≤ 100KPa) ± 0,01% F.S/°C ((> 100KPa) Suhu Kompensasi 0-70°C ((≤10mpa, dapat disesuaikan) Suhu operasi -20°C~80°C Suhu penyimpanan -40°C~120°C Getaran 10g,55Hz 2kHz Bahan perumahan 304, 316L Bahan diafragma 316L Resistensi Isolasi 100MΩ 100VDC Peringkat Perlindungan IP65 Berat badan ~0,1kg
| Tips pemesanan |
2Untuk memastikan operasi produk yang dapat diandalkan, Anda disarankan untuk memasang perangkat perlindungan petir di lokasi dan memastikan bahwa produk dan catu daya di darat dengan handal.
3Dalam kasus persyaratan khusus seperti getaran yang kuat, kekuatan dampak instan, gangguan elektromagnetik atau RF yang kuat, harap beri tahu kami dan tunjukkan dalam pesanan.
4Jika ada perubahan pada kabel pin, ikuti label pada inti yang sebenarnya untuk referensi.
