4-20mA Penjepit Film Datar Pemancar Tekanan Sensor Pemancar Tekanan Diafragma Siram
Product Details
| Model NO.: | BP93420-IQ | Sumber daya listrik: | 24VDC |
|---|---|---|---|
| Sinyal output: | Tekanan pengukur, Tekanan absolut, Tekanan tertutup | Keakuratan: | 0,25%FS, 0,5%FS |
| Rentang Tekanan: | -100kPa...0kPa ~35kPa...3,5MPa | Pengaturan khusus: | Tersedia Permintaan Disesuaikan |
| Model: | 1 | ||
| Menyoroti |
Sensor pemancar tekanan diafragma siram,4-20mA Clamp Pressure Transmitter Sensor,Clamp Flat Film Pressure Transmitter Sensor |
||
Product Description

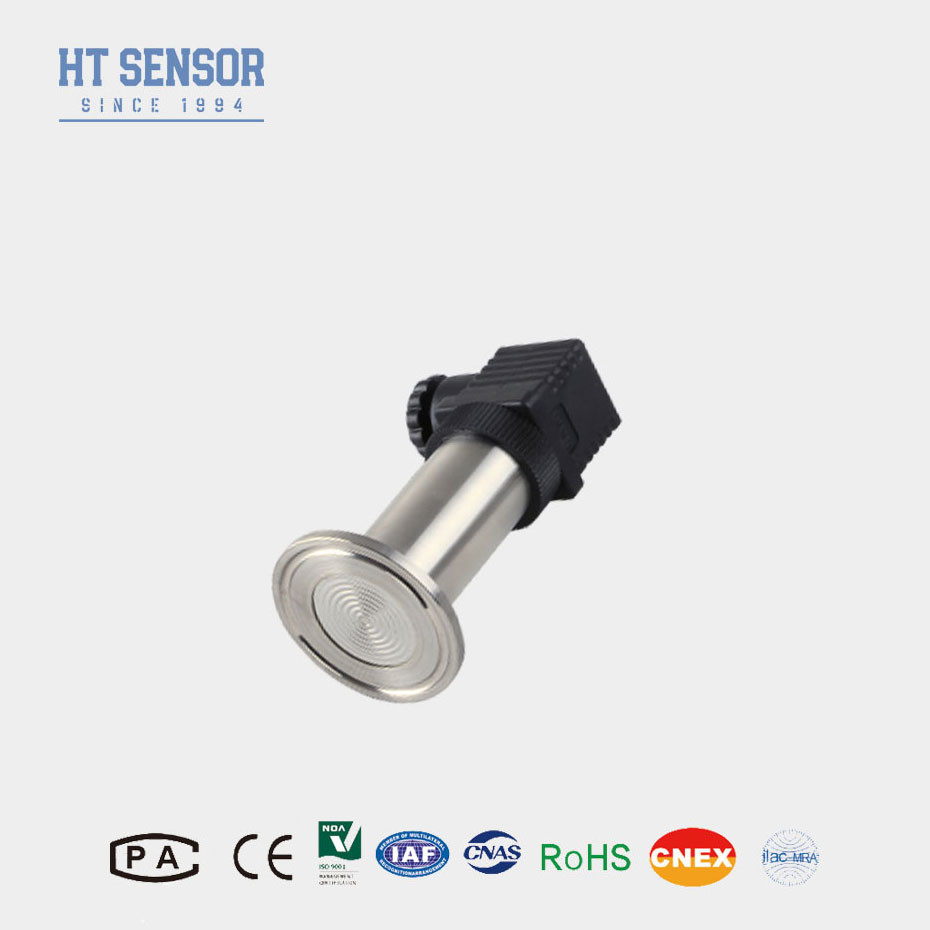

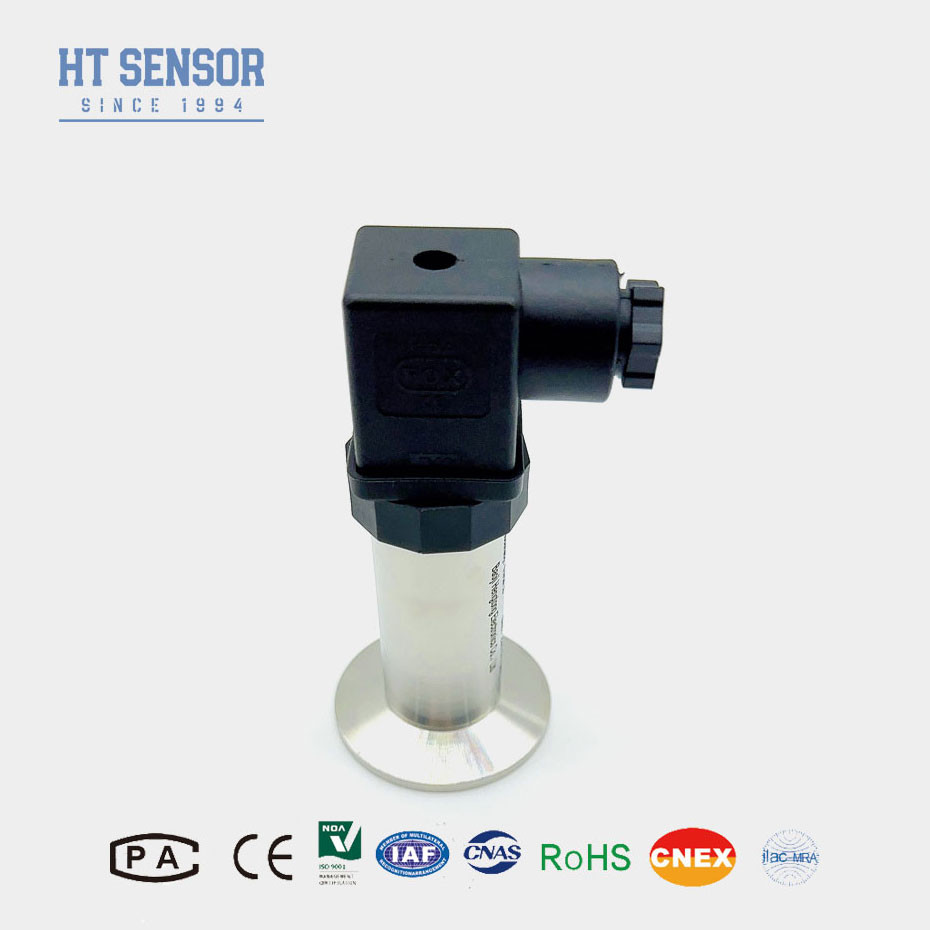

4-20mA Clamp Flat Film Pressure Transmitter Flush Diaphragm Pressure Transmitter Sensor
BP93420-IQ PresureTPengirim uang
Pengantar dari Sensor Transmitter Tekanan
BP93420-IQ pemancar tekanan biasanya menggunakan heat sinks untuk meningkatkan kinerja disipasi panas dari sensor.dan panas yang dihasilkan oleh sensor ditransmisikan dengan cepat ke heat sink melalui bahan konduktif termal, dan dipancarkan melalui permukaan heat sink untuk menjaga suhu kerja sensor dalam kisaran yang dapat diandalkan
- Berbagai pilihan antarmuka tekanan
- Dirancang untuk aplikasi higienis untuk mencegah skala menengah
- Keakuratan tinggi dengan struktur stainless steel sepenuhnya
- Mudah dibersihkan.
Aplikasi:
- Cocok untuk pengukuran gas dan cairan yang tidak korosif dengan 316L
- Ideal untuk perlindungan lingkungan dan industri kimia
- Digunakan dalam industri kelautan dan penerbangan
- Cocok untuk digunakan dalam kesehatan medis, biofarmaceutis, dan makananindustri.
Parameter kinerja:
| Jangkauan pengukuran | 0~35Kpa...~3.5MPa |
| Jenis Tekanan | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Overload | ≤ 1,5 kali dari kisaran nominal |
| Keakuratan @ 25oC | ±0,25% (Biasa) ±0,5% (Maximum) |
| Kemungkinan diulang | 0.1% FS |
| Hysteresis | 0.1% FS |
| Stabilitas Jangka Panjang | ± 0,1% F.S./Tahun ((Tipikal) ± 0,2% F.S./Tahun ((Maksimum) |
| Pergeseran suhu titik nol | ± 0,02% F.S/oC ((≤ 100KPa) ± 0,01% F.S/oC ((> 100KPa) |
| Pergeseran Suhu Skala Penuh | ± 0,02% F.S/oC ((≤ 100KPa) ± 0,01% F.S/oC ((> 100KPa) |
| Tanggapan Frekuensi | 2.4Khz |
| Suhu Kompensasi | -20-70oC ((≤10mpa, dapat disesuaikan) |
| Suhu operasi | -20oC ~ 80oC |
| Suhu penyimpanan | -40oC ~ 120oC |
| Getaran | 10g,55Hz ~ 2kHz |
| Bahan perumahan | 304, 316L |
| Bahan diafragma | 316L |
| Resistensi Isolasi | 100MΩ 100VDC |
| Klasifikasi tahan ledakan | Eks db IIC T6 Gb |
| Peringkat Perlindungan | IP65 |
| Segel O-Ring | Karet fluoro |
| Berat badan | ~ 0,55kg |
| Sinyal output | Tegangan Pasokan | Jenis output |
| 4 ~ 20mA | 12 ~ 30VDC | 2/3/4 kawat |
| 0~10/20mA | 3 kawat |
|
| 0/1 ~ 5V | ||
| 0/1 ~ 10V | ||
| 0.5 ~ 4.5V | 5VDC | |
| Protokol Komunikasi RS485 | 3.6 ~ 30V / baterai | 4 kawat |
Perintah Panduan:
| BP93420XX | Transmitter Tekanan | |||||||
| Kode | Desain Konstruksi | |||||||
| IB | Transmitter Tekanan Umum | IX (dalam bahasa Inggris) | Tampilan Pressure Transmitter | |||||
| IE | Transmitter Tekanan Penerbangan yang tahan kejut | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| Jika | Transmitter tekanan tahan kelembaban | IIE/IIIE | Transmitter Tekanan Umum/Tampilan | |||||
| IN | Air conditioning khusus pemancar tekanan | IC | Transmitter tekanan suhu tinggi | |||||
| IQ/IQT | Diafragma besar / Transmitter tekanan suhu tinggi | |||||||
| Jangkauan pengukuran | -100kPa... 0kPa ~ 35kPa... 3.5MPa | |||||||
| (0-X) Kpa atau MPa | X: Menunjukkan rentang pengukuran yang sebenarnya | |||||||
| Kode | Sumber Daya | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | lainnya | |||||||
| Kode | Sinyal output | |||||||
| S1 | 4 ~ 20mADC | S5 | 0 ~ 20mADC | |||||
| S2 | 1 ~ 5VDC | S6 | 0 ~ 10VDC | |||||
| S3 | 0 ~ 5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0 ~ 10mADC | |||||||
| Kode | Koneksi Listrik | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Output Kabel yang Disegel | |||||||
| B4 | 2088 Casing industri | |||||||
| B5 | 2088 Casing industri dengan tampilan | |||||||
| B6 | lainnya | |||||||
| Kode | Jenis Tekanan | |||||||
| G | Tekanan pengukur | |||||||
| A | Tekanan mutlak | |||||||
| S | Tekanan referensi tertutup | |||||||
