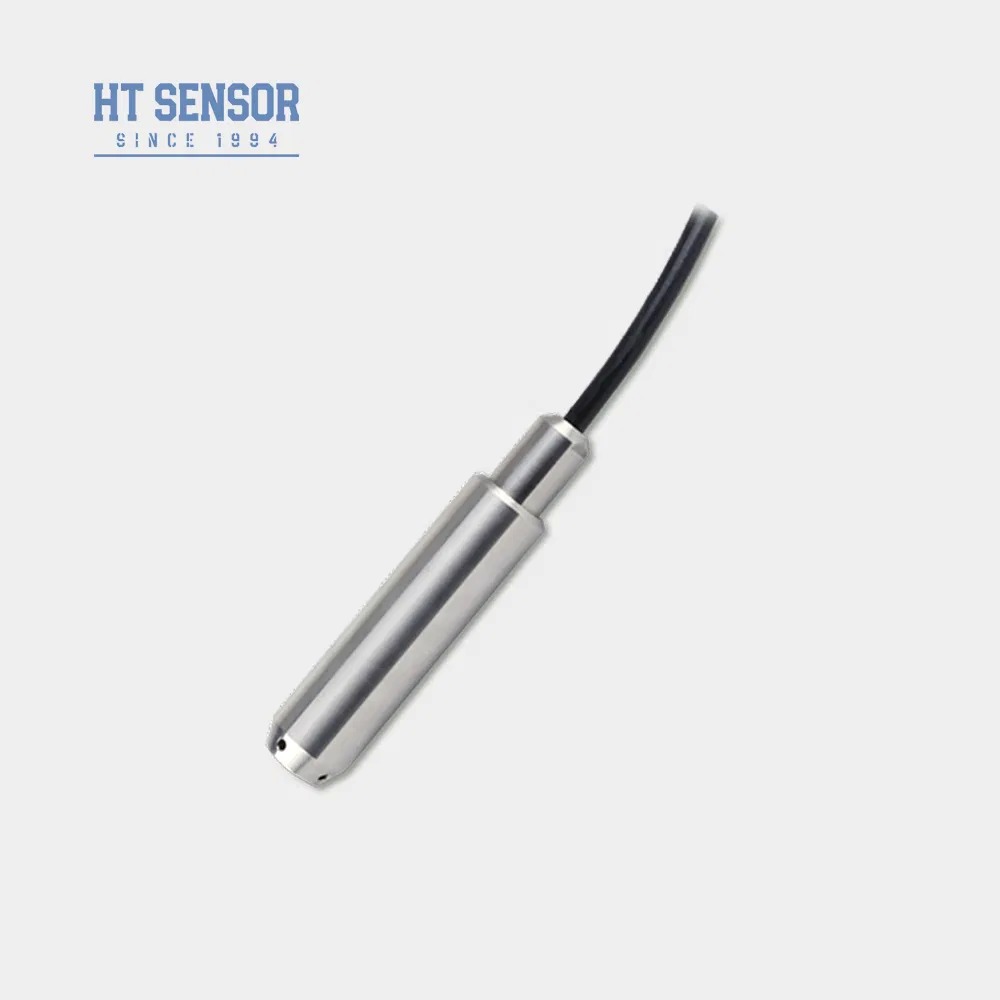

4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy
Product Details
| Sinyal keluaran: | 4-20mA atau RS485 | Peringkat IP: | IP68 |
|---|---|---|---|
| Berat bersih: | 0,3kg | Bahan diafragma: | 316L stainless steel |
| Ketepatan: | 00,25%, 0,5% | Rentang pengukuran: | 0 ~ 10m… 400m |
| Jenis tekanan: | Tekanan pengukur, Tekanan absolut, Tekanan tertutup | Kapasitas kelebihan beban: | ≤ 2x kisaran pengenal |
| Pengulangan: | ± 0,03% (Typ.) ± 0,05% FS (maks.) | Stabilitas jangka panjang: | ± 0,2% F.S/tahun (Max.) |
| Suhu operasi: | -20 ~ 80oC | Suhu penyimpanan: | -30 ~ 100ºC |
| Bahan perumahan: | 1Cr18Ni9Ti | Resistensi isolasi: | > = 100mΩ@100VDC |
| Peringkat tahan ledakan: | ExiaIICT6 | ||
| Menyoroti |
4-20mA submersible water level sensor,IP68 water level transmitter,high accuracy water level sensor |
||
Product Description
The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Protection Rating | IP67, IP68 |
| Explosion-proof Rating | ExiaIICT6 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Parameter | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
