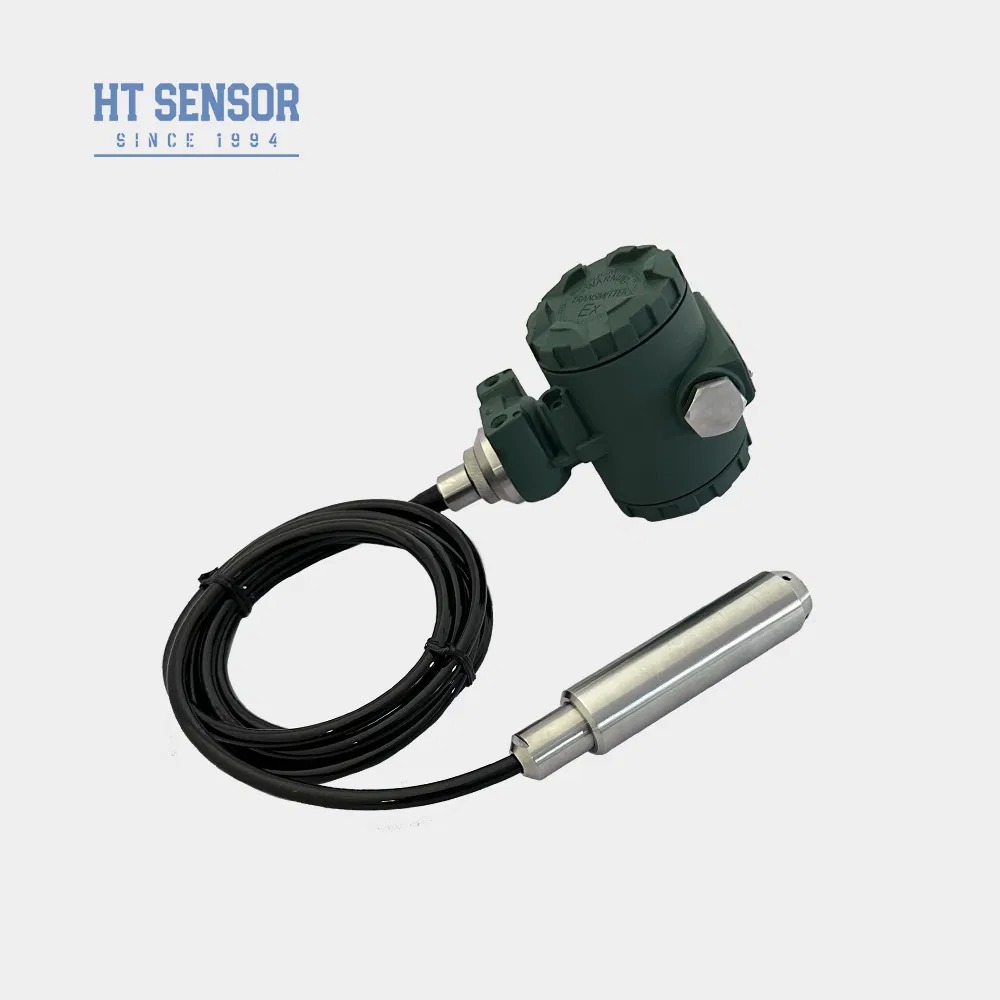

BH93420-III Water Level Sensor IP68 316L Stainless Steel 0.25% Accuracy

BH93420-III Water Level Sensor IP68 316L Stainless Steel 0.25% Accuracy
BH93420-III Water Level Sensor IP68 316L Stainless Steel 0.25% Accuracy
Informasi Dasar
Sertifikasi: CE, RoHS, ISO9001
Kuantitas min Order: 1
Harga: 50
Harga terbaik Hubungi sekarang
Informasi Detail
Model No.: BH93420-III Sinyal keluaran: Tipe Analog
Status output: Output sinyal Proses produksi: Tipe Kapal Selam
Jenis probe: Jenis probe Bentuk keluaran: Nilai Tekanan
Peringkat IP: IP68 Berat bersih: 0,6kg
Bahan diafragma: 316L stainless steel Ketepatan: 0,25%, 0,3%, 0,5%
Bahan kabel: PE, PU, ​​PTFE Rentang pengukuran: 0 ~ 10m… 400m
Jenis tekanan: Tekanan pengukur, Tekanan absolut, Tekanan tertutup Kapasitas kelebihan beban: ≤ 2x kisaran pengenal
Suhu operasi: -20 ~ 80oC
Menyoroti:

IP68 water level sensor

,

316L stainless steel water transmitter

,

high accuracy water level sensor

Deskripsi Produk

HT Series BH93420-III Water Level Sensor with LED Display
Product Description

BH93420-III Water Level Transmitter

The BH93420-III water level transmitter features a highly precise piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure, which directly correlates to water level, and converts it into a standard signal output using amplification circuitry. This establishes a linear relationship between output signal and liquid level, ensuring precise and accurate water level measurement.

BH93420-III Water Level Sensor IP68 316L Stainless Steel 0.25% Accuracy 0
Product Features
  • Split-type design for easy on-site wiring and calibration
  • LED display for clear readings
  • Explosion-proof rating: ExiaIICT6
  • High protection rating: IP68
  • Cable options: PE, PU, PTFE
Applications
  • Compatible with 316LSS and non-corrosive liquids
  • Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
  • Diesel, fuel, and other oil tank level monitoring
Performance Parameters
Measurement Range 0~10m...400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.15%F.S/year (Max.)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Shock 100g
Housing Material Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP68
O-Ring Seal Fluoro rubber
Weight ~1.5Kg (without cable)
Cable Material Polyethylene, Polyurethane, PTFE cable
Output Signal
Output Signal Supply Voltage Output Type
4~20mA 15~30VDC 2/3/4 wire
RS485 Communication Protocol 4 wire
BH93420-III Water Level Sensor IP68 316L Stainless Steel 0.25% Accuracy 1
Ordering Tips
  • Ensure measured medium compatibility with product components
  • Specify measured medium density
  • Provide details of strong electromagnetic or radio frequency interference
  • Install lightning protection devices and ensure proper grounding for reliable operation
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large orders.
Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales responds within 24 hours with remote PC network support available.
