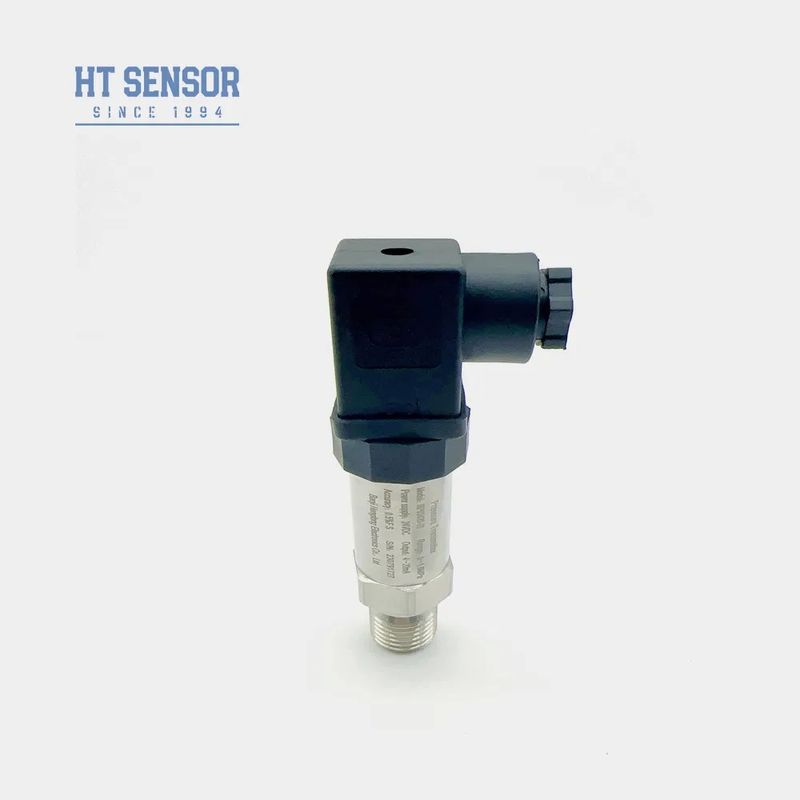

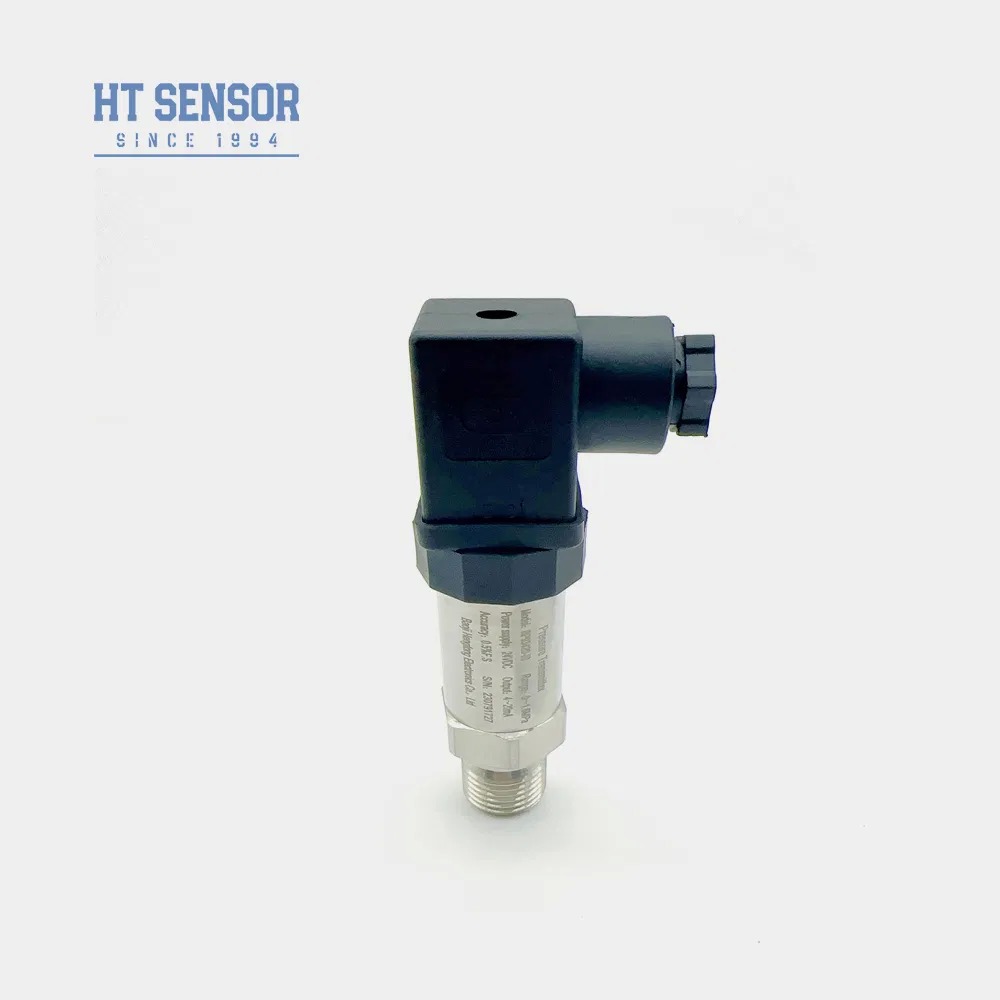

HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65

HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65
Informasi Dasar
Sertifikasi: CE, RoHS, ISO9001
Kuantitas min Order: 1
Harga: 15
Harga terbaik Hubungi sekarang
Informasi Detail
Model No.: BP93420-IB Media pengukur: Cairan
Nilai akurasi: 0,5g Rentang tekanan: 0kpa~10kpa...100MPa
Peringkat IP: IP65 Jenis tekanan: Tekanan pengukur, Tekanan absolut, Tekanan tertutup
Bahan perumahan: 316L Stabilitas jangka panjang: +-0,2% F.S/Tahun (jenis)
Bahan diafragma: 316L Suhu operasi: -20ºC ~ 80ºC
Suhu penyimpanan: -40ºC ~ 120ºC Sinyal keluaran: 4 ~ 20mA, 0 ~ 10/20mA, 0/1 ~ 5v, 0/1 ~ 10v, 0.5 ~ 4.5V
Tegangan suplai: 12 ~ 30VDC, 5VDC Berat: ~ 0,15kg
Resistensi isolasi: 100mΩ 100VDC
Menyoroti:

4-20mA pressure transmitter with IP65

,

industrial pressure sensor 0.5G accuracy

,

HTsensor BP93420-IB pressure transmitter

Deskripsi Produk

HTsensor 4-20mA Oil Air Water Pressure Transmitter Silicon Pressure Sensor Industrial Transducer
BP93420IB Pressure Transmitter
The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core as the signal measuring element. The signal processing circuit is housed in a stainless steel enclosure, converting sensor signals into standard output signals. Rigorous testing and aging screening ensure stable and reliable performance.
Product Features
  • Wide measuring range with stainless steel construction and diverse pressure interface options
  • Compact and lightweight design for easy installation
  • Adjustable zero and full-scale calibration
  • High precision measurement with all stainless steel structure
  • Versatile output signal options
Applications
  • Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
  • Marine and aviation industry applications
  • Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range -100kPa...0kPa ~ 10kPa...100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Operating Temperature -20ºC~80ºC
Housing Material 304, 316L Stainless Steel
Protection Rating IP65
Explosion-proof Rating Ex db IIC T6 Gb
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 0
Ordering Information
  • Ensure medium compatibility with product contact parts
  • Explosion-proof models exclude digital display heads
  • Models with LCD/LED display require ≥20VDC power supply
  • Install lightning protection devices and ensure proper grounding
  • Default cable length: 1.5m (polyethylene material)
  • Specify special requirements (vibration, EMI/RFI, etc.) when ordering
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 1
Order Guide
Code Outline Construction
IB General Pressure Transmitter
IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter
Measurement Range: -0.1...0~0.01...100MPa (0-X)Kpa or MPa
Code Power Supply
D1 24VDC
D2 5VDC
Code Output Signal
S1 4~20mADC
S5 0~20mADC
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Up to 30,000 units/month. Contact sales for large orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Custom products may vary.
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 2 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 3 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 4 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 5
