Informasi Detail

Model No.:	BP93420-IX	Media pengukur:	Cairan
Nilai akurasi:	≤ 0,5% F.S.	Rentang tekanan:	-100kpa...0kpa ~10kpa...100MPa
Peringkat IP:	IP65	Jenis tekanan:	Tekanan pengukur, Tekanan absolut, Tekanan tertutup
Bahan perumahan:	316L stainless steel	Respons frekuensi:	2.4KHZ
Kapasitas kelebihan beban:	≤ 1,5 kali dari kisaran pengenal	Suhu operasi:	-20ºC ~ 80ºC
Suhu penyimpanan:	-40ºC ~ 120ºC	Bahan diafragma:	316L
Resistensi isolasi:	100mΩ 100VDC	Berat:	~0,25kg
Tegangan suplai:	12 ~ 30VDC, 5VDC, 3.6 ~ 30V / baterai
Menyoroti:	Digital Pressure Transmitter 0.5% Accuracy , IP65 Industrial Pressure Sensor , BP93420-IX Pressure Transmitter with Warranty

Deskripsi Produk

BP93420-IX Pressure Transmitter

The BP93420IX pressure transmitter utilizes the HT series silicon piezoresistive isolation diaphragm oil-filled core as the signal measuring element. This integrated pressure transmitter combines pressure measurement, display, and output functions. Rigorously tested with comprehensive aging screening of components, it delivers stable, reliable performance with easy operation and calibration.

Key Features

Wide measurement range with stainless steel construction
Multiple pressure interface options available
High precision with optional digital display

Applications

Scientific research applications
Petroleum and chemical industries
Marine and aviation sectors

Performance Specifications

Measurement Range	-100kPa...0kPa ~10kPa...100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g, 55Hz ~ 2kHz
Housing Material	Cast aluminum
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.25kg

Output Signal Options

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Information

Important Notes

Ensure medium compatibility with product contact parts
Explosion-proof models exclude digital display heads
For LCD/LED displays, power supply ≥20VDC required
Install lightning protection and ensure proper grounding
Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
Default 1.5m polyethylene cable (other materials available)
Specify special requirements (vibration, EMI, etc.) when ordering

Order Guide

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
Additional codes and configurations available - see full specifications

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our facilities can produce up to 30,000 units monthly. Contact sales for large orders.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

What is the warranty and after-sales service?

24-month warranty with 24-hour response time. Remote support available.

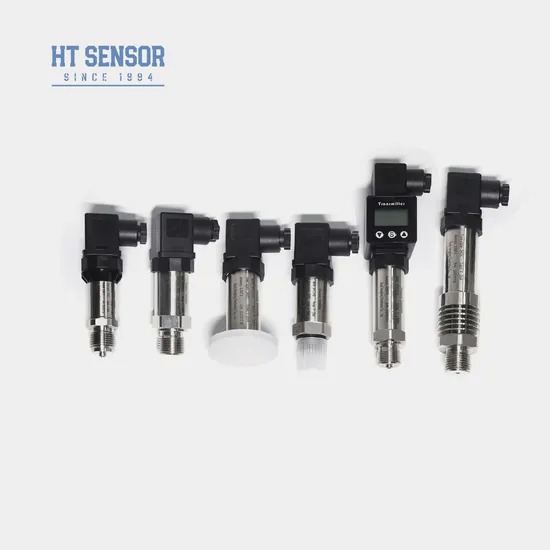

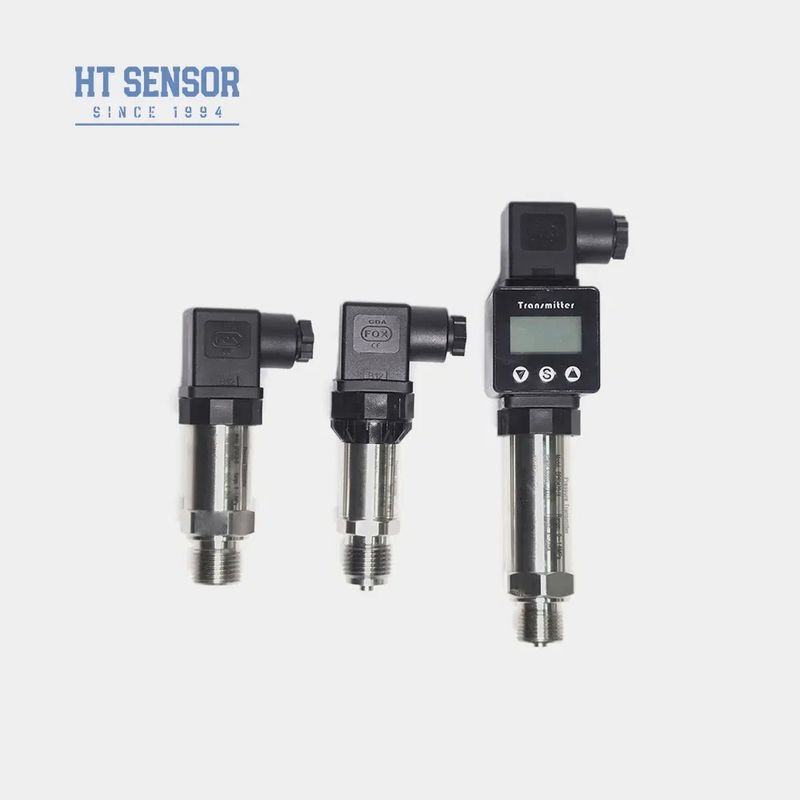

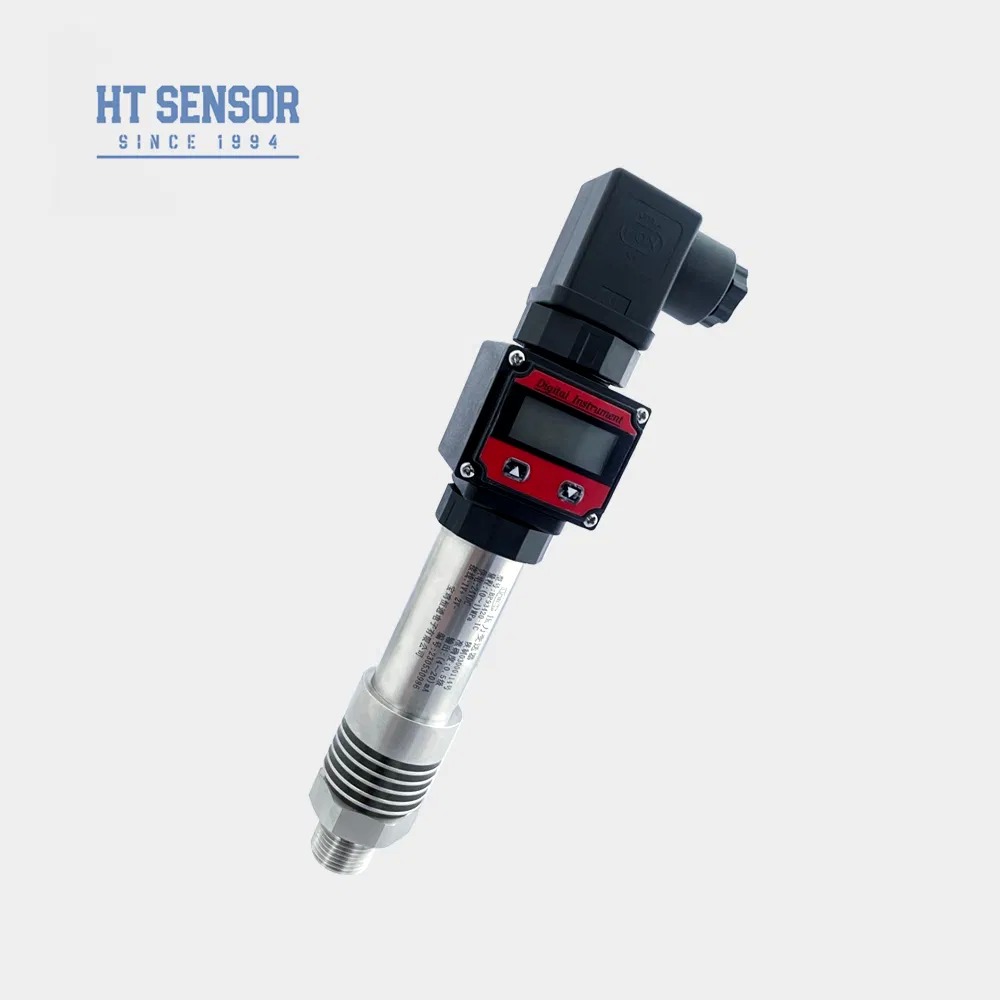

Product Images

Label:

Sertifikasi:	CE, RoHS, ISO9001

Kuantitas min Order:	1
Harga:	31
