316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy

316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy
316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy
Informasi Dasar
Sertifikasi: CE, RoHS, ISO9001
Kuantitas min Order: 1
Harga: 200
Harga terbaik Hubungi sekarang
Informasi Detail
Model No.: BH93420-WS Rentang tekanan: Tekanan pengukur, tekanan absolut
Nilai akurasi: 0.2%,00,5% Peringkat IP: IP68
Berat bersih: 2.1KG Bahan diafragma: 316L stainless steel
Bahan perumahan: 316L stainless steel Stabilitas: ± 0,1% F.S./Tahun (Typ.)
Rentang pengukuran: 0 ~ 10m… 400m Kelebihan muatan: ≤ 2x kisaran pengenal
Akurasi @ 25ºC: ± 0,25% (Typ.) ± 0,5% (maks.) Pengulangan: ± 0,03% (Typ.) ± 0,05% FS (maks.)
Suhu operasi: -20 ~ 100ºC Peringkat tahan ledakan: ExiaIICT6
Sinyal keluaran: 4 ~ 20mA, 0 ~ 10/20mA, 0/1 ~ 5v, 0/1 ~ 10v, 0.5 ~ 4.5V
Menyoroti:

316L stainless steel water level sensor

,

IP68 sewage level transmitter

,

high accuracy water level sensor

Deskripsi Produk

BH-WS Sewage Level Sensor
The BH-WS sewage level sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with full 316L stainless steel construction, making it ideal for measuring liquid levels in harsh environments with contaminated liquids.
Key Features
  • Specially designed for harsh industrial environments
  • Explosion-proof certification: ExiaIICT6
  • High protection rating: IP68
  • Full 316L stainless steel construction for superior corrosion resistance
  • High precision measurement with excellent stability
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Oil level monitoring in diesel tanks, fuel tanks, and other fuel containers
  • Level measurement in polluted liquids including:
    • Sludge tanks and clarifiers
    • Digesters and alum tanks
    • Chemical storage tanks
    • Sewage pits and water reservoirs
Performance Parameters
Measurement Range 0~10m...400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Operating Temperature -20~100ºC
Housing Material 316L Stainless Steel
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68

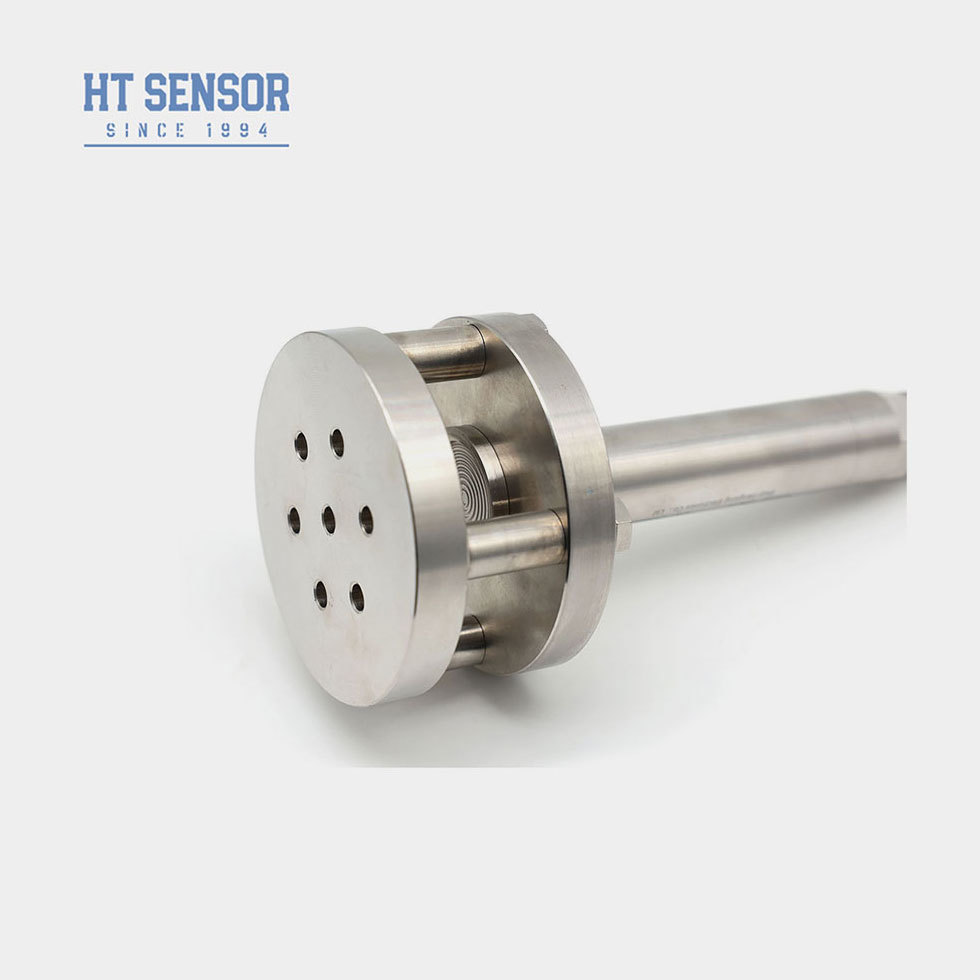

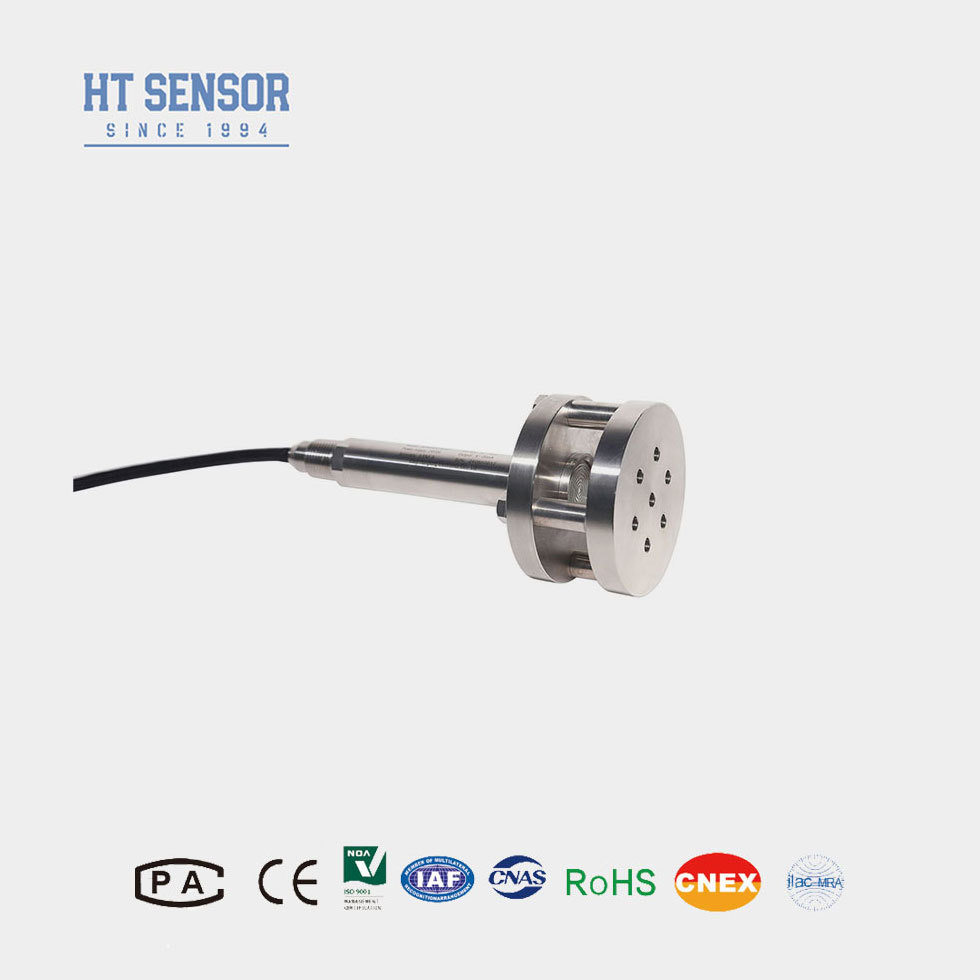

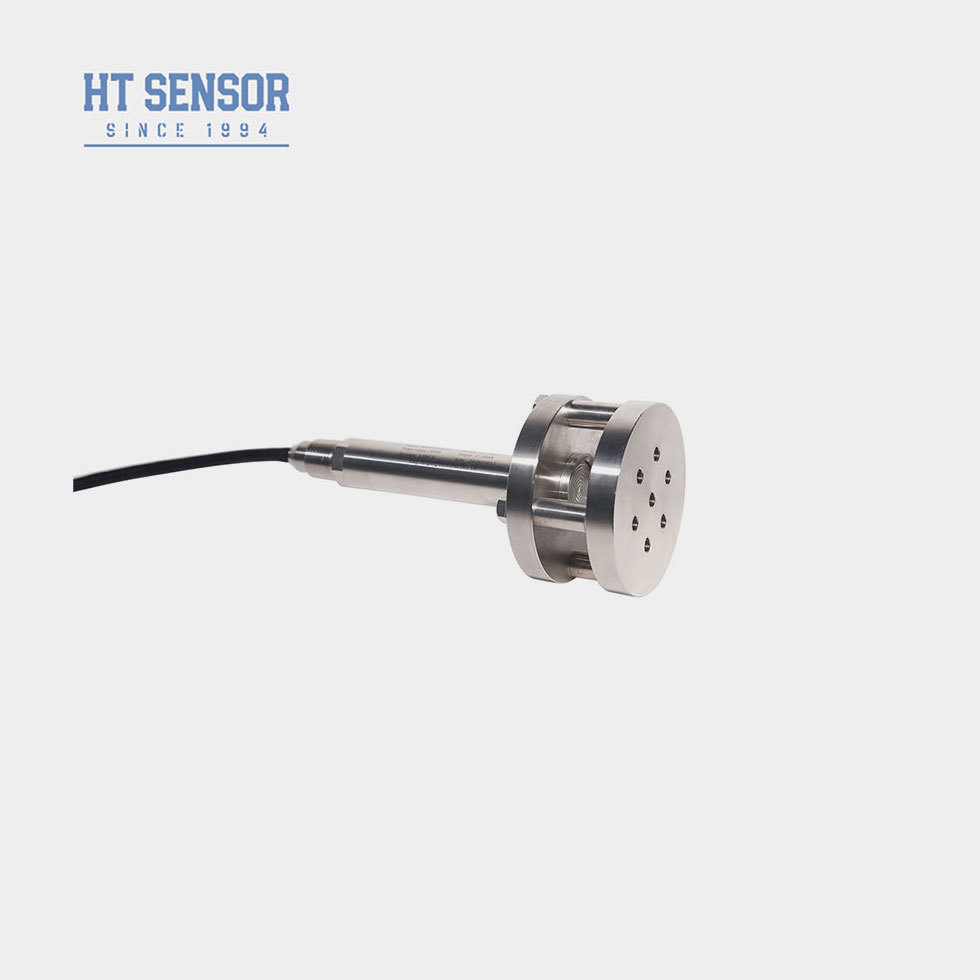

Product Images
316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy 0 316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy 1
Ordering Information
Important Considerations
  • Ensure measured medium compatibility with product materials
  • Specify the density of the measured medium
  • For strong electromagnetic/RF interference environments, provide details
  • Install lightning protection devices and ensure proper grounding
Order Guide
Code Option
D1 24VDC Power Supply
D2 5VDC Power Supply
S1 4~20mADC Output
S2 1~5VDC Output
G Gauge Pressure Type
A Absolute Pressure Type
C1 PE Cable Material
316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy 2 316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy 3 316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy 4 316L Stainless Steel IP68 Sewage Level Sensor 0.5% Accuracy 5
Frequently Asked Questions
  • Q: What are the key features of your pressure sensor transmitters?
    A: High precision, durability, and excellent performance with customization options available.
  • Q: Can you customize special specifications?
    A: Yes, our engineers can tailor products to meet specific requirements with OEM and ODM services.
  • Q: What is your production capacity?
    A: Up to 30,000 units monthly. Contact sales for large order planning.
  • Q: What's the typical delivery time?
    A: 5-8 working days for standard models; varies for custom products.
  • Q: What warranty and after-sales support do you provide?
    A: 24-month warranty with 24-hour response time for support inquiries.
