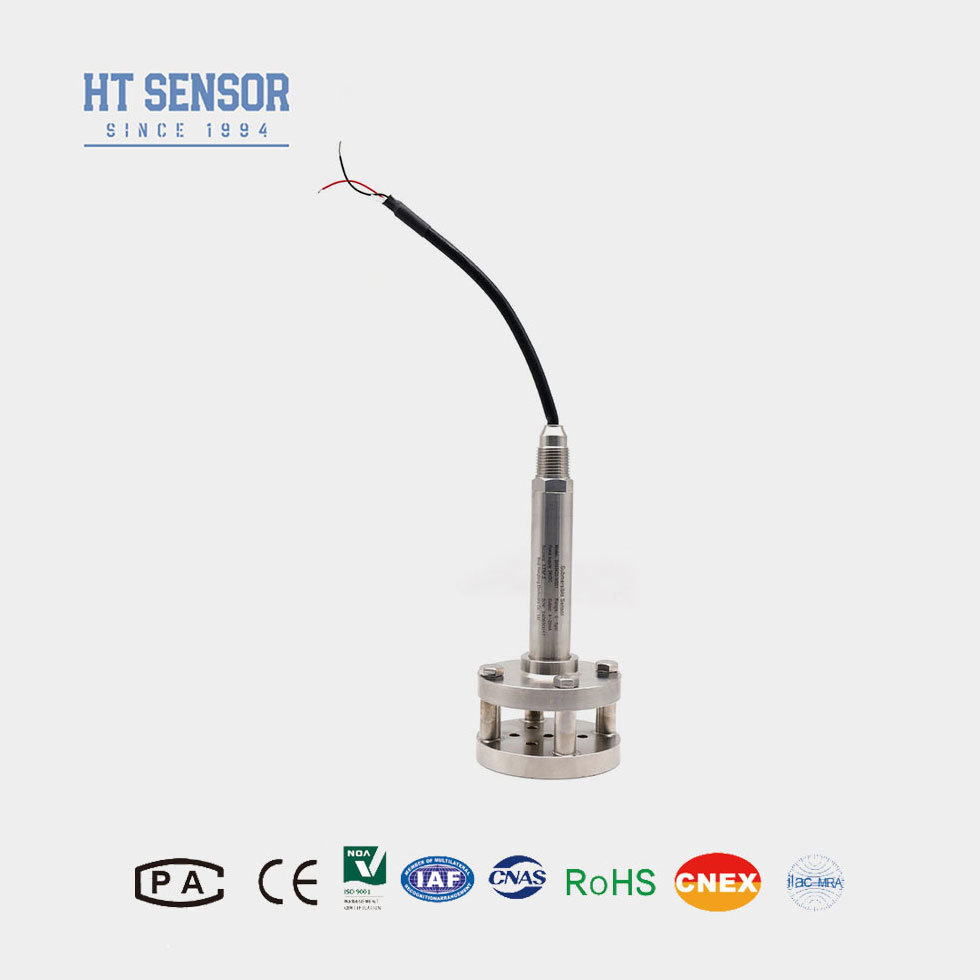

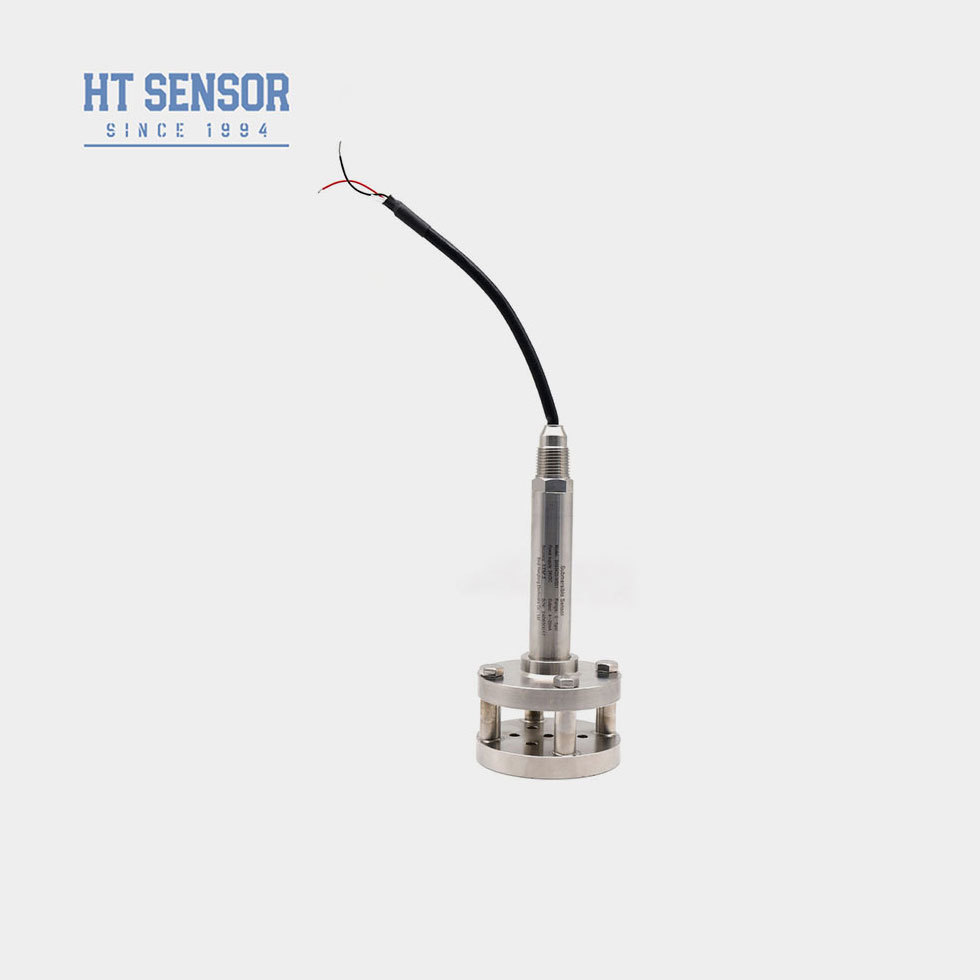

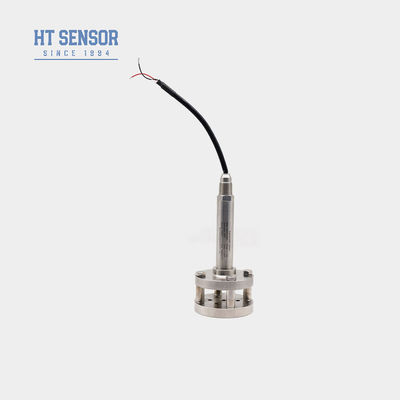

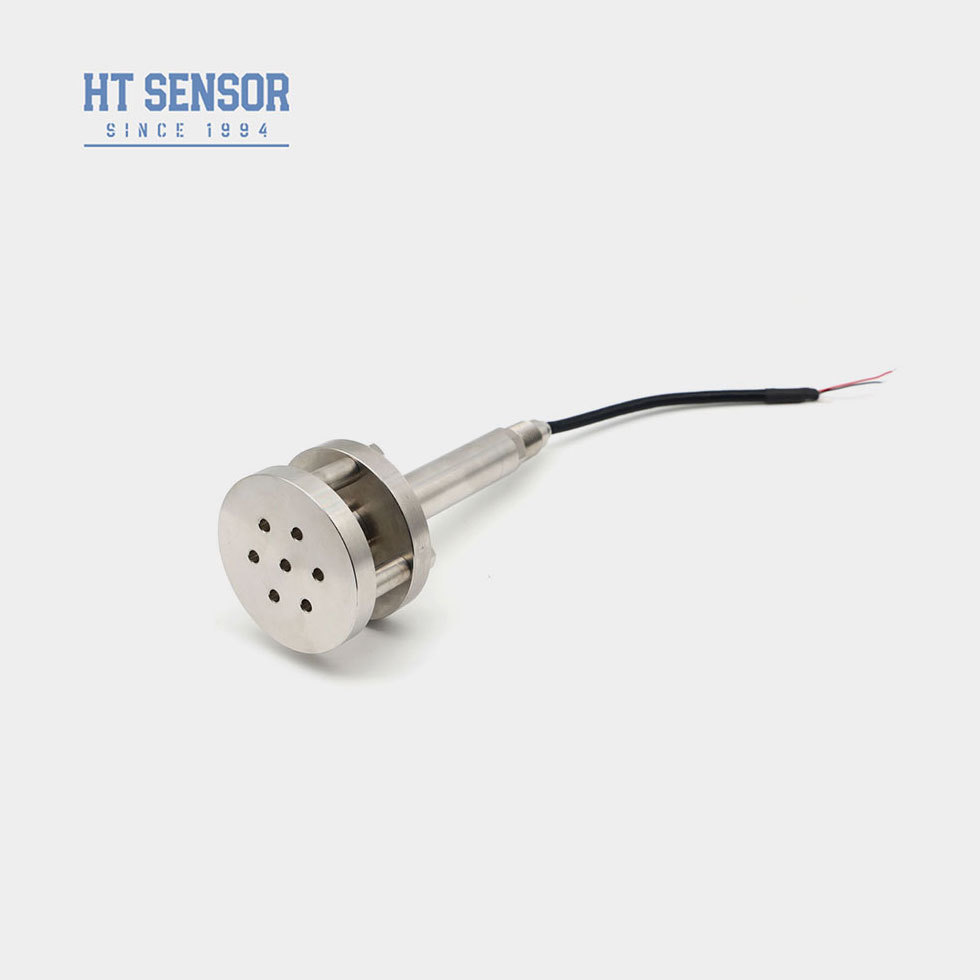

4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
Product Details
| Model No.: | BH983420-WS | Rentang tekanan: | Tekanan pengukur, tekanan absolut |
|---|---|---|---|
| Nilai akurasi: | 0.2%,00,5% | Peringkat IP: | IP68 |
| Berat bersih: | 2.1KG | Bahan diafragma: | 316L stainless steel |
| Bahan perumahan: | 316L stainless steel | Stabilitas: | ± 0,1% F.S./Tahun (Typ.) |
| Rentang pengukuran: | 0-10m | Kapasitas kelebihan beban: | ≤ 2x kisaran pengenal |
| Suhu operasi: | -20 ~ 100ºC | Suhu penyimpanan: | -30 ~ 100ºC |
| Resistensi isolasi: | > = 100mΩ@100VDC | Peringkat tahan ledakan: | ExiaIICT6 |
| Sinyal keluaran: | 4-20mA | Suhu operasi: | -20 ~ 80 ℃ |
| Bahan: | 304SST, 316SST | Kabel: | Ptfe |
| Jenis: | Tipe Piezoresistif Silikon | disesuaikan: | Tidak disesuaikan |
| Drift skala penuh: | ± 1,5%F.SR (Typ.) ± 2%FS (maks.) | Menampilkan: | LCD |
| Tekanan proses: | -0.02-0.1mpa | Desain Struktur: | Tipe flensa |
| Kustomisasi: | OEM/ODM | Model: | 1 |
| Panjang kabel: | 5m | Kode HS: | 90261000 |
| Menyoroti |
4-20mA sewage level sensor,IP68 water level transmitter,316L stainless steel level sensor |
||
Product Description
The BH-WS Sewage Level Sensor is a high-performance liquid level transmitter designed for demanding industrial applications. Utilizing a precision piezoresistive silicon pressure sensor with full 316L stainless steel construction, this robust device delivers reliable measurements in contaminated liquid environments.
- Engineered for harsh industrial environments
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Full 316L stainless steel construction for superior corrosion resistance
- Exceptional measurement accuracy and long-term stability
- Compatible with 316L stainless steel and non-corrosive liquids
- Fuel level monitoring in diesel tanks, fuel storage containers
- Liquid level measurement in polluted environments including:
- Sludge tanks and clarifiers
- Digesters and chemical storage tanks
- Sewage pits and water reservoirs
- Alum tanks and lime slurry systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 2X rated range |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~100°C |
| Housing Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Weight | ~2.1Kg (without cable) |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
Please ensure compatibility with your measured medium and specify density when ordering.
- For strong electromagnetic interference environments, please provide details
- Recommended to install lightning protection devices and ensure proper grounding
| Code | Description |
|---|---|
| BH-WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| G | Gauge Pressure Type |
| C1 | PE Cable Material |
