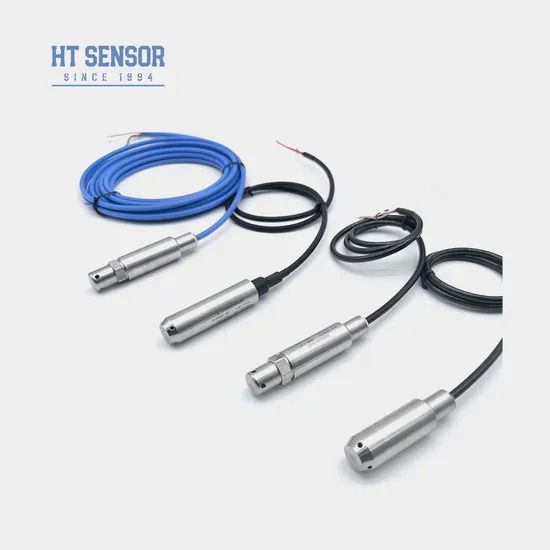

Sensor Level Air 4-20mA 0-400mH2O Rentang IP68 Baja Tahan Karat
Product Details
| Model No.: | BH93420-I | Rentang tekanan: | 0-1m-400 mH2O |
|---|---|---|---|
| Nilai akurasi: | 00,25%,00,5% | Peringkat IP: | IP68 |
| Berat bersih: | 0,3kg | Bahan diafragma: | 316L stainless steel |
| Bahan perumahan: | 304S.S | Keluaran: | 4-20mA |
| Kekuatan: | 24VDC | Rentang pengukuran: | 0 ~ 10m… 400MH2O |
| Suhu operasi: | -20 ~ 80oC | Suhu penyimpanan: | -30 ~ 100ºC |
| Resistensi isolasi: | > = 100mΩ@100VDC | Peringkat tahan ledakan: | ExiaIICT6 |
| Bahan kabel: | Polietilen, poliuretan | ||
| Menyoroti |
4-20mA sensor tingkat air,Transmitter tingkat stainless steel,Sensor level tahan air IP68 |
||
Product Description
- Rumah baja tahan karat penuh untuk daya tahan dalam lingkungan yang beragam
- Desain probe tipe perendaman untuk pemasangan yang mudah
- Beberapa opsi sinyal output untuk kompatibilitas sistem
- Sertifikasi tahan ledakan: ExiaIICT6
- Peringkat perlindungan tinggi: IP68
- Tersedia dengan pilihan kabel PE atau PU
- Kompatibel dengan 316L stainless steel dan cairan non-korosif
- Pemantauan tingkat air di sistem limbah, air industri, pasokan air kota, tangki, sumur, sungai, air laut dan danau
- Pengukuran tingkat bahan bakar di tangki diesel dan tangki penyimpanan bahan bakar
| Parameter | Spesifikasi |
|---|---|
| Jangkauan pengukuran | 0~10m...400mH2O |
| Jenis Tekanan | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Overload | ≤ 2X rentang nominal |
| Keakuratan @ 25oC | ± 0,25% (Biasa) ± 0,5% (Max.) |
| Kemungkinan diulang | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Hysteresis | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Stabilitas Jangka Panjang | ± 0,2% F.S/tahun (Max.) |
| Pergeseran Suhu Nol | ± 0,01% FS/oC ((> 100KPa), ± 0,02% FS/oC (≤ 100Kpa) |
| Pergeseran Suhu Span | ± 0,01% FS/oC ((> 100KPa), ± 0,02% FS/oC (≤ 100Kpa) |
| Suhu Kompensasi | 0-50oC (0-1m. 0-2m); 0-70oC |
| Suhu operasi | -20 ~ 80oC |
| Suhu penyimpanan | -30 ~ 100oC |
| Getaran | 10g,55Hz ~ 2kHz |
| Bahan perumahan | 1Cr18Ni9Ti |
| Bahan diafragma | 316L Baja tahan karat |
| Resistensi Isolasi | >=100MΩ@100VDC |
| Klasifikasi tahan ledakan | ExiaIICT6 |
| Peringkat Perlindungan | IP67, IP68 |
| Segel O-Ring | Karet fluoro |
| Berat badan | ~0.3Kg (tanpa kabel) |
| Bahan Kabel | Polyethylene, Polyurethane |
| Sinyal output | Tegangan Pasokan | Jenis output |
|---|---|---|
| 4 ~ 20mA | 12 ~ 30VDC | 2/3/4 kawat |
| 0~10/20mA | 3 kawat | |
| 0/1 ~ 5V | 5VDC | |
| 0/1 ~ 10V | ||
| 0.5 ~ 4.5V | ||
| Protokol Komunikasi RS485 |
- Memverifikasi kompatibilitas antara media yang diukur dan bahan produk
- Tentukan kepadatan media yang diukur
- Untuk lingkungan dengan gangguan elektromagnetik atau frekuensi radio yang kuat, berikan rincian dengan pesanan Anda
- Menginstal perangkat perlindungan petir dan memastikan grounding yang tepat untuk operasi yang andal
| Kategori | Kode | Opsi |
|---|---|---|
| Desain Konstruksi | Aku | Sensor Tingkat Air |
| Jangkauan pengukuran | 0~10m...400mH2O | |
| Sumber Daya | D1 | 24VDC |
| D2 | 5VDC | |
| D3 | lainnya | |
| Sinyal output | S1 | 4 ~ 20mADC |
| S2 | 1 ~ 5VDC | |
| S3 | 0 ~ 5VDC | |
| S4 | 0 ~ 10mADC | |
| S5 | 0 ~ 20mADC | |
| S6 | 0 ~ 10VDC | |
| S7 | 0.5~4.5VDC | |
| S8 | RS485 | |
| Jenis Tekanan | G | Tekanan pengukur |
| A | Tekanan mutlak | |
| S | Tekanan referensi tertutup | |
| Bahan | 01 | 304 Baja tahan karat |
| 02 | 316L Baja tahan karat | |
| Bahan Kabel | C1 | PE |
| C2 | PU |
