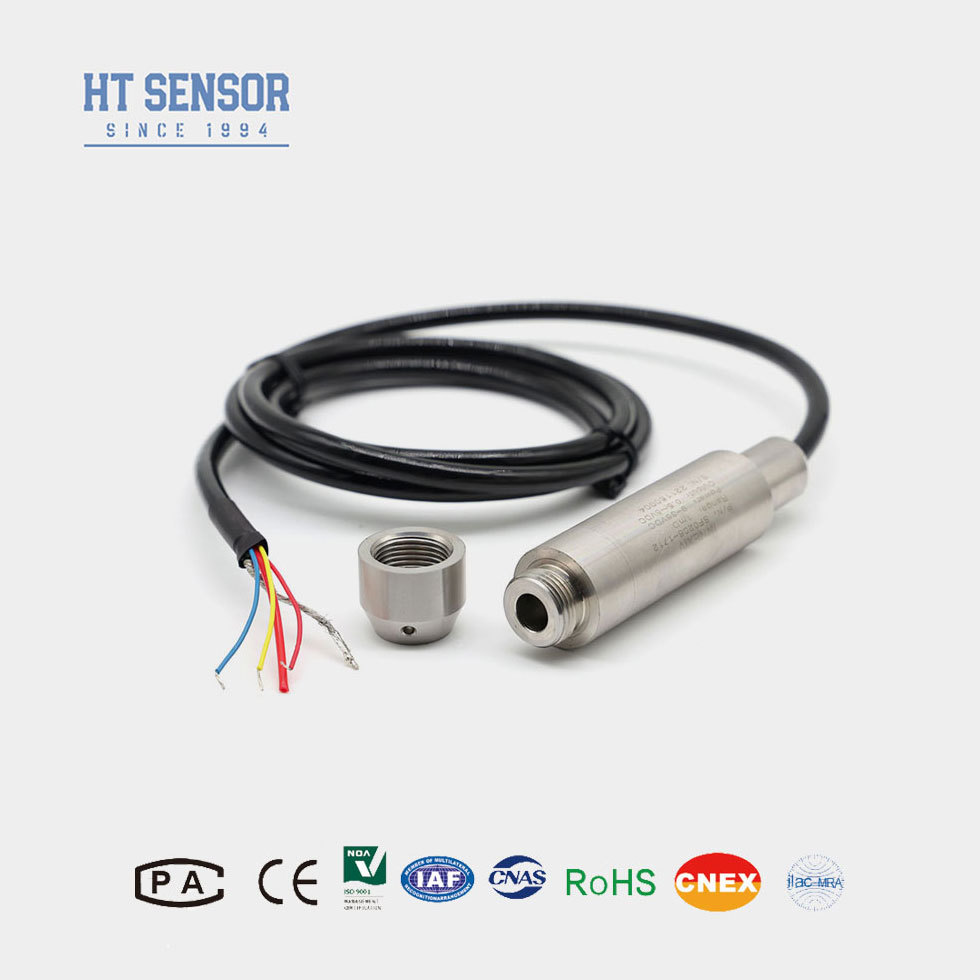

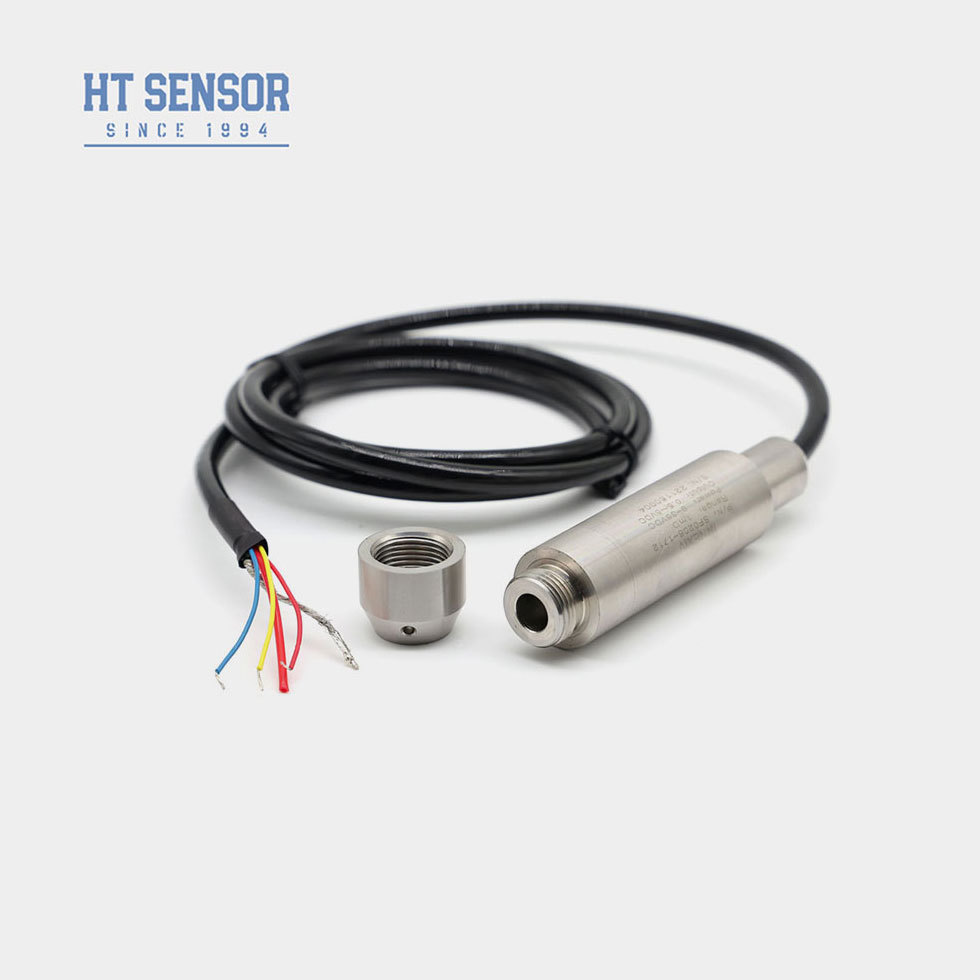

Transmitter Tingkat Air Renang dengan Inti Terisi Minyak Isolasi Piezoresistif Seri HT untuk Pengukuran Tingkat yang Tepat
Product Details
| Rentang tekanan: | 0-1m-400 mH2O | Nilai akurasi: | 00,25%,00,5% |
|---|---|---|---|
| Peringkat IP: | IP68 | Berat bersih: | 0,3kg |
| Bahan diafragma: | 316L stainless steel | Bahan perumahan: | 304S.S |
| Sinyal keluaran: | 4-20mA | Catu daya: | 24VDC |
| Rentang pengukuran: | 0 ~ 10m… 400m | Kapasitas kelebihan beban: | ≤ 2x kisaran pengenal |
| Pengulangan: | ± 0,03% (Typ.) ± 0,05% FS (maks.) | Suhu operasi: | -20 ~ 80oC |
| Suhu penyimpanan: | -30 ~ 100ºC | Resistensi isolasi: | > = 100mΩ@100VDC |
| Peringkat tahan ledakan: | ExiaIICT6 | ||
| Menyoroti |
IP68 water level transmitter,400mH2O water level sensor,4-20mA output level transmitter |
||
Product Description
- Perumahan stainless steel penuh, cocok untuk berbagai lingkungan pengujian
- Pengukuran probe tipe perendaman untuk pemasangan yang mudah
- Opsi sinyal keluaran yang beragam
- Penandaan anti ledakan: exiaiict6
- Tingkat Perlindungan Tinggi: IP68
- Opsi kabel PE atau PU
- Kompatibel dengan 316LS dan cairan non-korosif
- Memantau ketinggian air di limbah, air industri/kota, tangki, sumur, sungai, air laut, dan danau
- Mengukur tingkat bahan bakar di diesel dan tangki bahan bakar
| Rentang pengukuran | 0 ~ 10m ... 400m |
| Jenis tekanan | Tekanan pengukur, tekanan absolut, tekanan tertutup |
| Kelebihan muatan | ≤ 2x kisaran pengenal |
| Akurasi @ 25ºC | ± 0,25% (Typ.) ± 0,5% (maks.) |
| Pengulangan | ± 0,03% (Typ.) ± 0,05% FS (maks.) |
| Histeresis | ± 0,03% (Typ.) ± 0,05% FS (maks.) |
| Stabilitas jangka panjang | ± 0,2%FS/tahun (maks.) |
| Nol suhu melayang | ± 0,01%FS/ºC (> 100kPa), ± 0,02%FS/ºC (≤100kPa) |
| Rentang suhu penyimpangan | ± 0,01%FS/ºC (> 100kPa), ± 0,02%FS/ºC (≤100kPa) |
| Suhu kompensasi | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Suhu operasi | -20 ~ 80ºC |
| Suhu penyimpanan | -30 ~ 100ºC |
| Getaran | 10g, 55Hz ~ 2kHz |
| Bahan perumahan | 1CR18NI9TI |
| Bahan diafragma | 316L stainless steel |
| Resistensi isolasi | > = 100mΩ@100VDC |
| Peringkat tahan ledakan | Exiaict6 |
| Peringkat Perlindungan | IP67, IP68 |
| Segel o-ring | Karet fluoro |
| Berat | ~ 0,3kg (tanpa kabel) |
| Bahan kabel | Polietilen, poliuretan |
| Sinyal keluaran | Tegangan suplai | Tipe output |
|---|---|---|
| 4 ~ 20mA | 12 ~ 30VDC | 2/3/4 Wire |
| 0 ~ 10/20mA | 3 kawat | |
| 0/1 ~ 5V | 5VDC | |
| 0/1 ~ 10V | ||
| 0.5 ~ 4.5V | ||
| Protokol Komunikasi RS485 |
- Pastikan media yang diukur kompatibel dengan komponen produk
- Tentukan kepadatan media yang diukur
- Untuk lingkungan gangguan elektromagnetik/RF yang kuat, berikan detailnya
- Pasang perangkat perlindungan petir dan pastikan pentanahan yang tepat
| Kode | Keterangan |
|---|---|
| BH93420 | Pemancar tekanan |
| SAYA | Kisaran Pengukuran: 0 ~ 10m ... 400m |
| D1 | Catu Daya: 24VDC |
| D2 | Catu Daya: 5VDC |
| D3 | Catu Daya: Lainnya |
| S1 | Sinyal Output: 4 ~ 20MADC |
| S2 | Sinyal Output: 1 ~ 5VDC |
| S3 | Sinyal Output: 0 ~ 5VDC |
| S4 | Sinyal Output: 0 ~ 10MADC |
| S5 | Sinyal Output: 0 ~ 20MADC |
| S6 | Sinyal Output: 0 ~ 10VDC |
| S7 | Sinyal Output: 0,5 ~ 4.5VDC |
| S8 | Sinyal Output: RS485 |
| G | Jenis Tekanan: Tekanan pengukur |
| A | Jenis tekanan: tekanan absolut |
| S | Jenis Tekanan: Tekanan Referensi Tertutup |
| 01 | Bahan: 304 stainless steel |
| 02 | Bahan: 316L stainless steel |
| C1 | Bahan Kabel: PE |
| C2 | Bahan Kabel: PU |
Product Highlights
Pemancar level cairan submersible BH93420i BH93420-I adalah pemancar ketinggian air yang menggunakan inti isolasi piezoresistif ht piezoresistif sebagai elemen pengukur sinyal. Dirancang dengan rumah baja tahan karat penuh dan struktur one-piece yang ringkas, bagian penginderaan sepenuhnya disegel ...
