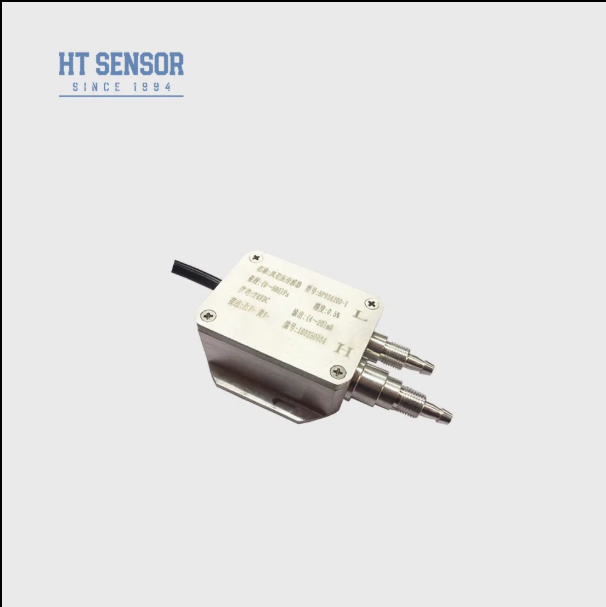

Sensor Tekanan Diferensial Hengtong IP65 500PA~200kpa 24VDC untuk Pemancar Tekanan Angin Udara
Product Details
| Bukti Air: | IP65,IP66,IP67,IP68 opsional | Media pengukur: | gas atau cair |
|---|---|---|---|
| Jenis pemasangan: | Langsung atau jauh | Jenis Pemancar: | Pemancar tekanan kapasitif |
| Jenis: | Elektronik | Ukuran port: | 1/4 npt |
| Kontak: | Φ 6 mulut pagoda h59 tembaga | Kualitas: | Kualitas tinggi |
| Jaminan: | 2 tahun | Paket transportasi: | Pengemasan Ekspor Standar dengan Karton |
| Sambungan Listrik: | M20*1.5 | Bahan yang dibasahi: | baja tahan karat |
| Kapiler: | Ya | Kustomisasi: | OEM |
| Variabel sekunder: | Tekanan statis | ||
| Menyoroti |
Sensor tekanan diferensial IP65,500PA ~ 200kpa Pressure Transmitter,Transmitter tekanan diferensial 24VDC |
||
Product Description
BP93420D-I pemancar tekanan diferensial memanfaatkan efek piezoresistif dari bahan silikon semikonduktor untuk mengubah tekanan diferensial menjadi sinyal listrik.Dirancang untuk mengukur tekanan diferensial kecil dari gas kering yang tidak korosif, itu ideal untuk aplikasi dalam pasokan udara boiler, ventilasi bawah tanah, dan pemantauan tekanan kamar bersih.
| Nomor Model | BP93420D-I |
|---|---|
| Mengukur Medium | Gas |
| Tingkat Keakuratan | 1.0G |
| Jangkauan Tekanan | 500PA ~ 200kpa |
| Peringkat IP | IP65 |
| Sumber Daya | 24VDC |
| Sinyal output | 4-20mA /0-10VDC |
| Bahan perumahan | Paduan aluminium |
| Hubungan | φ6 nozel udara |
- Tersedia dalam pilihan casing aluminium atau plastik
- Desain ringan untuk pemasangan yang mudah
- Diuji secara ketat untuk operasi dalam kisaran suhu yang luas (-20oC sampai 80oC)
- Keakuratan tinggi (± 0,5% khas)
- Peringkat perlindungan IP65 untuk daya tahan
- Sistem pasokan udara boiler
- Ventilasi industri pertambangan
- Fasilitas pembangkit listrik
- Kontrol proses industri pembuatan bir
- Pemantauan tekanan kamar bersih
| Jangkauan pengukuran | 0-500Pa sampai 0-200KPa (berbagai rentang tersedia) |
|---|---|
| Jenis Tekanan | Tekanan Diferensial |
| Tekanan statis | 2 kali rentang nominal |
| Kapasitas Overload | ≤ 1,5 kali rentang nominal |
| Keakuratan @ 25oC | ±0,5% (Biasa) / ±1% (Maximum) |
| Pergeseran Suhu | ±2,5% F.S/oC (Biasa) / ±3% F.S/oC (Maximum) |
| Suhu operasi | -20oC sampai 80oC |
| Suhu penyimpanan | -40oC sampai 100oC |
| Ukuran Paket | 14.20cm × 5.50cm × 8.00cm |
|---|---|
| Berat Bruto | 0.250kg |
| Paket Pengangkutan | Kotak |
