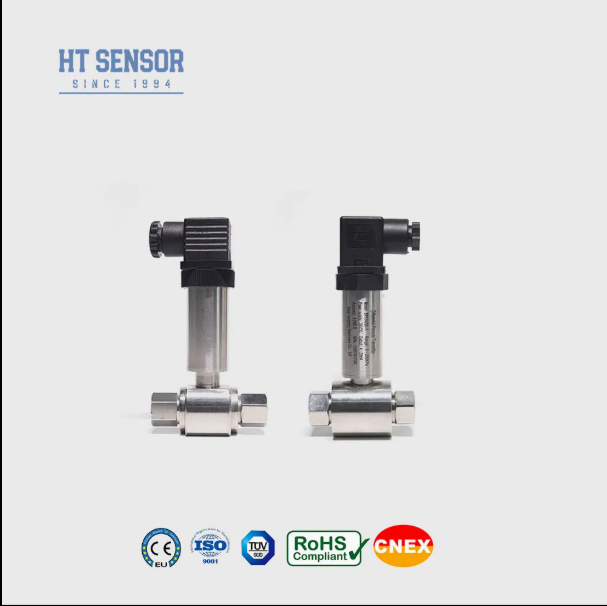

BP93420-IQT High Temperature Resistance Flush Pressure Transmitter Sensor for Hygienic Applications with Fast Response Speed and Long Service Life
Product Details
| Menyoroti |
Hygienic Applications Pressure Transmitter Sensor,Fast Response Speed Flush Pressure Sensor,Long Service Life Pressure Transducer |
||
|---|---|---|---|
Product Description
- High precision measurement
- Simple installation process
- No direct medium contact
- Excellent corrosion resistance
- Strong anti-interference capability
- High temperature adaptability
- Multiple output signal options
- Extended service life due to non-contact design
- Measurement of non-corrosive gases and liquids with 316L compatibility
- Environmental protection and chemical industries
- Marine and aviation applications
- Medical, biopharmaceutical, and food hygiene industries
| Parameter | Specification |
|---|---|
| Measurement Range | 0~35Kpa…~3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.55kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Connection Type |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
- Ensure medium compatibility with product contact parts
- Note that explosion-proof models exclude digital display heads
- For LCD/LED displays, power supply should be ≥20VDC
- Install lightning protection devices and ensure proper grounding
- Fluoro rubber O-ring operates between -20ºC to 250ºC (use EPDM for lower temperatures)
- Default cable length is 1.5m (polyethylene material)
- Specify special requirements (vibration, impact, EMI/RFI) when ordering
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service. - Q: What is your production capacity?
A: Up to 30,000 units/month. Contact sales for large orders. - Q: What's the typical delivery period?
A: 5-8 working days for standard models (custom products may vary). - Q: How are the products priced?
A: Competitive pricing with bulk order discounts available. - Q: What is the warranty and after-sales service?
A: 24-month warranty with 24-hour response time for support queries.
