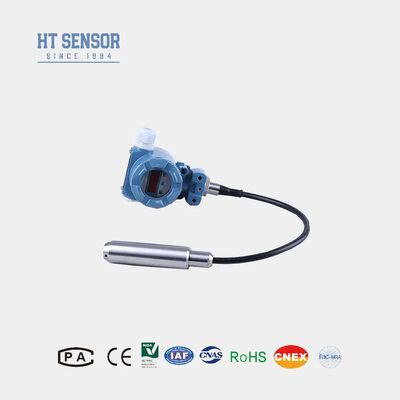

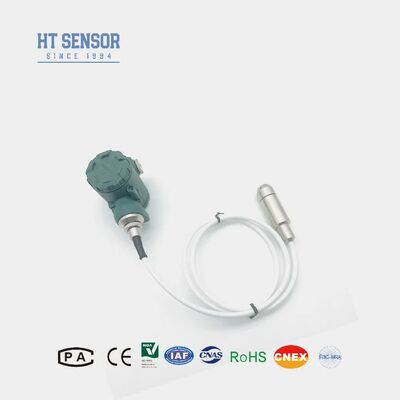

316L Stainless Steel IP68 Waterproof Liquid Level Transmitter dengan output 4-20mA untuk tangki air dan bahan bakar
Product Details
| Sinyal Keluaran: | 4-20mA atau RS485 | Peringkat IP: | IP68 |
|---|---|---|---|
| Berat bersih: | 0.3KG | Bahan Diafragma: | Baja Tahan Karat 316L |
| Ketepatan: | 0,25%, 0,5% | Bahan kabel: | PE, PU, PTFE |
| Rentang Pengukuran: | 0 ~ 10m… 400m | Jenis tekanan: | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Kelebihan muatan: | ≤ 2x kisaran pengenal | Suhu Operasional: | -20 ~ 80oC |
| Suhu Penyimpanan: | -30 ~ 100ºC | Bahan Perumahan: | Cast aluminium, 1cr18ni9ti |
| Resistensi Isolasi: | > = 100mΩ@100VDC | Peringkat tahan ledakan: | ExiaIICT6 |
| Berat: | ~1,5Kg (tanpa kabel) | ||
| Menyoroti |
Pemancar Tingkat Cairan Baja Tahan Karat 316L,Sensor Ketinggian Air Tahan Air IP68,Sensor Level Tangki Bahan Bakar Keluaran 4-20mA |
||
Product Description
- Desain tipe split untuk pengkabelan dan kalibrasi di tempat yang mudah
- Tampilan LED terintegrasi
- Klasifikasi tahan ledakan: ExiaIICT6
- Peringkat perlindungan tinggi: IP68
- Pilihan kabel: PE, PU, PTFE
- Kompatibel dengan 316LSS dan cairan tidak korosif
- Pemantauan tingkat air di limbah, sistem air industri dan kota, tangki air, sumur, sungai, air laut dan danau
- Pemantauan tingkat tangki diesel, bahan bakar, dan minyak lainnya
| Parameter | Spesifikasi |
|---|---|
| Jangkauan pengukuran | 0 ~ 10m... 400m |
| Jenis Tekanan | Tekanan pengukur, Tekanan absolut, Tekanan tertutup |
| Overload | ≤ 2X rentang nominal |
| Keakuratan @ 25oC | ± 0,25% (Biasa) ± 0,5% (Max.) |
| Kemungkinan diulang | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Hysteresis | ± 0,03% (Biasa) ± 0,05%FS (Max.) |
| Stabilitas Jangka Panjang | ± 0,15% F.S/tahun (Max.) |
| Pergeseran Suhu Nol | ± 0,01% FS/oC ((> 100KPa), ± 0,02% FS/oC (≤ 100Kpa) |
| Pergeseran Suhu Span | ± 0,01% FS/oC ((> 100KPa), ± 0,02% FS/oC (≤ 100Kpa) |
| Suhu Kompensasi | 0-50oC (0-1m. 0-2m); 0-70oC |
| Suhu operasi | -20 ~ 80oC |
| Suhu penyimpanan | -30 ~ 100oC |
| Getaran | 10g,55Hz ~ 2kHz |
| Kejutan | 100 g |
| Bahan perumahan | Aluminium tuang, 1Cr18Ni9Ti |
| Bahan diafragma | 316L Baja tahan karat |
| Resistensi Isolasi | >=100MΩ@100VDC |
| Klasifikasi tahan ledakan | ExiaIICT6 |
| Peringkat Perlindungan | IP68 |
| Segel O-Ring | Karet fluoro |
| Berat badan | ~1,5Kg (tanpa kabel) |
| Bahan Kabel | Kabel polietilen, poliuretan, PTFE |
| Sinyal output | Tegangan Pasokan | Jenis output |
|---|---|---|
| 4 ~ 20mA | 15 ~ 30VDC | 2/3/4 kawat |
| Protokol Komunikasi RS485 | 4 kawat |
- Memastikan kompatibilitas medium yang diukur dengan komponen produk
- Tentukan kepadatan medium yang diukur
- Untuk gangguan elektromagnetik atau frekuensi radio yang kuat, berikan rincian
- Menginstal perangkat perlindungan petir dan memastikan grounding yang handal
Product Highlights
Pemancar tingkat BH93420-III menawarkan pengukuran presisi tinggi (±0,25%) untuk tangki air, solar, dan bahan bakar. Dilengkapi perlindungan IP68, peringkat tahan ledakan ExiaIICT6, diafragma baja tahan karat 316L, dan output 4-20mA/RS485. Desain khusus tersedia untuk aplikasi industri.
