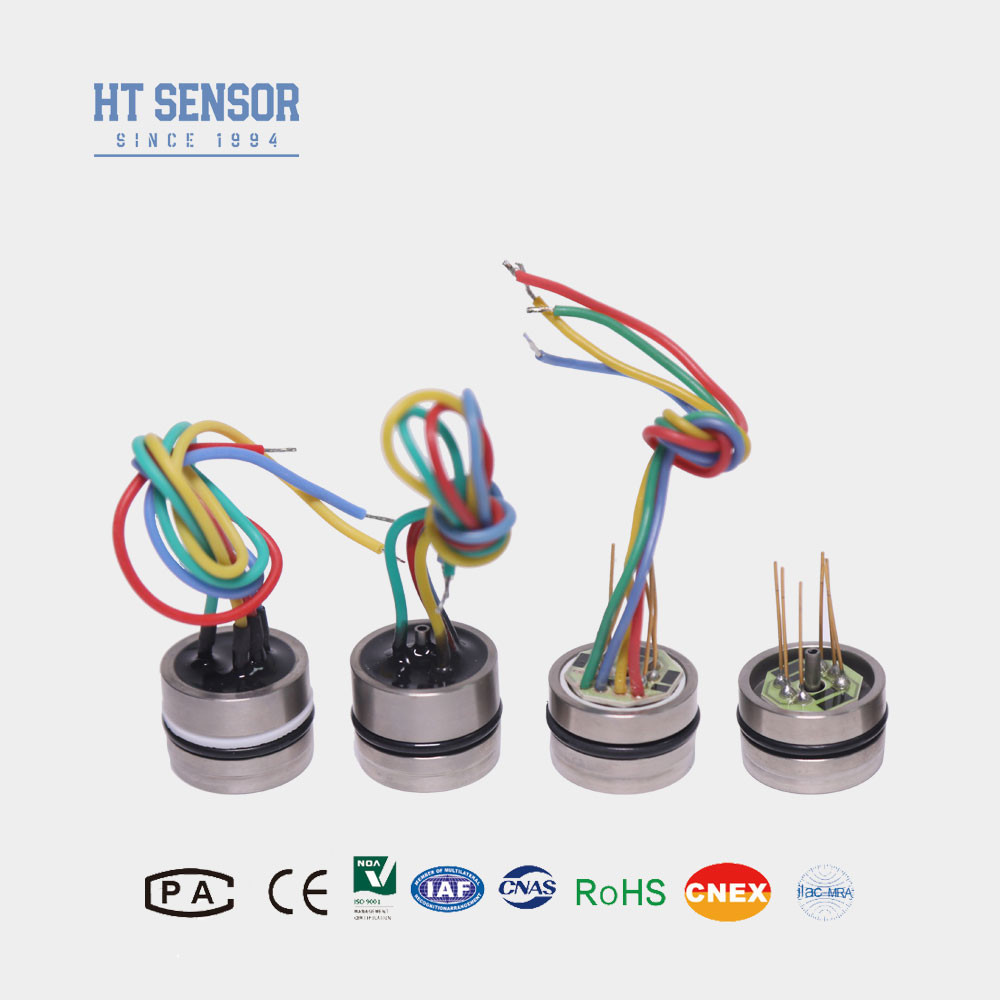

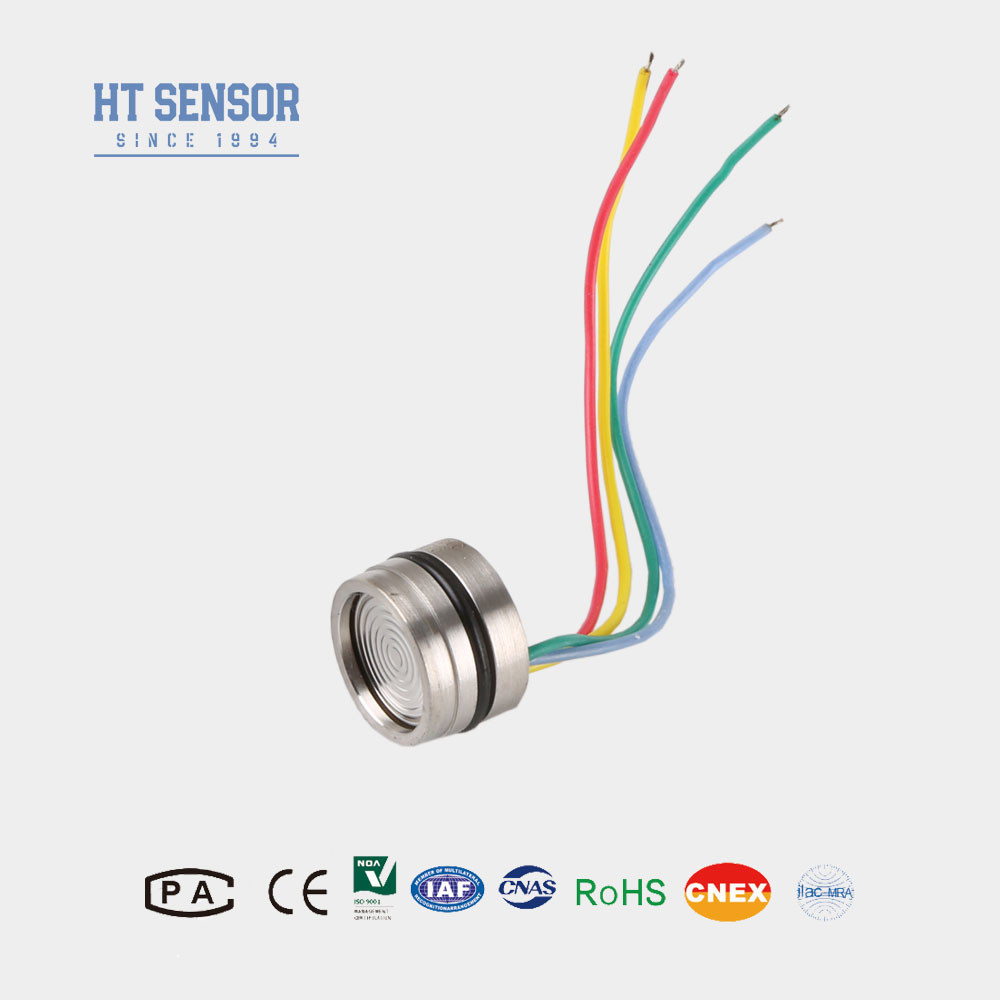

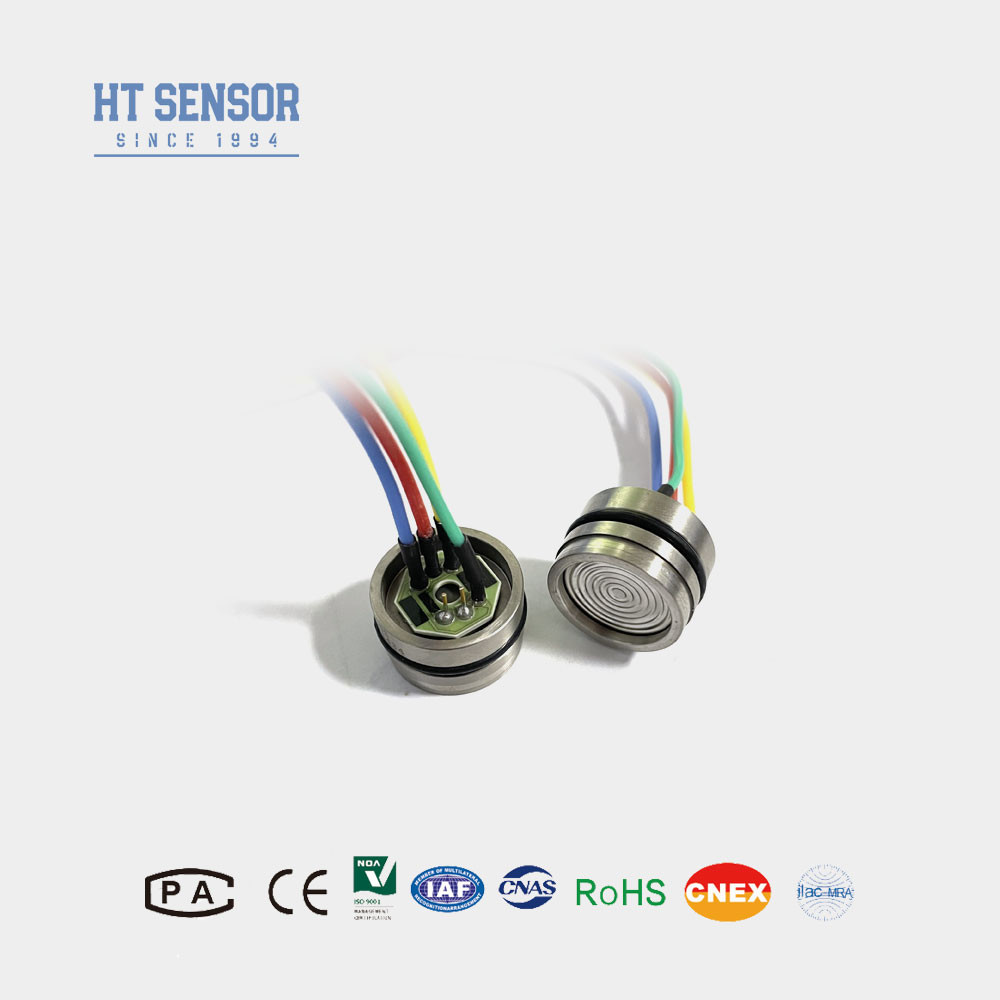

HT19V Diffusion Silicon Piezoresistive Pressure Sensor 5VDC Sensor Tingkat Udara Cairan
Product Details
| Nomor Model.: | HT19V | Jenis Thread: | TIDAK |
|---|---|---|---|
| Jenis kabel: | Empat Kawat | Media pengukur: | Gas dan cair |
| Jangkauan: | 0-10kpa ~ 60mpa | Keluaran: | MV |
| Jenis tekanan: | G/A/S | Memasok: | 5-10VDC |
| Kode Hs: | 9026209090 | Menyediakan kemampuan: | 20000pcs/bulan |
| Jenis: | Sensor Tekanan Piezoresistif | Bahan: | Baja tahan karat |
| Kustomisasi: | Tersedia OEM dan ODM | ||
| Menyoroti |
5VDC Diffusion Silicon Piezoresistive Pressure Sensor,Sensor Tekanan Piezoresistif Silikon Diffusi Cairan,Sensor Tingkat Udara Cairan 5VDC |
||
Product Description
Sensor Tekanan Piezoresistif Silikon HT19V 5VDC Sensor Level Udara Cair
Sensor Tekanan Piezoresistif Silikon HT19V
Pengantar sensor tekanan silikon:
HT19V menggunakan elemen silikon difusi yang sangat stabil, menjadikannya sensor tekanan piezoresistif silikon yang andal. Dengan menggunakan diafragma isolasi dan minyak silikon, sensor dapat mengukur tekanan cairan dan gas secara akurat, memberikan hasil yang presisi. Catu daya tegangan konstan mengkompensasi hanyutan suhu produk, yang sangat mengurangi dampak perubahan suhu. Aplikasinya yang luas pada kompresor udara dan sistem pendingin menjadikannya aset berharga di berbagai industri.
Fitur Produksensor tekanan silikon:
1. Rangkaian film tebal digunakan untuk kompensasi suhu dan koreksi offset nol.
2. Keandalan tinggi, stabilitas yang baik.
3. Catu daya tegangan konstan, output standar.
Aplikasisensor tekanan silikon:
1. Cocok untuk mengukur tekanan gas dan cairan korosif, kompatibel dengan baja tahan karat 316 l
2. Digunakan dalam sistem kontrol proses untuk memantau dan mengontrol tekanan.
3. Sering digunakan dalam pengukuran tekanan sistem pendingin dan kompresor udara.
Kinerja listriksensor tekanan silikon:
1. Catu Daya: ≤10VDC
2. Output Tegangan Mode Umum: 50% dari input (tipikal)
3. Impedansi Input: 4KΩ~20KΩ
4. Impedansi Output: 2.5KΩ~6KΩ
5. Koneksi Listrik: Kabel suhu tinggi 100mm, kabel pita
| Parameter Kinerjasensor tekanan silikon:. | ||||||
| Rentang Pengukuran | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | ||||
| Absolut(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | |||||
| Tertutup(S) | 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPaS,100MPaS | |||||
| Typ | Maks | Satuan | ||||
| NonLinearitas | ±0.15 | ±0.3 | %F.S | |||
| Keterulangan | 0.05 | 0.1 | %F.S | |||
| Histeresis | 0.05 | 0.1 | %F.S | |||
| Output Offset Nol | 0±1 | 0±2 | mV | |||
| Output Skala Penuh | ≤20KPa | 50±1 | 50±2 | mV | ||
| ≥35kPa | 100±1 | 100±2 | mV | |||
| Hanyutan Suhu Offset Nol | ≤20KPa | ±1 | ±2.5 | %F.S | ||
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |||
| Hanyutan Suhu Skala Penuh | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.8 | ±1.5 | %F.S | |||
| Suhu Kompensasi | ≤20KPa | 0~50 | ºC | |||
| ≥35kPa | 0~70 | ºC | ||||
| Suhu Operasi | -20~80 | ºC | ||||
| Suhu Penyimpanan | -40~125 | ºC | ||||
| Kelebihan Beban yang Diizinkan | Ambil nilai yang lebih kecil antara 3 kali skala penuh atau 120MPa | |||||
| Tekanan Pecah | 5X skala penuh | |||||
| Stabilitas Jangka Panjang | 0.2 % | F.S/Tahun | ||||
| Material Diafragma | 316L | |||||
| Resistansi Isolasi | ≥200MΩ 100VDC | |||||
| Getaran | Tidak ada perubahan dalam kondisi 10gRMS, 20Hz hingga 2000Hz | |||||
| Guncangan | 100g,11ms | |||||
| Waktu Respons | ≤1ms | |||||
| Segel O-ring | Karet Nitril atau Karet Fluoro | |||||
| Media Pengisi | Minyak Silikon | |||||
| Berat | ~28g | |||||
| Parameter diuji dalam kondisi berikut: 10V @ 25ºC | ||||||
| Konstruksi Garis Besarsensor tekanan silikon | |
| <3.5MPaS |  |
| ≥3.5MPaS <40MPaS |
|
| ≥40MPaS | |
| Koneksi listrik dan kompensasisensor tekanan silikon |
|
|
| Contoh Pemilihan |
| Tips Pemesanan |
| T&J |
.
.
