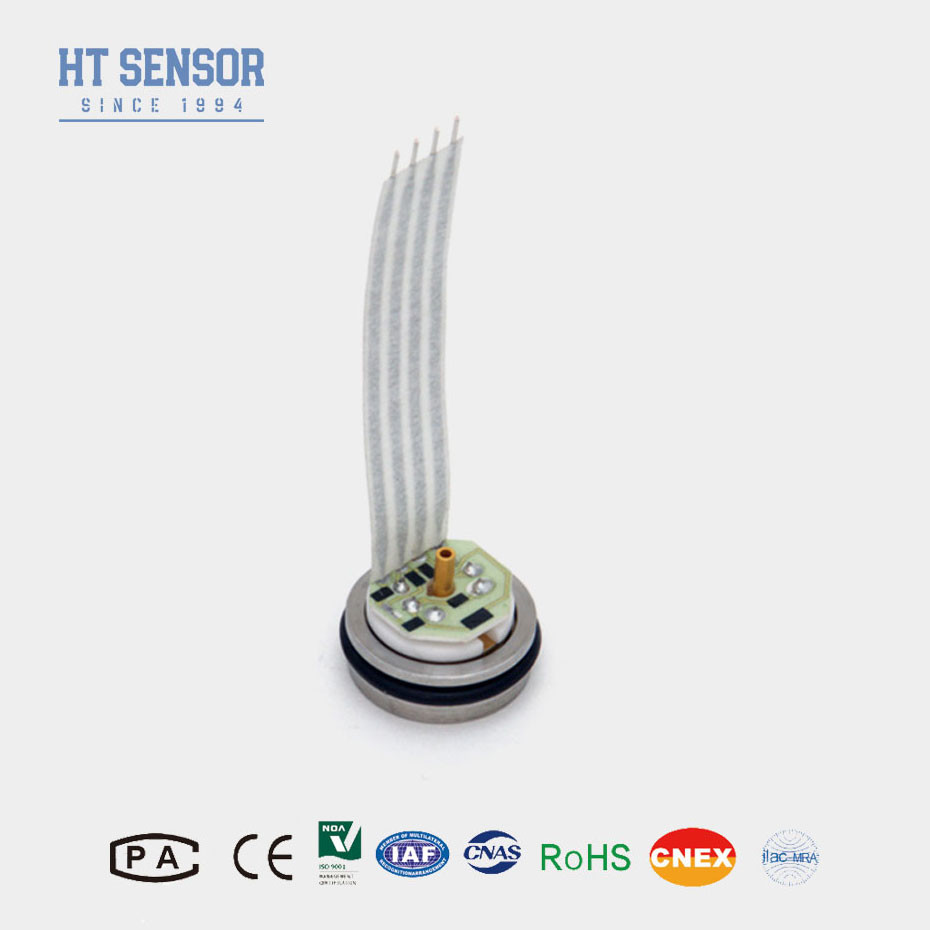

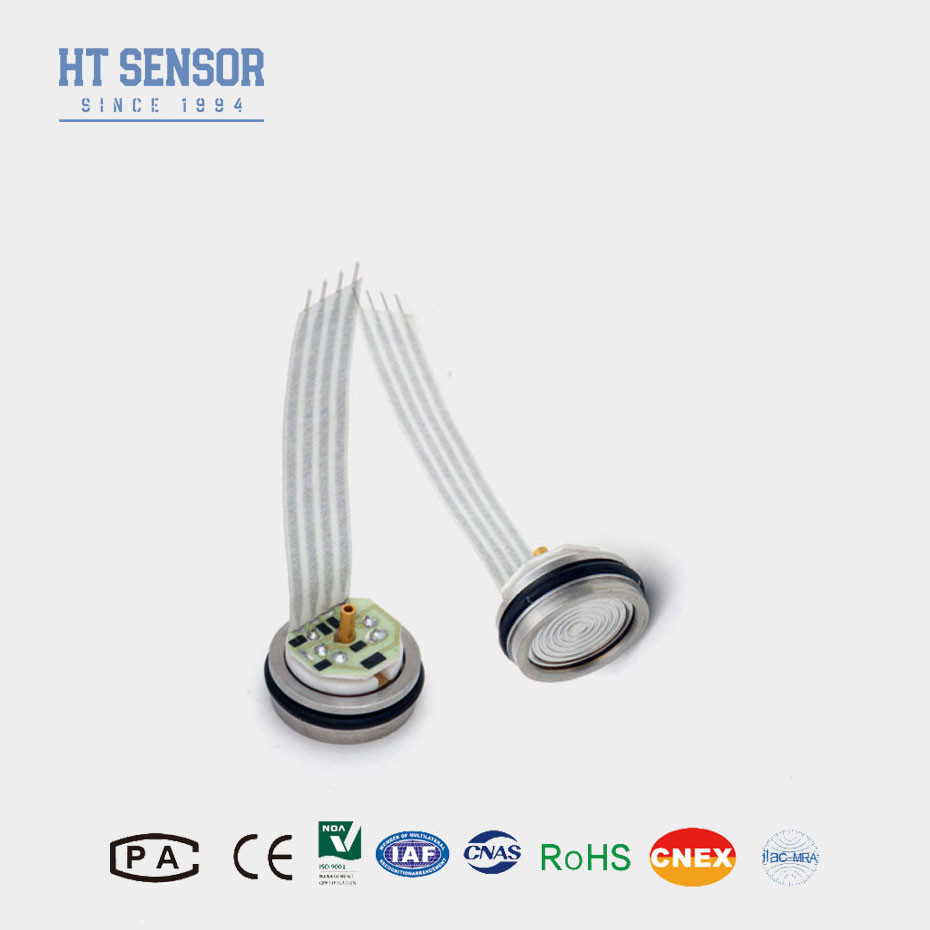

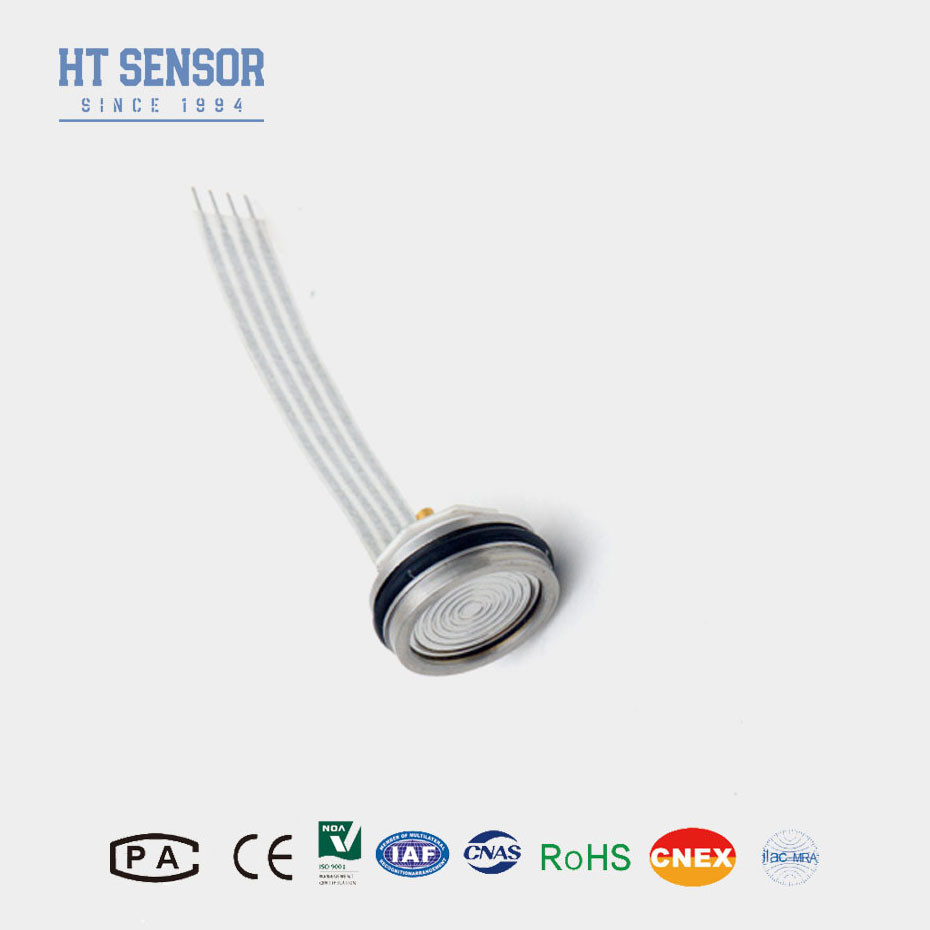

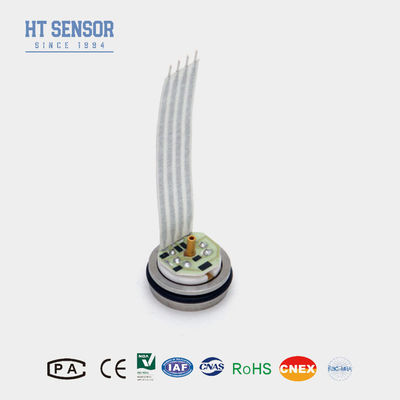

HT26 1.5mA 100mv Silicon Piezoresistive Pressure Sensor dengan kawat silikon empat warna yang dapat dipilih
Product Details
| Bahan: | 316L | Rentang Min: | -100kpa |
|---|---|---|---|
| Rentang Maks: | 60MPa | Memasok: | 1,5mA |
| Output: | 100mv+-30mv | Dapat dipilih: | Kawat silikon empat warna atau pin berlapis emas |
| Model: | HT26 | Tinggi: | 11,2 mm |
| Minyak: | silikon difusi | Benang: | Tidak. |
| Menyoroti |
1.5mA Silicon Piezoresistive Pressure Sensor,100mV Silicon Piezoresistive Pressure Sensor |
||
Product Description
HT26 Diffused Silicon Pressure Sensor Piezoresistive Pressure Sensor
Pengenalan sensor tekanan silikon:
Inti dari sensor tekanan piezoresistif silikon HT26 adalah elemen silikon difusi yang sangat stabil.sensor tekanan silikon piezoresistif dikemas dalam karung baja tahan karat 316LHT26 dikompensasi ditawarkan dalam paket las atau dengan berbagai fittings berujung seperti 1/4 dan 1/8NPT, 1/4BSP serta fittings proses kustom.
Fitur produk darisensor tekanan silikon:
1. Profil kecil
2Menggunakan sirkuit film tebal untuk kompensasi suhu dan titik nol
koreksi
3Keandalan yang luar biasa, repeatability, dan stabilitas
4. Tinggi 7mm, dapat disesuaikan
Aplikasidari sensor tekanan silikon:
1Pengolahan Air dan Air Limbah: Pemantauan tingkat di tangki, sumur, dan waduk.
2Pengolahan Kimia: Pengukuran tingkat berbagai bahan kimia dalam tangki penyimpanan.
3.Tank industri: Cocok untuk pemantauan tingkat bahan bakar, minyak, dan cairan lainnya.
Data listrik dari sensor tekanan silikon
Pasokan:1.5mADC Impedansi masukan:3KΩ~6KΩ
Impedansi output:2.5KΩ~6KΩ Resistensi isolasi:≥100MΩ/50VDC
Tegangan isolasi: 500VAC antara rumah dan koneksi listrik tidak akan menyebabkan kerusakan
Medium kompatibel: cair, gas kompatibel dengan 316L stainless steel
Spesifikasi kinerja dari sensor tekanan silikon
| Parameter |
Jangkauan: 0 ~ 10 KPa, 20 KPa, 35 KPa, 100 KPa, 200 KPa, 350 KPa, 700 KPa, 1MPa, 2MPa,3.5 MPa, 7 MPa, 10 MPa, 20 MPa, 40 MPa, 60 MPa, 100 MPa |
|||
| Tipikal | Max, aku akan pergi. | Satuan | ||
| Tekanan Non-linearitas |
± 0.15 |
± 0.3 | % F.S | |
| Repeatability Tekanan dan Hysteresis | 0.02 | 0.05 | % F.S | |
| Zero Output | 0±1 | 0 ± 2 | mV | |
| Output Span | ≤ 20KPa | 50 ± 10 | 50 ± 30 | mV |
| ≥ 35 KPa | 100 ± 10 | 100 ± 30 | mV | |
| Kesalahan suhu-nol | ≤ 20KPa | ± 1 | ± 2 | % F.S |
| ≥ 35 KPa | ± 0.5 | ± 1 | % F.S | |
| Suhu Kesalahan-Span | ≤ 20KPa | ± 1 | ± 2 | % F.S |
| ≥ 35 KPa | ± 0.5 | ± 1 | % F.S | |
| Tekanan Bukti | 3X Jangkauan nominal atau 120MPa, mana yang lebih rendah | ------- | ||
| Jangkauan suhu operasi | -20 ~ 80 | °C | ||
| Rentang Suhu Kompensasi | 0~70, 0~50 ((Range≤20KPa) | °C | ||
| Rentang suhu penyimpanan | -40 ~ 125 | °C | ||
Catatan:Parameter di atas dalam kondisi:Sumber: 1,5mA Suhu: 25°C
Koneksi listrik dan kompensasi
