HT19V Diffusion Silicon Piezoresistive Pressure Sensor 10VDC Sensor Tingkat Cairan
Product Details
| Model NO.: | HT19V | Jenis Benang: | Tidak. |
|---|---|---|---|
| Jenis kabel: | Empat Kawat | Media pengukur: | Gas dan cair |
| Jangkauan: | 0-10kpa~60mpa | Output: | MV |
| Jenis tekanan: | G/A/S | Memasok: | 5-10VDC |
| Kode Hs: | 9026209090 | Menyediakan kemampuan: | 20000pcs/bulan |
| Jenis: | Sensor Tekanan Piezoresistif | Bahan: | Baja tahan karat |
| Pengaturan khusus: | Tersedia OEM dan ODM | ||
| Menyoroti |
HT19V Diffusion Silicon Piezoresistive Pressure Sensor,10VDC Silicon Piezoresistive Pressure Sensor,Sensor Tingkat Cairan 10VDC |
||
Product Description

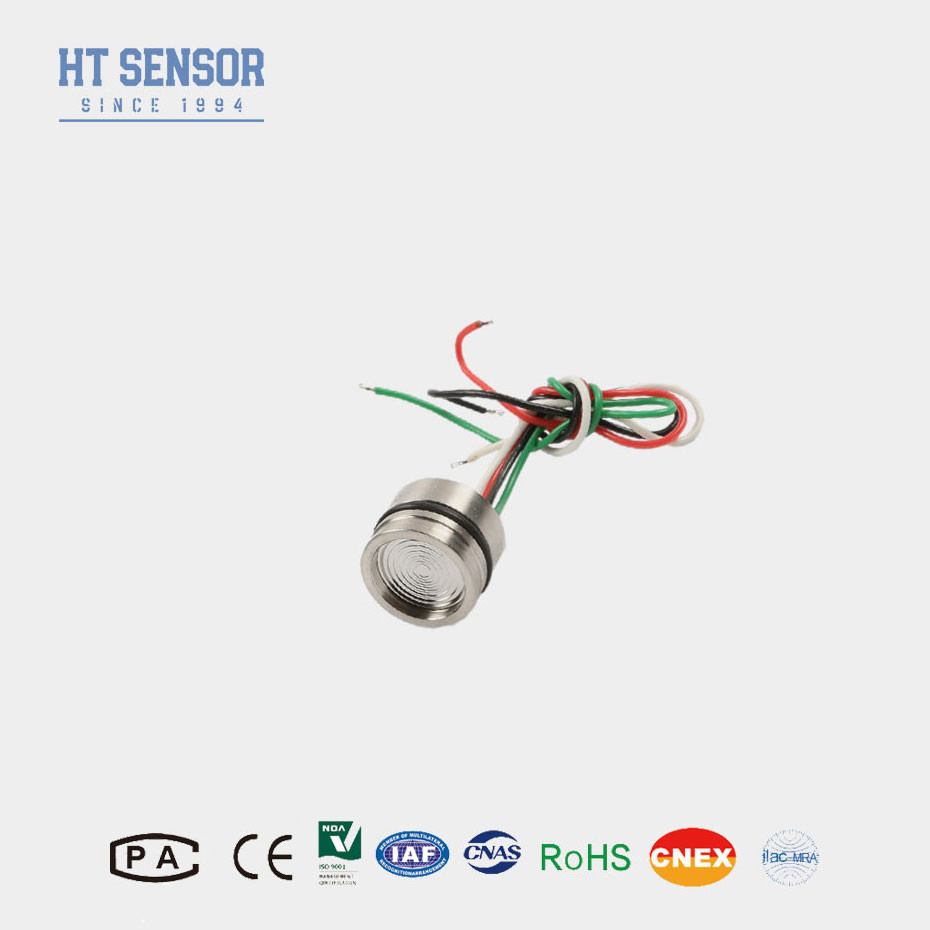

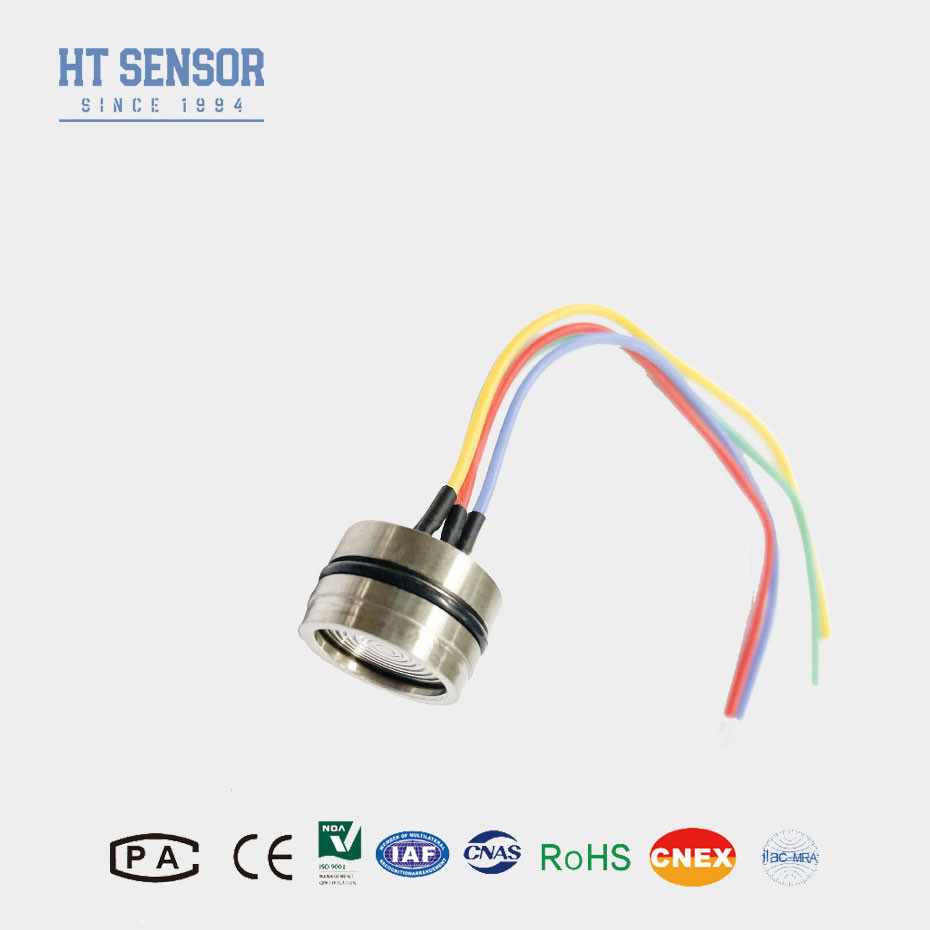

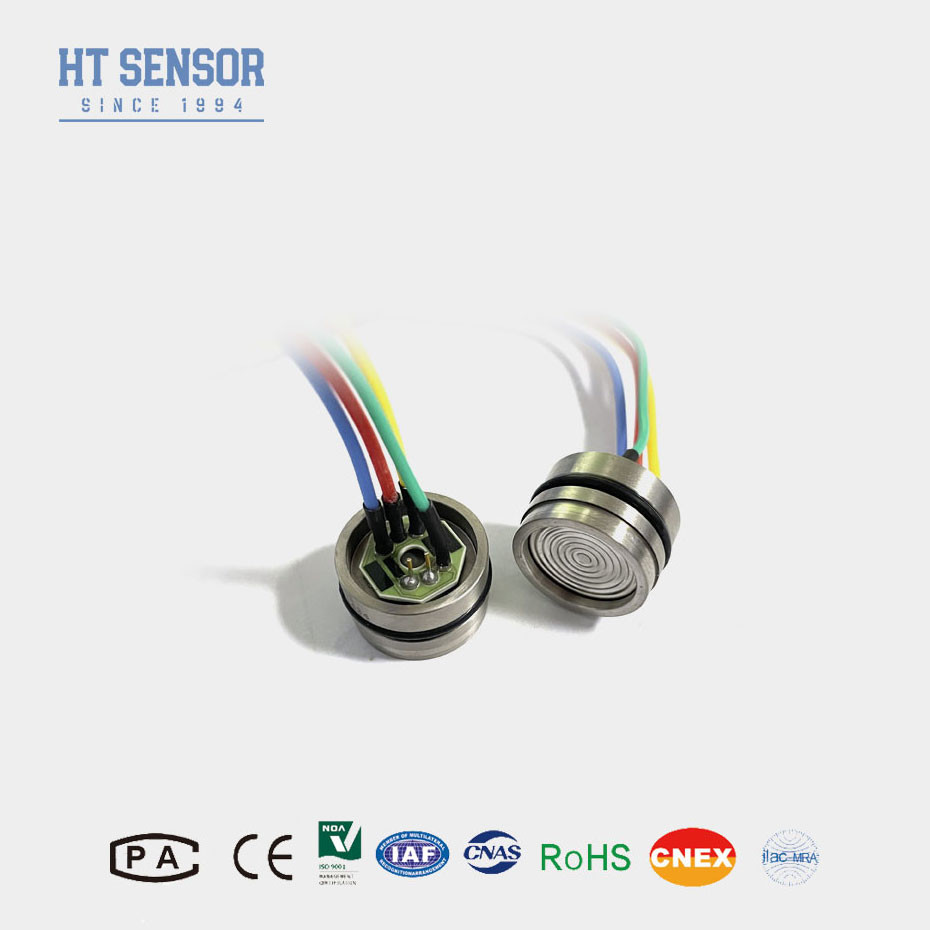

HT19V Piezoresistive Silicon Pressure Sensor
Pengenalan sensor tekanan silikon:
HT19V Paket sensor menggunakan minyak silikon untuk mentransfer tekanan dari diafragma 316L stainless steel ke elemen sensor.Sebuah substrat keramik dilampirkan ke paket yang berisi resistor laser trimmed untuk kompensasi suhu dan koreksi offsetSebuah resistor tambahan yang dilengkapi laser yang dapat digunakan untuk menyesuaikan amplifier diferensial eksternal dan memberikan interchangeability span dalam ± 1%.
Fitur Produkdari sensor tekanan silikon:
1Sirkuit film tebal digunakan untuk kompensasi suhu dan koreksi offset nol.
2Keandalan tinggi, stabilitas yang baik.
3Sumber daya tegangan konstan, output standar.
Aplikasidari sensor tekanan silikon:
1. Cocok untuk mengukur tekanan gas korosif dan cairan, kompatibel dengan 316 l stainless steel
2. Digunakan dalam sistem kontrol proses untuk memantau dan mengendalikan tekanan.
3. Sering digunakan dalam sistem pendingin dan pengukuran tekanan kompresor udara.
Kinerja listrikdari sensor tekanan silikon:
1.Sumber Daya: ≤10VDC
2.Tekanan output modus umum: 50% dari input (biasanya)
3.Impedansi masukan: 4KΩ ~ 20KΩ
4. Output Impedansi:2.5KΩ~6KΩ
5. Koneksi listrik: 100mm kabel suhu tinggi, pita kabel
| Parameter Kinerjadari sensor tekanan silikon:. | ||||||
| Jangkauan pengukuran | Gauge ((G) | 10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000KPa | ||||
| Absolute ((A) | 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA | |||||
| Disegel. | 3500KPaS, 7MPaS, 10MPaS, 20MPaS, 40MPaS, 60MPaS, 100MPaS | |||||
| Jenis | Maksimal | Satuan | ||||
| NonLinearitas | ± 0.15 | ± 0.3 | % F.S | |||
| Kemungkinan diulang | 0.05 | 0.1 | % F.S | |||
| Hysteresis | 0.05 | 0.1 | % F.S | |||
| Zero Offset Output | 0±1 | 0 ± 2 | mV | |||
| Output Skala Penuh | ≤ 20KPa | 50 ± 1 | 50 ± 2 | mV | ||
| ≥35kPa | 100 ± 1 | 100 ± 2 | mV | |||
| Zero Offset Temp. Drift | ≤ 20KPa | ± 1 | ± 2.5 | % F.S | ||
| ≥35kPa | ± 0.8 | ± 1.5 | % F.S | |||
| Skala penuh Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | ||
| ≥35kPa | ± 0.8 | ± 1.5 | % F.S | |||
| Temp Kompensasi. | ≤ 20KPa | 0 ~ 50 | oC | |||
| ≥35kPa | 0 ~ 70 | oC | ||||
| Suhu operasi | -20 ~ 80 | oC | ||||
| Suhu penyimpanan | -40 ~ 125 | oC | ||||
| Beban Terlalu Diizinkan | Ambil nilai yang lebih kecil antara 3 kali skala penuh atau 120MPa | |||||
| Tekanan ledakan | 5X skala penuh | |||||
| Stabilitas jangka panjang | 0.2 % | F.S./Tahun | ||||
| Bahan diafragma | 316L | |||||
| Resistensi Isolasi | ≥ 200MΩ 100VDC | |||||
| Getaran | Tidak ada perubahan dalam kondisi 10gRMS, 20Hz hingga 2000Hz | |||||
| Kejutan | 100 g, 11 ms | |||||
| Waktu Tanggapan | ≤1ms | |||||
| Segel O-ring | Karet nitril atau karet fluoro | |||||
| Penuh Medium | Minyak Silikon | |||||
| Berat badan | ~ 28g | |||||
| Parameter diuji dalam kondisi berikut: 10V @ 25oC | ||||||
| Desain Konstruksidari sensor tekanan silikon | |
| < 3,5 MPaS |  |
| ≥ 3,5 MPaS < 40MPaS |
|
| ≥40MPaS | |
| Koneksi listrik dan kompensasidari sensor tekanan silikon |
|
|
| Contoh Pemilihan |
| Tips pemesanan |
| Pertanyaan dan Jawaban |
.
.
