HT-IQT-B Sensor Tekanan Silikon Suhu Tinggi Untuk Industri Makanan dan Minuman
Product Details
| Model no.: | HT-IQT-B | Jangkauan: | 0-35kpa~3,5Mpa |
|---|---|---|---|
| Jenis kabel: | Pin Kovar berlapis emas atau 4 kawat | Media pengukur: | Udara dan cairan |
| Dia: | 50.4mm | Keluaran: | 100mv+-30mv |
| Kekuatan: | 1,5mA | Jenis: | Sensor Tekanan Silikon yang Difusi |
| Jenis sinyal keluaran: | Analog | Bahan: | baja tahan karat |
| Kustomisasi: | Tersedia | Permintaan yang disesuaikan | ||
| Menyoroti |
Sensor Tekanan Silikon Suhu Tinggi,Sensor Tekanan Silikon HT-IQT-B,Sensor Tekanan Silicon Industri Minuman |
||
Product Description

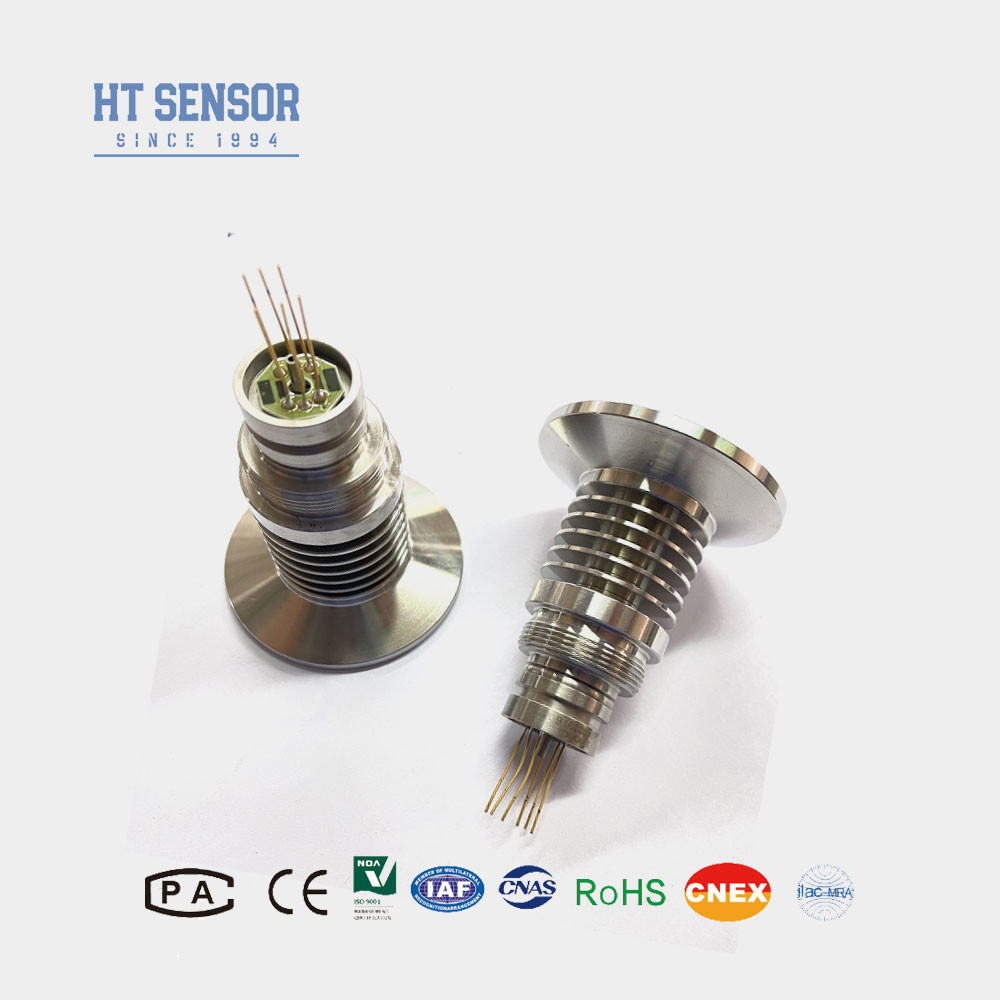

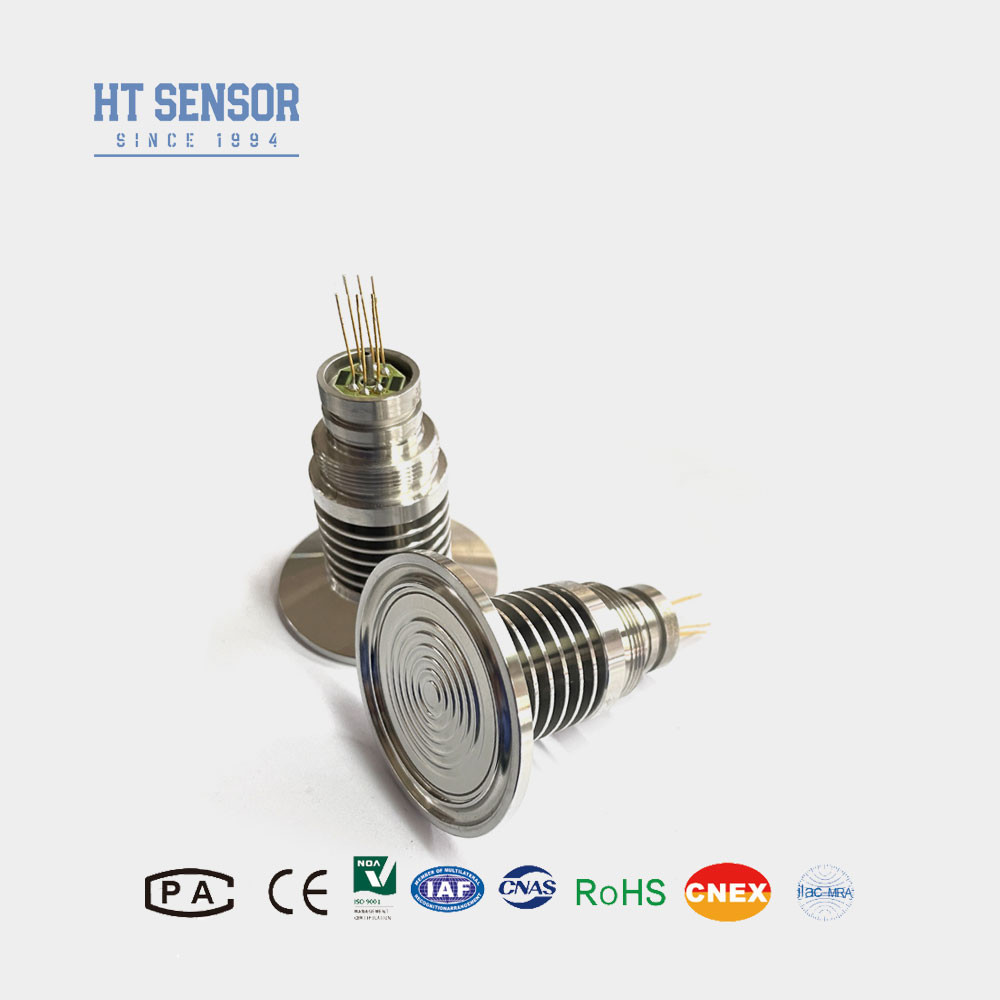

HT-IQT-B Sensor Tekanan Silikon Suhu Tinggi Untuk Industri Makanan dan Minuman
HT-IQT-B PiezoresistiveSilikonSensor Tekanan
Pengenalan sensor tekanan silikon difusi suhu tinggi:
HT-IQT-B adalah sensor tekanan silikon difusi suhu tinggi, sensor tekanan penjepit menggunakan teknologi pengisian minyak silikon sekali pakai.penyumbatan tidak higienis dan perekat. Dengan struktur heat sink, cocok untuk pengukuran media suhu tinggi. Digunakan secara luas dalam industri makanan, farmasi, anggur dan kesehatan lainnya dan media pengukuran mungkin terkontaminasi.
Produk konstruksi dan ukuran khusus dapat disesuaikan. Kami memiliki jalur produksi batch yang matang, dapat menyelesaikan tugas produksi tepat waktu dan berkualitas.
Aplikasidari sensor tekanan silikon difusi suhu tinggi:
- Cocok untuk mengukur tekanan gas dan cairan yang tidak korosif dengan 316LKompatibilitas baja tahan karat
- Industri makanan dan minuman
- Kontrol proses industri
- Industri farmasi
- Sumber Daya: ≤2mA DC (Biasa 1,5mA DC)
- Impedansi masukan: 2.5KΩ~6KΩ
- Impedansi output: 2,5KΩ ~ 6KΩ
- Koneksi Listrik: Pin Kovar berlapis emas atau kabel suhu tinggi 100 mm.
| Parameter Kinerjadari sensor tekanan silikon difusi suhu tinggi: | |||||
| Jangkauan pengukuran | Gauge ((G) | 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000Kpa | |||
| Absolute ((A) | 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA | ||||
| Disegel. | 3500KPaS | ||||
| Jenis | Maksimal | Satuan | |||
| NonLinearitas | ± 0.15 | ± 0.3 | % F.S | ||
| Kemungkinan diulang | 0.05 | 0.1 | % F.S | ||
| Hysteresis | 0.05 | 0.1 | % F.S | ||
| Zero Offset Output | 0±1 | 0 ± 2 | mV | ||
| Output Skala Penuh | ≤ 20KPa | 50 ± 10 | 50 ± 30 | mV | |
| ≥35kPa | 100 ± 10 | 100 ± 30 | mV | ||
| Zero Offset Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | |
| ≥35kPa | ± 0.5 | ± 1 | % F.S | ||
| Skala penuh Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | |
| ≥35kPa | ± 0.5 | ± 1 | % F.S | ||
| Temp Kompensasi. | ≤ 20KPa | 0 ~ 50 | oC | ||
| ≥35kPa | 0 ~ 70 | oC | |||
| Suhu operasi | -20 ~ 80 | oC | |||
| Suhu penyimpanan | -40 ~ 125 | oC | |||
| Beban Terlalu Diizinkan | Ambil nilai yang lebih kecil antara 3 kali skala penuh atau 120MPa | ||||
| Tekanan ledakan | 5X skala penuh | ||||
| Stabilitas jangka panjang | 0.2 % | F.S./Tahun | |||
| Bahan diafragma | 316L | ||||
| Resistensi Isolasi | ≥ 200MΩ 100VDC | ||||
| Getaran | Tidak ada perubahan dalam kondisi 10gRMS, 20Hz hingga 2000Hz | ||||
| Kejutan | 100 g, 11 ms | ||||
| Waktu Tanggapan | ≤1ms | ||||
| Segel O-ring | Karet nitril atau karet fluoro | ||||
| Penuh Medium | Minyak Silikon | ||||
| Berat badan | ~ 220g | ||||
| Parameter diuji dalam kondisi berikut: 1,5mA @ 25°C | |||||
| Desain Konstruksi | |
| Dimensi |
|
| Koneksi listrik dan kompensasi |
|
| Contoh Pemilihan |
| perusahaan |
| FQA |
.
.
