70KPa ~ 70MPa Silicon Pressure Sensor Sensor tekanan piezoresistif
Product Details
| Model NO.: | HT19V | Jenis Benang: | Tidak. |
|---|---|---|---|
| Jenis kabel: | Empat Kawat | Media pengukur: | Gas dan cair |
| Jangkauan: | 0-10kpa~60mpa | Output: | MV |
| Jenis tekanan: | G/A/S | Memasok: | 5-10VDC |
| Kode Hs: | 9026209090 | Menyediakan kemampuan: | 20000pcs/bulan |
| Jenis: | Sensor Tekanan Piezoresistif | Bahan: | Baja tahan karat |
| Pengaturan khusus: | Tersedia OEM dan ODM | ||
| Menyoroti |
Sensor Tekanan Silikon 70MPa,Sensor Tekanan Silikon Piezoresistif,Sensor Tekanan Silikon 70KPa |
||
Product Description

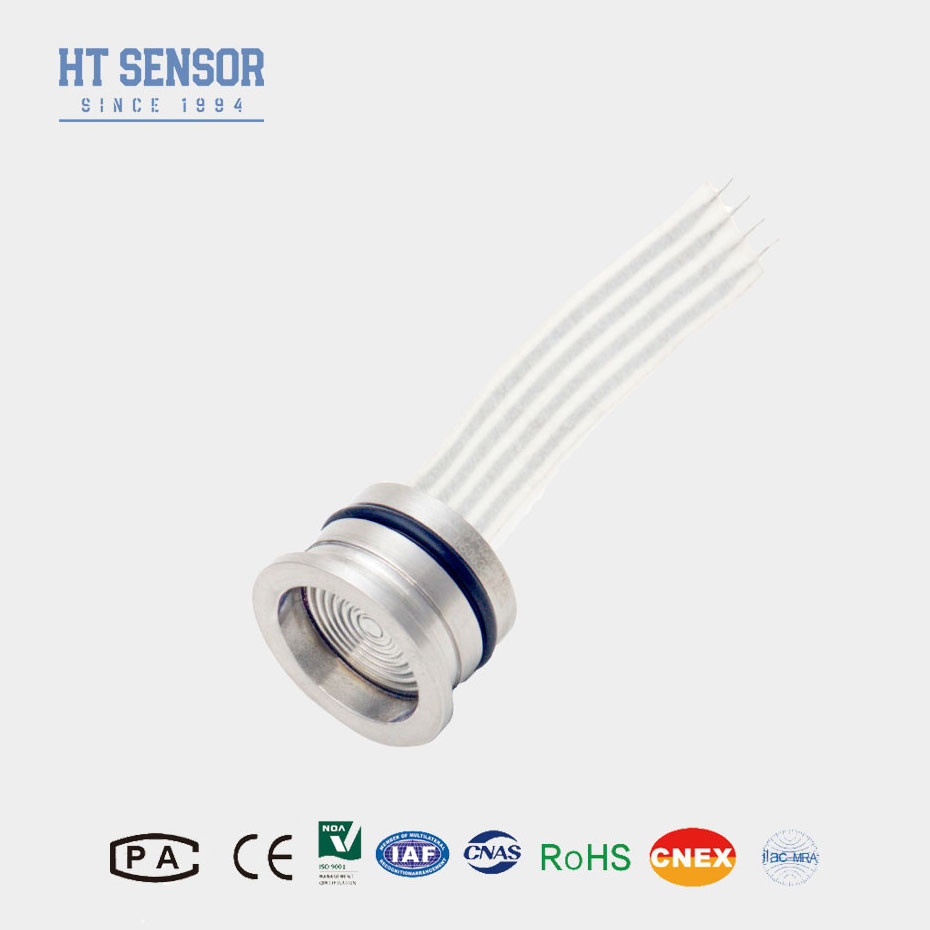

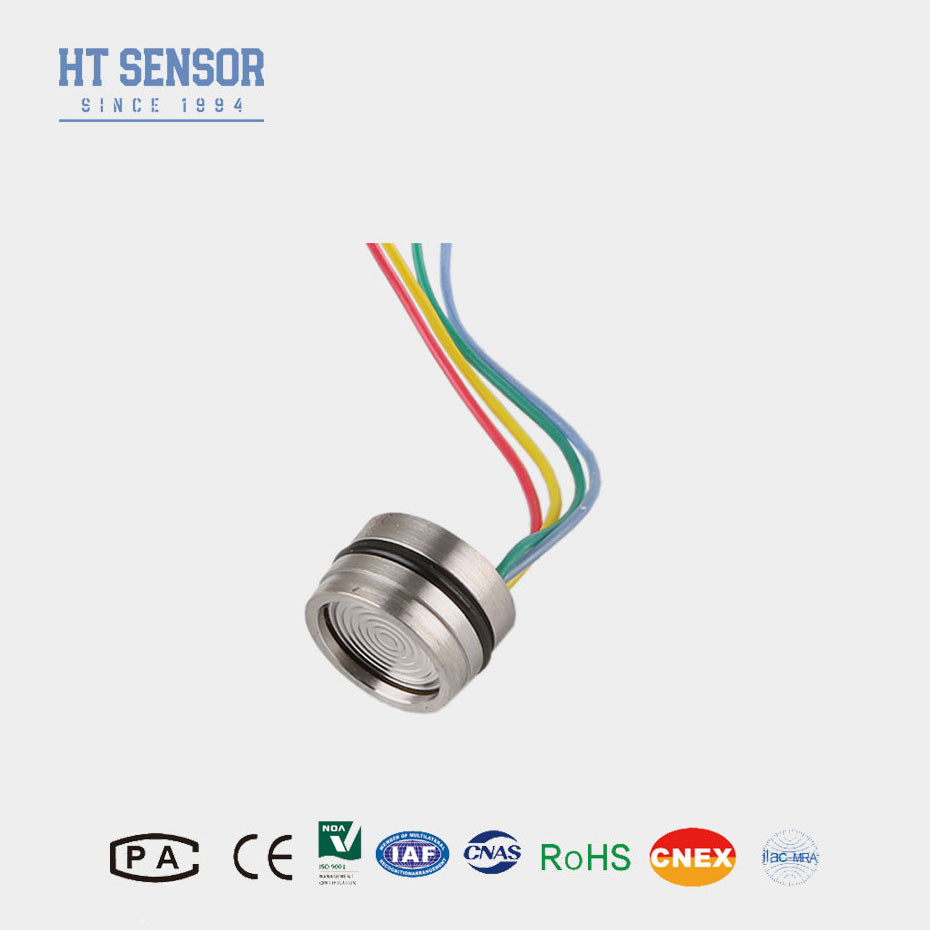

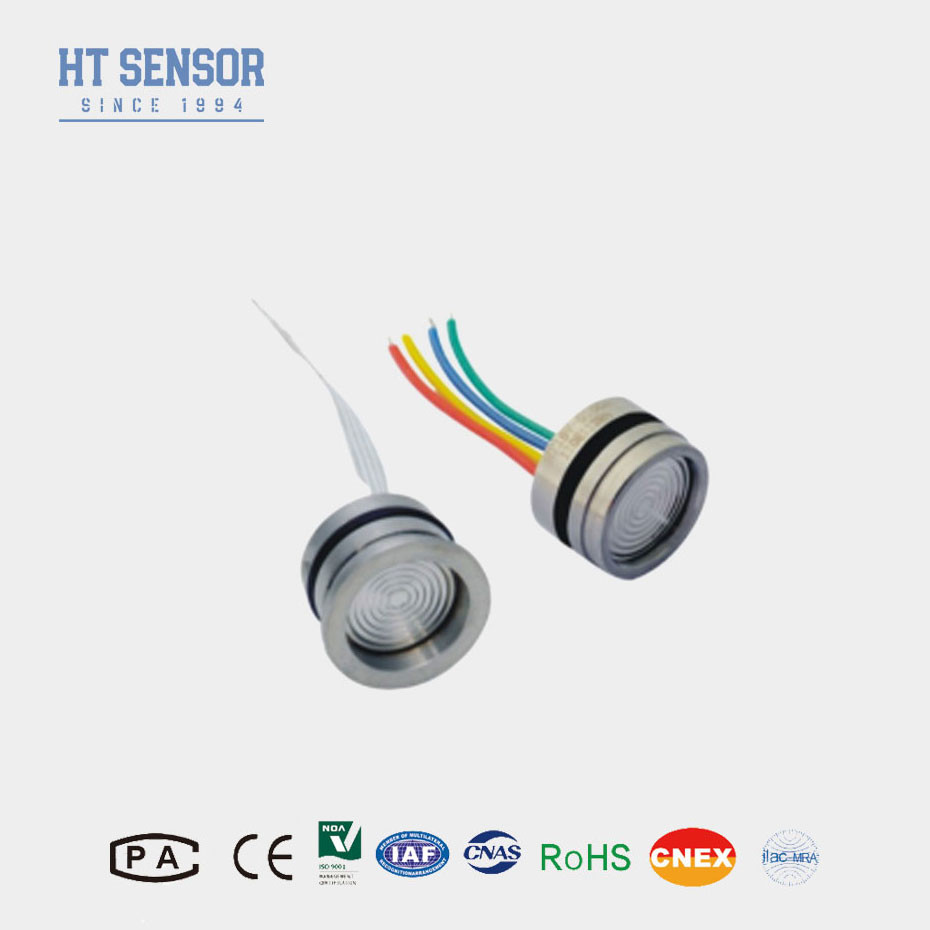

HT19V Piezoresistive Silicon Pressure Sensor
Pengenalan sensor tekanan silikon:
Inti dari sensor tekanan piezoresistif silikon HT19 adalah elemen silikon difusi yang sangat stabil.sensor tekanan silikon piezoresistif dikemas dalam karung baja tahan karat 316LHT26 dikompensasi ditawarkan dalam paket las atau dengan berbagai fittings berujung seperti 1/4 dan 1/8NPT, 1/4BSP serta fittings proses kustom.
Fitur ProdukdariSensor Tekanan Silikon Piezoresistif
• Dapat dipasang dengan segel O-ring
• Permukaan basah dari baja tahan karat
• Diperkuat
• Kalibrasi ASIC
• Pengukur mutlak yang tertutup
• Pilihan kabel
• Output analog
• SENT Output Opsional (hubungi pabrik untuk rincian)
Aplikasidari sensor tekanan silikon:
1. Cocok untuk mengukur tekanan gas korosif dan cairan, kompatibel dengan 316 l stainless steel
2. Digunakan dalam sistem kontrol proses untuk memantau dan mengendalikan tekanan.
3. Sering digunakan dalam sistem pendingin dan pengukuran tekanan kompresor udara.
Kinerja listrikdari sensor tekanan silikon:
1.Sumber Daya: ≤10VDC
2.Tekanan output modus umum: 50% dari input (biasanya)
3.Impedansi masukan: 4KΩ ~ 20KΩ
4. Output Impedansi:2.5KΩ~6KΩ
5. Koneksi listrik: 100mm kabel suhu tinggi, pita kabel
| Parameter Kinerjadari sensor tekanan silikon:. | ||||||
| Jangkauan pengukuran | Gauge ((G) | 10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000KPa | ||||
| Absolute ((A) | 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA | |||||
| Disegel. | 3500KPaS, 7MPaS, 10MPaS, 20MPaS, 40MPaS, 60MPaS, 100MPaS | |||||
| Jenis | Maksimal | Satuan | ||||
| NonLinearitas | ± 0.15 | ± 0.3 | % F.S | |||
| Kemungkinan diulang | 0.05 | 0.1 | % F.S | |||
| Hysteresis | 0.05 | 0.1 | % F.S | |||
| Zero Offset Output | 0±1 | 0 ± 2 | mV | |||
| Output Skala Penuh | ≤ 20KPa | 50 ± 1 | 50 ± 2 | mV | ||
| ≥35kPa | 100 ± 1 | 100 ± 2 | mV | |||
| Zero Offset Temp. Drift | ≤ 20KPa | ± 1 | ± 2.5 | % F.S | ||
| ≥35kPa | ± 0.8 | ± 1.5 | % F.S | |||
| Skala penuh Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | ||
| ≥35kPa | ± 0.8 | ± 1.5 | % F.S | |||
| Temp Kompensasi. | ≤ 20KPa | 0 ~ 50 | oC | |||
| ≥35kPa | 0 ~ 70 | oC | ||||
| Suhu operasi | -20 ~ 80 | oC | ||||
| Suhu penyimpanan | -40 ~ 125 | oC | ||||
| Beban Terlalu Diizinkan | Ambil nilai yang lebih kecil antara 3 kali skala penuh atau 120MPa | |||||
| Tekanan ledakan | 5X skala penuh | |||||
| Stabilitas jangka panjang | 0.2 % | F.S./Tahun | ||||
| Bahan diafragma | 316L | |||||
| Resistensi Isolasi | ≥ 200MΩ 100VDC | |||||
| Getaran | Tidak ada perubahan dalam kondisi 10gRMS, 20Hz hingga 2000Hz | |||||
| Kejutan | 100 g, 11 ms | |||||
| Waktu Tanggapan | ≤1ms | |||||
| Segel O-ring | Karet nitril atau karet fluoro | |||||
| Penuh Medium | Minyak Silikon | |||||
| Berat badan | ~ 28g | |||||
| Parameter diuji dalam kondisi berikut: 10V @ 25oC | ||||||
| Desain Konstruksidari sensor tekanan silikon | |
| < 3,5 MPaS |  |
| ≥ 3,5 MPaS < 40MPaS |
|
| ≥40MPaS | |
| Koneksi listrik dan kompensasidari sensor tekanan silikon |
|
|
| Contoh Pemilihan |
