2 Switch Display Gauge Structure Gauge digital industri dengan alarm tinggi / rendah dan tinggi / tinggi
Product Details
| Model NO.: | BPK-IV | Aplikasi: | Industri |
|---|---|---|---|
| Struktur: | Pengukur Tampilan | Paket Pengangkutan: | Pengemasan Ekspor Standar dengan Karton |
| Asal usul: | Baoji, Tiongkok | Jaminan: | 2 tahun |
| Rentang pengukuran: | Industri bertekanan sedang | MENGALIHKAN: | 2 saklar |
| Menyoroti |
Struktur Tampilan Pengukur Digital Industri,2 Switch Industrial Digital Gauges |
||
Product Description
Deskripsi Produk
Pengukur digital industri dengan saklar alarm tinggi/rendah dan tinggi/tinggi-tinggi

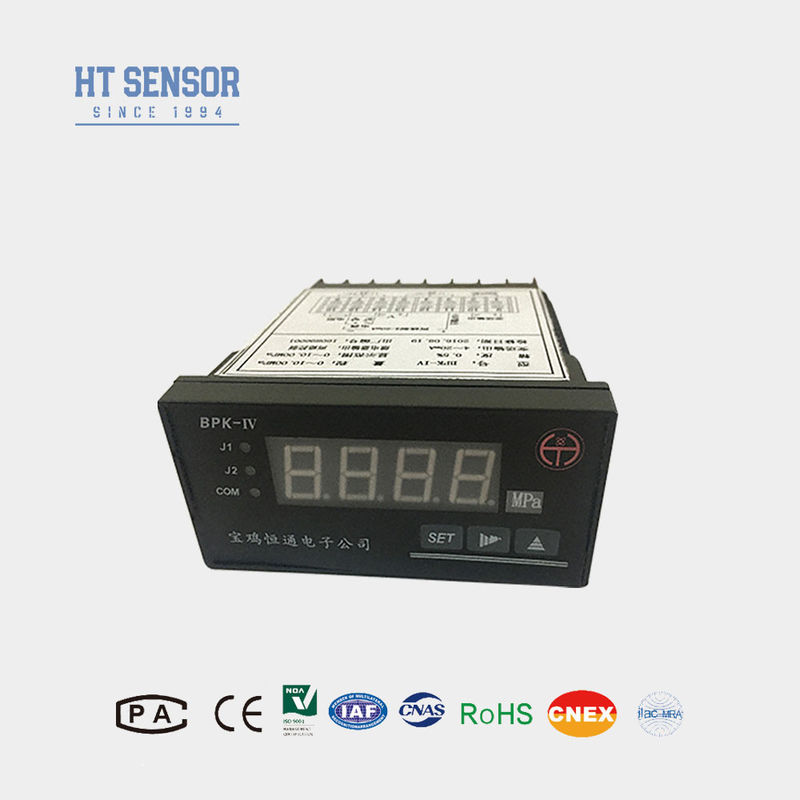

BPK-IV Pressure Gauge/Switch
Pengantar:
1. Berbagai RTDS, termokopel atau sinyal input standar dapat dipilih (lihat tabel).
2Output transmisi terisolasi adalah resolusi 12 bit.
3. Dua output relay, dapat diatur tinggi/rendah, tinggi/tinggi-tinggi atau rendah/rendah-rendah jenis tindakan alarm.
Spesifikasi
1. Tegangan pasokan:220VAC /24VDC(±10%);
2. suhu lingkungan: 0 ~ 50oC; kelembaban relatif: ≤ 85% Gas tidak korosif;
3. Sinyal masukan, ruang lingkup tampilan dan parameter yang relevan: (lihat Tabel1)
Tabel 1
| Kode sinyal masukan | Sinyal masukan | Jangkauan Tampilan | Resolusi | Keakuratan | Impedansi masukan |
| 00 | T TC | 0 ~ 400oC | 1oC | 00,2% | 100 ribu |
| 01 | R TC | 0~1600oC | 1oC | 00,2% | 100 ribu |
| 02 | J TC | 0 ~ 1200oC | 1oC | 00,2% | 100 ribu |
| 03 | WRe3-WRe25 TC | 0 ~ 2300oC | 1oC | 00,2% | 100 ribu |
| 04 | B TC | 350 ~ 1800oC | 1oC | 00,2% | 100 ribu |
| 05 | S TC | 0~1600oC | 1oC | 00,2% | 100 ribu |
| 06 | K TC | 0~1300oC | 1oC | 00,2% | 100 ribu |
| 07 | E TC | 0 ~ 900oC | 1oC | 00,2% | 100 ribu |
| 08 | Pt100 RTD | -200 ~ 600,0oC | 0.1oC | 00,2% | (0,2mA) |
| 09 | Cu50 RTD | -50,0 ~ 150,0oC | 0.1oC | 00,2% | (0,2mA) |
| 10 | 0~375Ω tekanan jarak jauh | Batas cakupan rendah dan tinggi dapat ditetapkan dari -1999 sampai 9999 | Jangkauan tampilan adalah terus menerus dari -1999 sampai 9999 menggunakan sampel A/D 16bit | 00,2% | (0,2mA) |
| 11 | 0 ~ 75mV pemisah arus | 00,1% | 100 ribu | ||
| 12 | 0 ~ 30mV | 00,1% | 100 ribu | ||
| 13 | Sinyal standar 0 ~ 5V | 00,1% | 100 ribu | ||
| 14 | Sinyal standar 1 ~ 5V | 00,1% | 100 ribu | ||
| 15 | 0~10V sinyal standar | 00,1% | 100 ribu | ||
| 16 | 0 ~ 10 mA sinyal standar | 00,1% | 20Ω | ||
| 17 | Sinyal standar 0 ~ 20 mA | 00,1% | 20Ω | ||
| 18 | Sinyal standar 4 ~ 20 mA | 00,1% | 20Ω |
Tabel 2
| Transmisi sinyal output | Output saat ini | Ruang lingkup pengiriman | Tegangan terisolasi | Max. Apa yang terjadi? resolusi |
Keakuratan | Kapasitas beban | Tegangan sirkuit terbuka |
| 00 | 4 ~ 20 mA | Mengirim data dalam jangkauan ke sinyal arus standar | 1500V | 12 bit | 00,3% | ≤ 500Ω | 15V |
| 01 | 0 ~ 20mA |
Produk ini hanya diproduksi dalam sinyal arus output 4 ~ 20mA atau 0 ~ 20mA. Jika pengguna membutuhkan output transmisi sinyal output tegangan,itu dapat disesuaikan dari produsen atau sendiri terhubung 250 atau 500 ohm resistor untuk 1 ~ 5V atau 0 ~ 5V, 0 ~ 10V tegangan dan resistansi (catatan: akurasi resistansi secara langsung mempengaruhi akurasi tegangan output transmisi).
5.Relay kapasitas kontak output:(lihat Tabel 3)
Tabel 3
| 250V/120V | 120V/48V | < 48V | Waktu hidup relay | ||||
| AC | DC | AC | DC | AC | DC | >100000 kali |
|
| Maks. arus (Resisi beban) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Maks. arus (Intuksi beban) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A | |
6. Dandaya eksternal DC24V/30mABisa memasok daya ke pemancar.
7. denganfungsi kompensasi suhu otomatisuntukSensor termokopel.
8. denganfungsi perlindungan pemutusan.

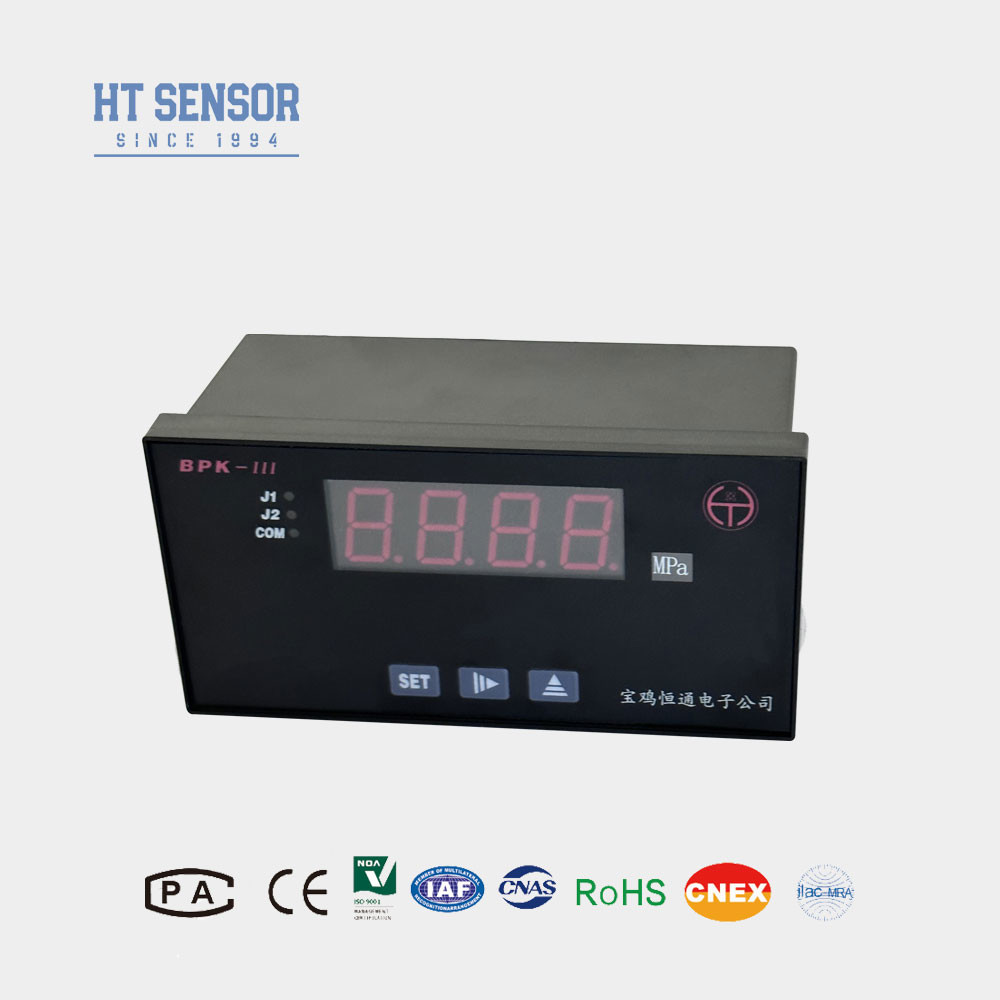

| Model | Dimensi garis besar | Dimensi output panel ((mm) | Catatan |
| BPK-IIIS1 | 160×80×80 ((Horizontal)) | 152+0.8× 76+0.7 | |
| BPK-IV | 96×48×112 (horisontal) | 92+0.7×44+0.5 | |
| BPK-IIIN1 | 80×160×80 ((vertikal) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112 ((vertikal) | 44+0.5×92+0.7 | |
| BPK-IIIF1 | 96×96×112 (seperempat) | 92+0.7×92+0.7 | |
| BPK-IIIF2 | 48×48×108 (seperempat) | 44+0.5×44+0.5 | Dengan lampu alarm J2 tanpa relay J2 |
| BPK-IIIF3 | 72×72×112 | 67+0.7× 67+0.7 |
| perusahaan |
