HT26V Sensor Tekanan Silikon untuk Aplikasi Energi dan Hidrologi Metallurgi Kimia Petroleum
Product Details
| Bahan: | 316L | Rentang Min: | 10kPa |
|---|---|---|---|
| Rentang Maks: | 40Mpa | Memasok: | 1,5mA |
| Output: | Tegangan 100mA+2mA | Dapat dipilih: | Kawat silikon empat warna atau pin berlapis emas |
| Model: | HT26V | Minyak: | silikon difusi |
| Kekuatan: | 10VDC | ||
| Menyoroti |
Sensor Tekanan Silicon Hidrologi,Sensor Tekanan Silikon Metalurgi,Sensor Tekanan Silikon Kimia Petroleum |
||
Product Description

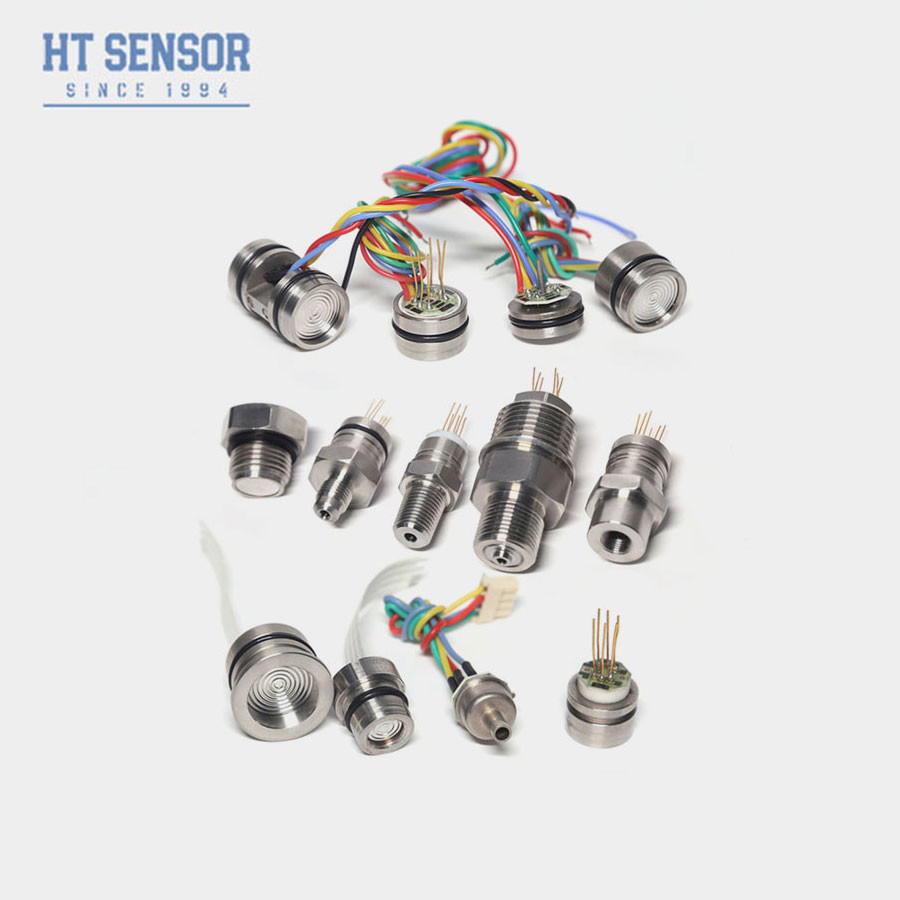

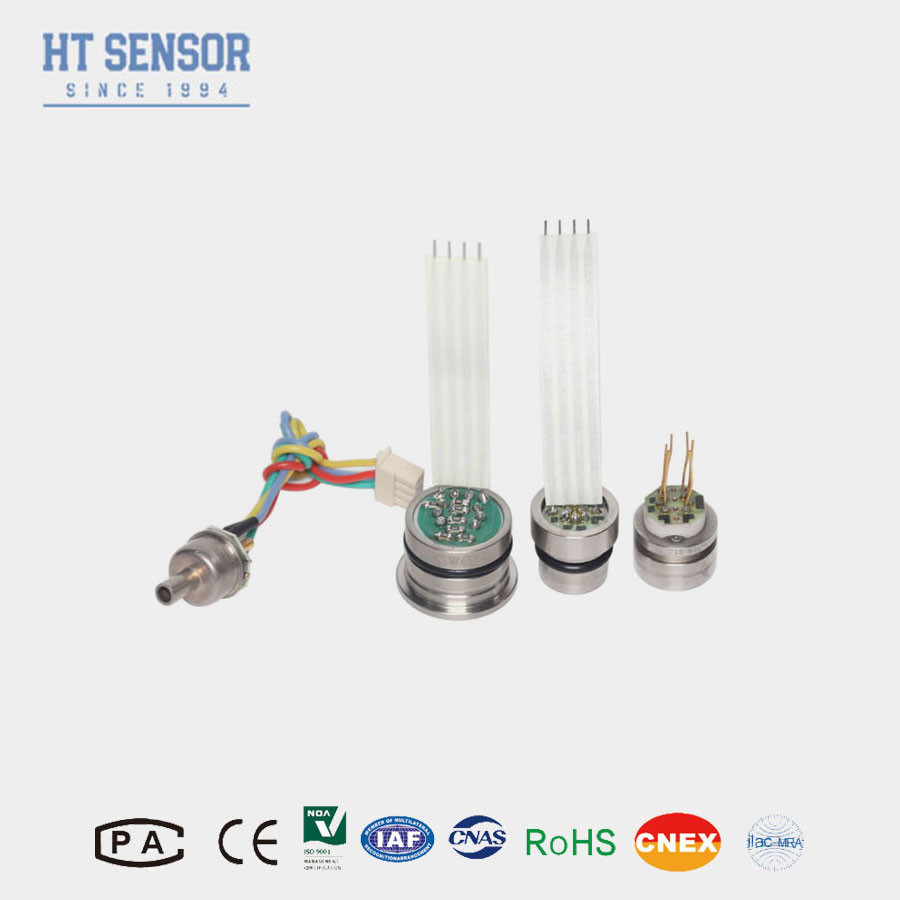

HT26V Diffused Silicon Pressure Sensor Piezoresistive Pressure Sensor
Pengenalan sensor tekanan silikon:
HT26V adalah chip silikon piezoresistif sensitif tinggi yang dibangun sebagai elemen sensor tekanan. Tekanan ditransmisikan melalui pengisi minyak.Diafragma pemisah hulu benar-benar mengisolasi chip tekanan dari media yang akan diukur. itu mudah dipasang.
Sumber daya tegangan konstan 10V, output 100mv, kompensasi suhu luas, penyesuaian resistensi laser, stabilitas yang baik, keandalan tinggi
Fitur produk darisensor tekanan silikon:
1Menggunakan teknologi canggih dan 316L stainless steel housing
2Keandalan yang luar biasa, repeatability, dan stabilitas
3. Tinggi 7mm, dapat disesuaikan
Aplikasidari sensor tekanan silikon:
1. Cocok untuk mengukur gas tidak korosif dan tekanan cairan dengan kompatibilitas 316L stainless steel
2. Digunakan di berbagai situs proses industri, termasuk minyak bumi, kimia, metalurgi, tenaga, dan hidrologi
3. Digunakan dalam industri kapal dan penerbangan
4.Cocok untuk sistem kontrol hidrolik dan pneumatik
Data listrik dari sensor tekanan silikon
Supply:10VDC Input impedansi:3KΩ~6KΩ
Impedansi output:2.5KΩ~6KΩ Resistensi isolasi:≥100MΩ/50VDC
Tegangan isolasi: 500VAC antara rumah dan koneksi listrik tidak akan menyebabkan kerusakan
Medium kompatibel: cair, gas kompatibel dengan 316L stainless steel
Spesifikasi kinerja dari sensor tekanan silikon
| Parameter kinerja: | ||||||
| Jangkauan pengukuran | Gauge ((G) | 10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000KPa | ||||
| Absolute ((A) | 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA | |||||
| Disegel. | 3500KPaS,7MPaS,10MPaS | |||||
| Jenis | Maksimal | Satuan | ||||
| Linearitas | ± 0.15 | ± 0.3 | % F.S | |||
| Kemungkinan diulang | 0.05 | 0.1 | % F.S | |||
| Hysteresis | 0.05 | 0.1 | % F.S | |||
| Zero Offset Output | 0±1 | 0 ± 2 | mV | |||
| Output Skala Penuh | ≤ 20KPa | 50 ± 1 | 50 ± 2 | mV | ||
| ≥35kPa | 100 ± 1 | 100 ± 2 | mV | |||
| Zero Offset Temp. Drift | ≤ 20KPa | ± 1 | ± 2.5 | % F.S | ||
| ≥35kPa | ± 0.8 | ± 1.5 | % F.S | |||
| Skala penuh Temp. Drift | ≤ 20KPa | ± 1 | ± 2 | % F.S | ||
| ≥35kPa | ± 0.8 | ± 1.5 | % F.S | |||
| Temp Kompensasi. | ≤ 20KPa | 0 ¢ 50 | °C | |||
| ≥35kPa | 0 ¢ 70 | °C | ||||
| Suhu operasi | -20 ¢80 | °C | ||||
| Suhu penyimpanan | -40 ¢125 | °C | ||||
| Beban Terlalu Diizinkan | 3 kali skala penuh | |||||
| Tekanan ledakan | 5X skala penuh | |||||
| Stabilitas jangka panjang | 0.2 % | F.S./Tahun | ||||
| Bahan diafragma | 316L | |||||
| Resistensi Isolasi | ≥ 200MΩ 100VDC | |||||
| Getaran | Tidak ada perubahan dalam kondisi 10gRMS, 20Hz hingga 2000Hz | |||||
| Kejutan | 100 g, 11 ms | |||||
| Waktu Tanggapan | ≤1ms | |||||
| Segel O-ring | Karet nitril atau karet fluoro | |||||
| Penuh Medium | Minyak Silikon | |||||
| Berat badan | 25g | |||||
| Parameter diuji dalam kondisi berikut: Tegangan konstan 10V dan suhu lingkungan 25°C | ||||||
