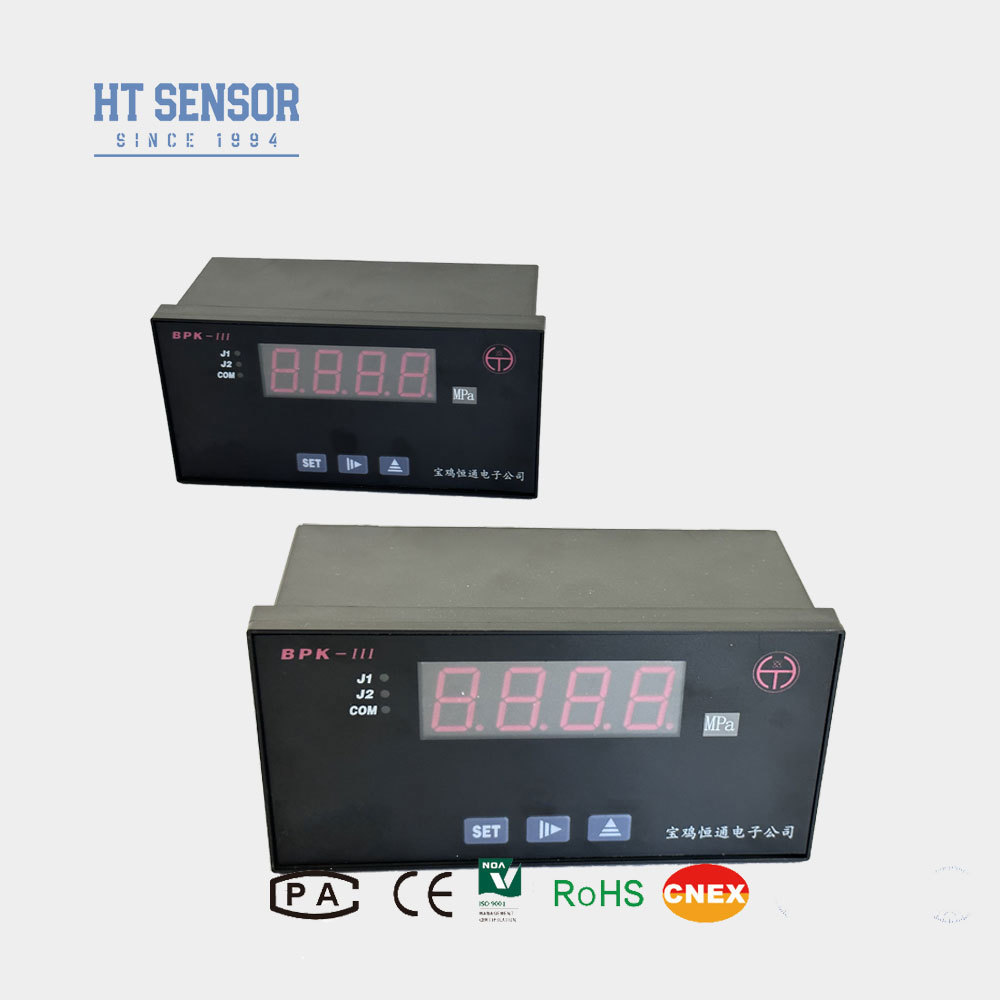

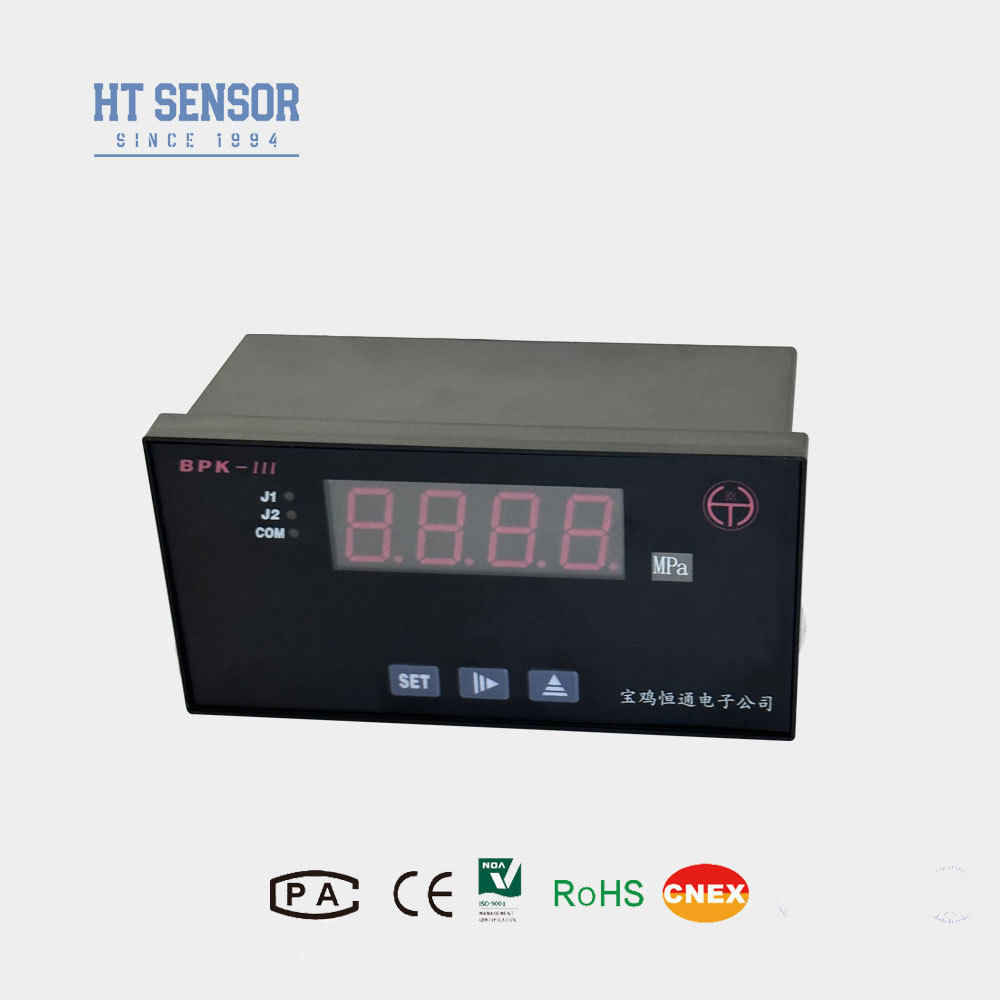

BPK-III Pengukur Tampilan Tekanan Input Multi Tipe Pengukur Suhu Sakelar Instrumen Tampilan
Product Details
| Model TIDAK.: | BPK-IIIN | Rentang Pengukuran: | Pengukur Tekanan Menengah |
|---|---|---|---|
| Keluaran: | 4-20mA /0-20mA | Mengalihkan: | 2 SAKLAR PIONT |
| Masukan: | PT100. 4-20mA DAN SETERUSNYA | Tegangan suplai: | 220VAC /24VDC(±10%) |
| Maks Saat Ini: | 3A (beban resistif), 0,3A (beban induktif) | Dimensi panel: | 152+0.8×76+0.7 (BPK-IIIS) |
| Menyoroti |
BPK-III alat pengukur tekanan,saklar pengukur suhu dengan garansi,input sensor tekanan silikon |
||
Product Description
- Berbagai RTD, termokopel, atau pilihan sinyal input standar tersedia
- Kalibrasi cakupan tampilan untuk sinyal nonlinier dan kemampuan pengaturan untuk sinyal linier
- Output pemancar terisolasi dengan resolusi 12 bit dan cakupan yang dapat disesuaikan
- Dua output relay yang dapat dikonfigurasi untuk tipe tindakan alarm tinggi/rendah, tinggi/tinggi-tinggi atau rendah/rendah-rendah
- Tegangan pasokan: 220VAC / 24VDC (± 10%)
- Suhu lingkungan: 0~50°C
- Kelembaban relatif: ≤85% lingkungan gas tidak korosif
| Kode sinyal masukan | Sinyal Masuk | Jangkauan Tampilan | Resolusi | Keakuratan | Impedansi Masuk |
|---|---|---|---|---|---|
| 00 | T TC | 0~400°C | 1°C | 00,2% | 100 ribu |
| 01 | R TC | 0~1600°C | 1°C | 00,2% | 100 ribu |
| 02 | J TC | 0~1200°C | 1°C | 00,2% | 100 ribu |
| 03 | WRe3-WRe25 TC | 0~2300°C | 1°C | 00,2% | 100 ribu |
| 04 | B TC | 350~1800°C | 1°C | 00,2% | 100 ribu |
| 05 | S TC | 0~1600°C | 1°C | 00,2% | 100 ribu |
| 06 | K TC | 0~1300°C | 1°C | 00,2% | 100 ribu |
| 07 | E TC | 0~900°C | 1°C | 00,2% | 100 ribu |
| 08 | Pt100 RTD | -200 ~ 600,0 °C | 0.1°C | 00,2% | (0,2mA) |
| 09 | Cu50 RTD | -50,0 ~ 150,0 °C | 0.1°C | 00,2% | (0,2mA) |
| 10 | 0~375Ω tekanan jarak jauh | Batas cakupan rendah dan tinggi dapat ditetapkan dari -1999 sampai 9999 | Jangkauan tampilan adalah terus menerus dari -1999 sampai 9999 menggunakan sampel A/D 16bit | 00,2% | (0,2mA) |
| 11 | 0~75mV pembagi arus | 00,1% | 100 ribu | ||
| 12 | 0 ~ 30mV | 00,1% | 100 ribu | ||
| 13 | Sinyal standar 0 ~ 5V | 00,1% | 100 ribu | ||
| 14 | Sinyal standar 1 ~ 5V | 00,1% | 100 ribu | ||
| 15 | Sinyal standar 0 ~ 10V | 00,1% | 100 ribu | ||
| 16 | 0 ~ 10 mA sinyal standar | 00,1% | 20Ω | ||
| 17 | Sinyal standar 0 ~ 20 mA | 00,1% | 20Ω | ||
| 18 | Sinyal standar 4 ~ 20 mA | 00,1% | 20Ω |
| Menerjemahkan sinyal output | Output saat ini | Ruang Lingkup Pengiriman | Tegangan Terisolasi | Resolusi maksimal | Keakuratan | Kapasitas Beban | Tegangan sirkuit terbuka |
|---|---|---|---|---|---|---|---|
| 00 | 4 ~ 20 mA | Mengirim data dalam jangkauan ke sinyal arus standar | 1500V | 12 bit | 00,3% | ≤ 500Ω | 15V |
| 01 | 0 ~ 20mA |
| Tegangan | AC | DC | AC | DC | AC | DC | Kehidupan Relay |
|---|---|---|---|---|---|---|---|
| 250V/120V | 120V/48V | < 48V | >100000 kali | ||||
| Maks. arus (Resisi beban) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Max. arus (Intuksi beban) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A |
- Kemampuan pasokan listrik eksternal DC24V/30mA untuk pemancar
- Fungsi kompensasi suhu otomatis untuk sensor termokopel
- Fungsi perlindungan pemutusan
| Model | Dimensi garis besar | Dimensi output panel (mm) | Catatan |
|---|---|---|---|
| BPK-IIIS1 | 160×80×80 (Horizontal) | 152 + 0,8 × 76 + 0.7 | |
| BPK-IIIS2 | 96×48×112 (Horizontal) | 92 + 0,7 × 44 + 0.5 | |
| BPK-IIIN1 | 80×160×80 (vertikal) | 76 + 0,7 × 152 + 0.8 | |
| BPK-IIIN2 | 48×96×112 (vertikal) | 44 + 0,5 × 92 + 0.7 | |
| BPK-IIIF1 | 96×96×112 (Lembar) | 92 + 0,7 x 92 + 0.7 | |
| BPK-IIIF2 | 48×48×108 (Lembar) | 44 + 0,5 × 44 + 0.5 | Dengan lampu alarm J2 tanpa relay J2 |
| BPK-IIIF3 | 72×72×112 | 67 + 0,7 × 67 + 0.7 |
